| Prod Model: |
hydraulic flange |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standards: |
DIN, ANSI, GB, SAE |
| Color: |
Yellow or White |
| Standard: |
ISO /SAE Jic |
| Material: |
Medium Carbon Steel |
| Connection: |
Flange |
Product Description

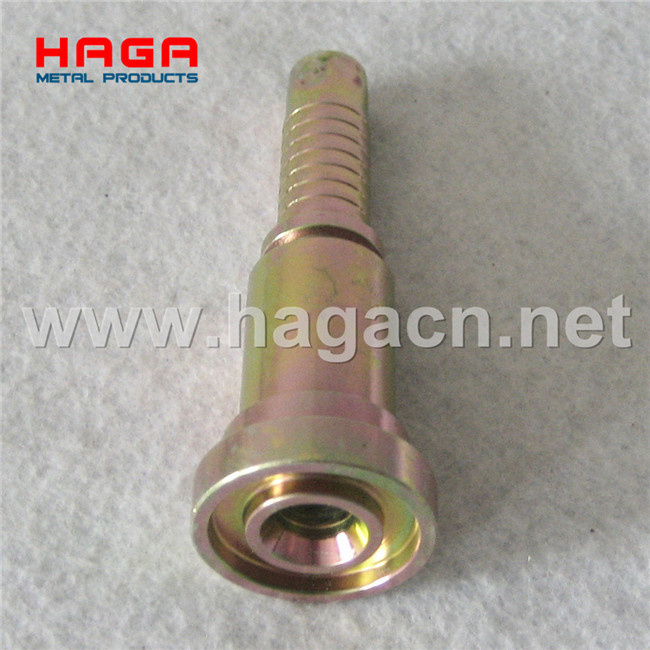

SAE Flange 3000psi Interlock Hydraulic Flanges
Material: Carbon Steel, Stainless Steel
Product Type: Straight, 45Degree, 90Degree
Size: From 1/2" to 2"
Any request please contact us for catalogue.
|
| HOSE BORE |
|
| DIMENSIONS |
|
|
| PART NO. | FLANGE SIZE | DN | DASH |
| C | D | L |
| 87313-08-08 | 1/2" | 12 | 08 |
| 30.2 | 23.9 | 7 |
| 87313-12-12 | 3/4" | 20 | 12 |
| 38.1 | 31.7 | 7 |
| 87313-16-16 | 1" | 25 | 16 |
| 44.4 | 38 | 8.2 |
| 87313-20-20 | 1.1/4" | 32 | 20 |
| 50.8 | 43.2 | 8.2 |
| 87313-24-24 | 1.1/2" | 40 | 24 |
| 60.3 | 50.3 | 8.2 |
| 87313-32-32 | 2" | 50 | 32 |
| 71.4 | 62.2 | 9.8 |
Ningbo HAGA Industries Co., Ltd /Ningbo HAGA Metal Products Co., Ltd is specialized in pipeline industry. Our products are widely used in the connecting of industrial hose and pipe from low to high pressure. We can develop and produce products according to international standards. We also supply metal parts which are made by investment casting, gravity casting, die casting, sand casting, forging, stamping and machining.
With strong technical support and advanced production equipments, we accept ODM and OEM requests. Wellcome to send samples or drawing for checking price and quality. There are profestional advanced production lines and test centers for products which can be made from stainless steel, aluminum, brass, steel and even plastic material according to different standards.
After long term cooperation, we are providing high quality products and service for customers from all over the world. We hope to support you to be stronger and do better in your market.
