| Prod Model: |
steel crank shaft |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
SAE8620 Steel Crank Shaft |
| Processing: |
Forging |
| Size: |
1000-5000mm |
| Load: |
Revolution Axis |
| Stiffness & Flexibility: |
Flexible Shaft |
| Axis Shape: |
Straight Shaft |
| Shaft Shape: |
Real Axis |
Product Description

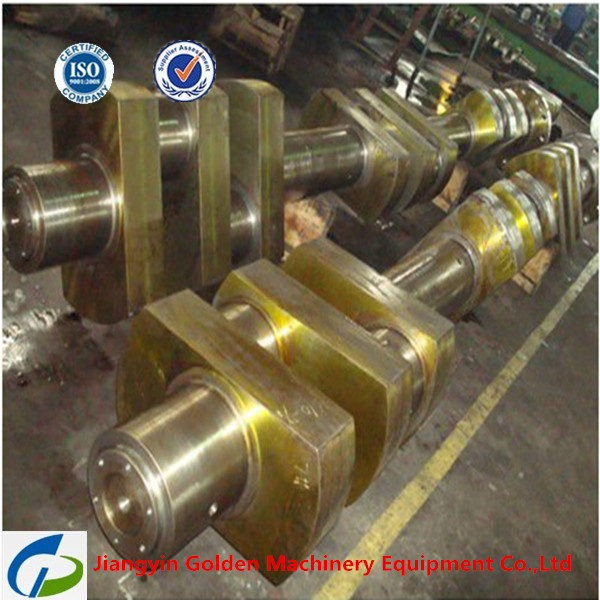

Name:sae8620/4140 Forged steel crank shaft
Material: 40Cr,45#,42CrMo,40CrNiMo,etc
1. Process: EAF + LF + VD + Forged + Heat Treatment (optional)
2. Delivery condition:Hot forged +Rough machined (black surface after Q/T)+ Turned (optional)
3. Technical Data: Chemical Composition, Physical Properties and Mechanical Testing.
4. Test: Ultrasonic test according to SEP 1921-84 3C/c.
5. Standard: GB, AISI, ASTM, DIN, JIS, BS, etc.
6. Quality Management Certification: ISO 9001:2008.
7. Note: We can only handle forged products.We don't supply rolled steel products.
| Product Name | Specification(mm) | Main Materials |
| 1045 forged steel shaft | Dia:Φ80mm~Φ1000mm
Weight≤18T
Length≤12000mm | 40Cr,45#,42CrMo,
40CrNiMo,etc |
If you are concerned about 1045 forged steel shaft, maybe you will be interested in the following products:
| Product Name | Specification(mm) | Material |
| Forged Round Bar | OD:Φ200-Φ1000
Weight≤18T
Length≤12000mm | 18CrNiMo7-6,
42CrMo,34CrNi3Mo,
35CrMo,4330V |
| Forged Hollow Bar | OD:Φ200-Φ1000
Weight≤18T
Length≤9500mm | 18CrNiMo7-6,
42CrMo,34CrNi3Mo,
35CrMo,4330V |
| Forged Module | Width≤1000mm | H13,
5CrNiMo,
5CrMnMo,etc |
| Forged Shaft | DiameterΦ80-Φ1000
Length≤12000mm
Weight≤18T | 40Cr,45#,
42CrMo,
40CrNiMo,etc |
| Forged Roller | Diameter≤Φ1000mm | 86CrMoV7,
9Cr2Mo,
MC3,MC5,etc |
| Forged Ring&Disc | OD≤Φ1500mm
Thickness≤500mm | 20CrNi2Mo,
40Cr,42CrMo,
21CrNiMoV47,etc |
FAQ:
Q:What kind of work does your company do?
A:Our company is a professional manufacturer.We mainly produces forged rollers,forged shafts,round bars,casting iron pipe module and various types of forging pieces fully in accordance with customers' requirement.
Q:What are the advantages of your company?
A: We are a factory and we have ten years' experiences in manufacturing.We have many professional technical personnel.And we have more competitive prices and better after-sales service than trading companies.
Q:How do you control the quality?
A:Our company is certificated to ISO9001:2008.We have many inspectors and every product will have been tested for 4-5 processes.We welcome customers or the third party inspection agencies to come to our factory for inspection.
Q:What about your price?
A:Our price is very competitive because we are a factory.Please contact us if you are interested in our products.
Q:How long is your delivery time?
A:Different products have different delivery time.The products will be delivered as soon as possible on the basis of the quality assurance.Usually the delivery time is within two months.
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
Forging weight is from 50 kg to 20 ton. Many kinds of materials, free size.
Smelting Process: EF+LF + VD+VC The process as follow: Ingot → Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection → Rough machining→ UT → 2th Heat treatment → Finishing machining → Inspection
Applications: The heavy forging: Forged ring, shaft, roller, flange, or gear is widely used for various industries For example: Metallurgy, mining, power station and so on.
Specifications:
Description
The heavy forging: Forged ring, shaft, roller, flange, or gear
Material
Alloy steel or stainless steel
Material standard
ASTM or GB/T3077-1999
Specification
As per specified requirements
Weight
Max. 250 ton
Smelting Process:
EF+LF + VD+VC
Process
Ingot→ Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection
→ Rough machining→ UT → 2ND Heat treatment → Finishing machining → Inspection
UT standard
EN10228, ASTM A388 or JB/T 5000.15-1998
Competitive Advantage:
The heavy forging is manufactured by large scale stated enterprise. Advanced technical process from smelting steel to forging and heat treat guarantees the product quality. Closed relationship with several famous stated enterprises guarantee "in-time delivery" and competitive price.
Excellent product quality and service, competitive price, "in-time" delivery
