| Prod Model: |
Goulds 3196 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pump Casing Delivery Time: 30days: |
Material : Steel , Alloy Steel, Iron and So on |
| Dimension : Based On The Drawing: |
Machining : CNC Machining |
| Certificate: ISO 9001 ,BV: |
Package: Single Package Then in to The Carton |
| Type: |
Clay Dry Sand |
Product Description
Product Description

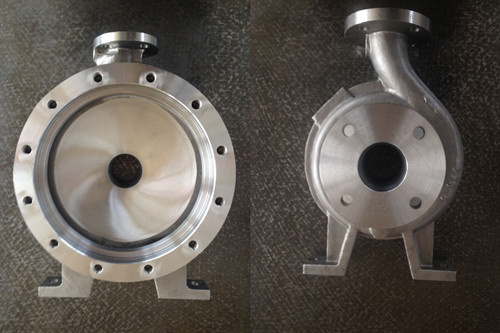

Centrifugal Pump casing
Product features as below:
1. Application: Cenrtifugal pumps used in oil ,water , mining and other industries
2. Material: Alloy steel , stainless steel ,iron ,bronze ,etc.
3. Main process: Mould - Castings- Shot blasting -Heat treatment - machining -testing - packaging
1. Certificate: ISO9001: 2008; BV certificate 2. Products range: Goulds pump casing 3. Model: Please tell us the model you need 4. Machining equipment: CNC, Lathe machine, Milling machine, Drilling machine, and so on; 5. Test equipment: Optical Spectrum Analyzer, CMM, Hardness test equipment, Tensile test machine, PT ; 6. Surface treatment: Powder coating, Painting, Sand blasting. Machining:

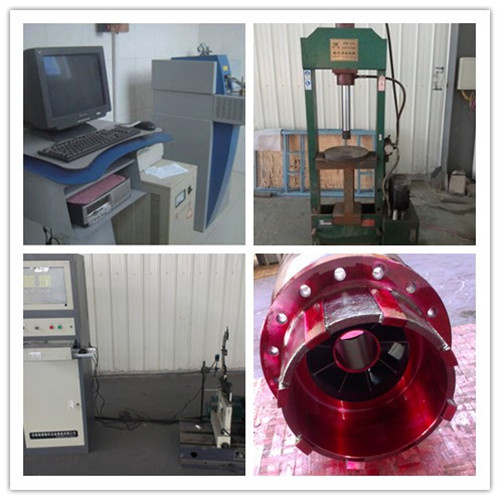

Testing :
| PROCESS | MATERIAL | STANDARD |
SAND
CASTING | Green Sand | Grey Iron, Ductile Iron, Malleable Iron, Stanless Steel, Carbon, Steel, Aluminium, Brass, Bronze | ASTM
BS
JIS
DIN
etc |
| Furan Resin Sand |
| Cold Harden Resin Sand |
INVESTMENT
CASTING | Sodium Silicone (Water galss) | Stainless Steel, Carbon Steel, Special Alloy Steel Bronze, Brass, Aluminum |
| Silica Sol |
| FORGING | Hammer Forging | Stainless Steel, Carbon Steel, Alloy Streel, Brass, Aluminum |
| Die Forging |
| Roll Forging |
| STAMPING MACHINING | STAMPING MACHINING | All metal material |
| Packing Methods |
| Small part, single packed then put into paper carton then to crate. |
| 1. Generally use poly wooden crates for package. |
| Minimum poly wooden board thickness: 20mm |
| Steel band: 19× 0.5mm or 15× 0.5mm |
| Common crate size is less than 1200X1000X1000mm |
| 2. For the very big part, use welding steel crate. The size and steel thickness is according to the product dimension and weight. |
| 3. Large size and large quantity part, put into container directly. |
| 4. We also consider customers' special needs foCentrifugal Pump volute casing |
Please kindly send us the drawings which is great help for us,thanks. Contact information :Contact person :Maggie Liu Add:No. 7 Zhangzhou road ,Zibo ,Shandong , China
Tel: 0086-533-3583820/2833533
Fax: 0086-533-3583950
Web: www.zltgroup.com
Mobile: 86 18369906394
Our foundry is specilized in producing the pump components such as casing, impeller, bowls, shaft and other pump spare parts meanwhile we provide customers' designed pumping solutions for any pumping requirment.
We also specialize in manufacturing the highest quality castings, all kinds of machinery parts with many material such as stainless steel, carbon steel, alloy steel, iron etc by sand casting, investment casting and lost foam process according to customers' drawings or samples.

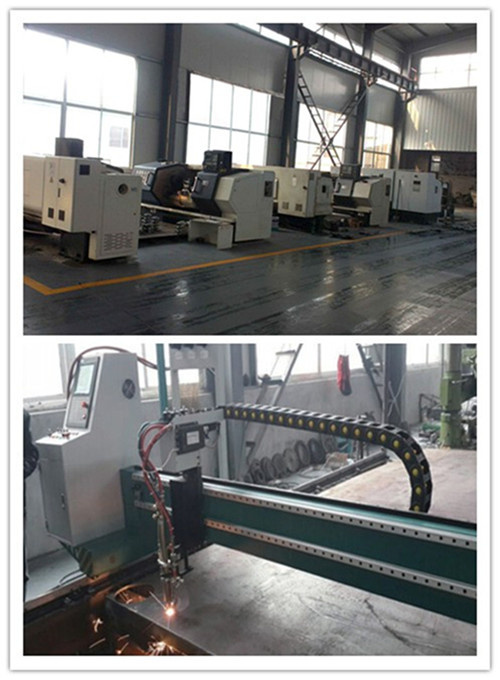

We can make the parts final machining by our own machining shop with many advanced equipments like CNC lathe, CNC cutting machinery, miller and others controlled by experienced workers. We execuit the strict inspection by many kinds of accurate inspection tools.
We have our own trading company--Zlt International Trade Co., Ltd with the principle of high quality, perfect service and sincere integrity, on this condition, we have got very good fame from our customers who come from Germany, USA, Canada, Sweden, Israel, Hungary, Mexico, Guyana, etc
Welcome to visit our foundry in Zibo city, Shandong Province, China!
