| Prod Model: |
WF-JF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Sand Casting |
| Supply: |
Drawing Design |
| Quality Control: |
100% Inspected |
| Shape: |
All Kinds of CNC Machining Parts |
| Advantages: |
Delivery on Time, According to The Demand for Mat |
| Delivery: |
Within 20 Days After Receiving Last Confirm Inform |
| Brand Name: |
Customized |
| Shipping Port: |
Qingdao Port |
| Type: |
Clay Dry Sand |
| Application: |
Fitness Equipment |
Product Description

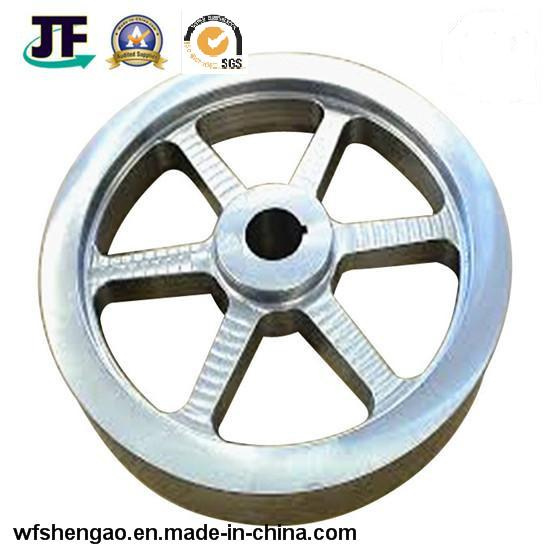

Sand Casting Grey Iron/Cast Iron Flywheel for Magnetic Exercise Bike
Specifications
) Material: ductile iron/ grey iron
2) Weight: 0.1KG-300KG
3) Make products exactly according to your samples or drawings
4) OEM service is available
5) Very rigorous quality control
6) Customized products: different types
7) Process: sand casting
8) Surface treatment: painting, plating,polishing,power coating etc.
9) Cast iron flywheel
Sand Casting & Foundry
1. Ductile Iron Castings:
Molding process: Resin sand/Green Sand
Material: EN-GJS-400-15/EN-GJS-500-7/EN-GJS-600-3/EN-GJS-700-2
Molding: Hand molding/Molding machine Z145/146/148/Molding line.
Possible Heat Treatment: Annealing
Industry involved: Municipal Construction / Fluid
/Automotive
Part unit weight range: 0.5kg-2000kgs
Max/Min wall thickness requirements: 4mm-250mm
Manufacturer Certification: ISO9001(2000)/ TS16949
2. Grey iron castings:
1) molding process: Green sand/Resin sand
2) Material: EN-GJL-150/DIN 1691 GG-15, EN-GJL-200/DIN 1691-GG20, EN-GJL-250/DIN1691-GG25
, EN-GJL-300/DIN1691-GG30
3) Molding: Hand molding/ Molding machine Z145/146/148/Molding line.
4) Industry involved: Municipal industry/Construction Fluid industry/Automotive industry
5) Part unit weight range: 0.5kg-2000kgs
6) Max/Min wall thickness requirements: 4mm
7) Manufacturer Certification: ISO9001(2000)/ TS16949
Our products have been exported to Japan, Unite States, South Korea and Europe for almost seven years.
Our leading products are a variety of models and specification of ball valves, pipe fitting's parts, meters'parts, flow meters' parts, surface treatment and so on.
We can support sample avaliable and we have OEM manufacture exprience for seven years.
Service Principles: Cheap, Efficient and Customer-oriented
Advantages:
1 Over 7 years factory experience
2 High quality control, Competitive price, Fast delivery
3 Small quantity acceptable
4 Sample and drawing available
5 OEM workable
6 One-stop service
Materials Available:
1. Stainless Steel: SS201, SS303, SS304, SS316 etc.
2. Carbon Steel: AISI 1045, 9SMnPb28 etc
3. Brass: C36000 (C26800), C37700 (HPb59), C38500(HPb58), C27200(CuZn37), C28000(CuZn40) etc.
4. Bronze: C51000, C52100, C54400, etc.
5. Iron: Grey iron and ductile iron
6. Aluminum: 6061, 6063, 7075, 5052 etc.
How to order:
* You send us drawing or sample
* We carry through project assessment
* We give you a design
* You think the design is ok
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30% deposit
* We start to make the product
Processing Method:
Cnc machining, turning, milling, drilling, grinding, broaching, welding and assembly.
Packgage:
Suitable for sea and air transportation or as required
| feature | - TS 16949 certified
- 3 sets automatic moulding lines, flask size from 450x400 till 850x700
- 15 units of induction furnaces ranges from 1 ton/hour till 5 ton/hour
- 15 units CNC machining cernters for further machining process
- Spectrum + metalloscope |
| annual casting capacity | 40,000tons |
| unit weight of casting | from 0.1kg/pc till 120kg/pc |
| material spec. | various grade nodular cast iron and grey cast iron |
| we are currently casting | - Grey cast iron types: EN-GJL-150, GJL-200, GJL-250, GJL-300, GJL-350, GG15, GG20, GG23, GG25, GG30
- Nodular/Ductile cast iron types: EN-GJS-400-18-LT, GJS-500-7, GJS-600-3, GJS-700-2, GJS-800-2, GGG40, GGG40.3, GGG50, GGG60, GGG70, GGG70, GGG80, GGG90
-Austempered ductile iron: ADI 800-10, ADI 900-8, ADI1050-6 , ADI1200-3, ADI 1400-1 |
Q: Why choose Shengao product?
A: We shengao have our own plant-- Weifang Shengao machinery Co., Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.
Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.
Q: Do you provide customized flywheel?
A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.
Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.
If there's anything we can help, please feel free to contact with us.
WeiFang Shengao Machinery Co., Ltd is located in WeiFang the famous city in China and the world center of kites. It is 140 kilometers far away from Qingdao port, the transporation is very convenient. Our company use the location advantages of ShanDong province to integrate resources so that we can processing according to the drawings of customers. We mainly undertake the casting parts, machined parts and other products. Our Import and Export Department have many years experiences of foreign trade, products are mainly exported to the United States, Denmark, Italy, Russia, Australia etc.
Over the years, company adhere to the guideline for management of "Quality first, Reputation first, Delivery just-in-time, Price best". We will try our best to improve the technical level and perfect the enterprise management. Our company will depend on superior quality of products and sincere service to cooperate with dometic and overseas, new and old customers and establish eternal friendship to create a bright future.
