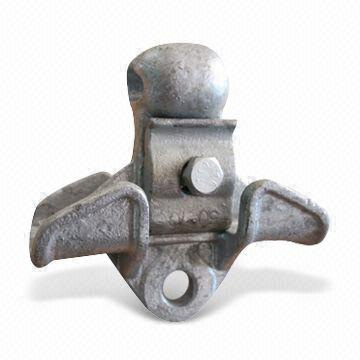

Sand Casting Power Fitting

Name: Sand Casting Power Fitting
Brand: china-castingforging.com
SKU: 669366742
Availability: InStock
Rating: 4.9 (105 reviews)

Price:	Negotiable
Trade Terms:	CIF
Min Order:	1/Ton
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Qingdao Donrex Co., Ltd.

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Molding Technics:	Gravity Casting
Casting Method:	Sand Casting

Product Description

We offer both green sand castings and resin sand casings in both ferrous and non-ferrous materials.

Perhaps the most common green sand castings would be made from either grey iron or ductile iron. We can supply these castings from approximately 0.1Kg to approximately 15000 Kg and up to 6000mm x 2500mm x 2000mm in size for the largest part. Molding methods range from floor hand molding, jolt squeezer lines and automatic molding lines. With this variety of molding methods we are able to accommodate the weight, size and quantity the customer requires.

Steel sand castings are available both as green sand castings and resin sand castings, and are available in plain carbon, low alloy and stainless steels. In the category of sand castings the smallest available part would be approximately 2Kg while the largest would be approximately 20 tons for sand casting and 5 tons for resin sand casting. Steel castings smaller than the 2Kg range would be made as a water glass casting (see Investment Castings ).

Non-ferrous sand castings are also available. The molding process used is green sand and we can accommodate requests for castings weighing from 0.5 Kg to 100 Kg. The alloys that are available include copper base and aluminum base alloys.

Please check the technical specification sheet for all materials available.

First article layouts and spectrometer material certifications are provided with all first article samples. Specialized inspection reports can be done per customer request.
A variety of secondary operations can be performed on both types of sand castings. They include heat treatment, machining, plating, painting, polishing and buffing, assembly services and even custom packaging.

Gray lron

Standard-Spec.No.&Class			T.S. σb≥ N/mm 2	Hardness HB≤	Note:(1)Test Bar θ=30mm (2)Chemieal composition and other requirement can be established upon written agreement between manufacturer and purchaser. (3)The hardness values are for castings of 15~30mm thickness.
GB China/ISO	JIS JAPAN	ASTM U.S.A.	T.S. σb≥ N/mm 2	Hardness HB≤
HT200/200	FC200	CI.30	200	223
HT250/250	FC250	CI.35	250	241
HT300/300	FC300	CI.40	300	262
HT350/350	FC350	CI.50	350	277

Ductile lron

Standard-Spec.No&Class			T.S. σb≥ N/mm 2	Y.S. σs≥%	EL δ≥	For Reference		Note: (1)Separately cast test bars machined to φ 14mm from 25mm keel blocks; (2)Same as above note(2)
GB China	JIS Japan	ASTM A536 U.S.A.	T.S. σb≥ N/mm 2	Y.S. σs≥%	EL δ≥	Hardness HB	Micor-structure
QT400-18	FCD400-18	60-40-18	400	250	18	130-180	Ferrite(F)
QT450-10	FCD450-10		450	310	10	160-210	(F)
QT500-7	FCD500-7	65-45-12	500	320	7	170-230	(F)+Pearlite(P)
QT600-3	FCD600-3	80-55-06	600	370	3	190-270	(P)+(F)
QT700-2	FCD700-2	100-70-03	700	480	2	225-305	(P)
QT800-2	FCD800-2	100-70-03	800	480	3	245-335	(P)or tempered structure

Plain Carbon Cast Steel

Standard-Spec.No.& Grade			Chemical Composition≤%			Mechanical Properties≥				NOTE:(1)S,P≤0.04% (2)C,Mn%can also be agreed upon by manufacturer and purchaser. (3)Heat Treat:Normalize(N)+Temper(T) or Quench(Q)+T,selected by Foundry
GB China	JIS Japan	ASTM U.S.A.	C	Si	Mn	T.S. σb N/mm 2	Y.S. σs N/mm 2	EL δ%	R.A. ψ%
ZG200-400	SC420	A27 60-30	0.2	0.5	0.8	400	200	25	40
ZG230-450	SC450	65-35	0.3		0.9	450	230	22	32
ZG270-500	SC480	70-40	0.4			500	270	18	25
ZG340-640	SCC3B	A148 80-50	0.6	0.6		640	240	10	18

Aluminum-base Cast Alloy

Standard-Spec.No.				Chemical Composition%							Condition	Mechanical Properties≥
GB China	Code China	JIS Japan	Alcoa (ASTM)	Si	Cu	Mg	Mn	Ti	Ni	Al	Condition	T.S. σb N/mm 2	Hard ness HB	EL σ%
ZAISi7Mg	ZL 101	AC4C	356 (SG70A)	6.5-7.5		0.25-0.45				Bala nce	F T6	155 220	50 70	2 1
ZAISi9Mg	ZL 104	AC4A	360	8.0-10.5		0.17-0.30	0.2-0.5				T6	220	70	2
ZAISi5Cu1 Mg	ZL 105	AC4D	355 (SC51A)	4.5-5.5	1.0-1.5	0.4-0.6					T6	220	70	0.5
ZAISi12Cu 11Mg1Ni1	ZL 109	AC8A	A132	11.0-13.0	0.5-1.5	0.8-1.3			0.8-1.5		T6	240	100
ZAICu5Mu	ZL 201				4.5-5.3		0.60-1.0	0.15-0.35			T5	330	90	4
ZAIMg5Si1	ZL 303			0.8-1.3		4.5-5.5	0.1-0.4				F	145	55	1

Note:(1) F-as cast;T5-Solution treat+artifical aging;T6-Solution treat+over aging

Copper-base Cast Alloy

Standard-Spec.No.			Chemical Composition%					Mechanical Properties≥
GB China	JIS Japan	ASTM U.S.A	Sn	Zn	Pb	Si	Cu	T.S.σb N/mm 2	Y.S. σ%	EL HBW	Hard ness
ZCuSn5Pb5Zn5	BC6	C83600	4.0-6.0	4.0-6.0	4.0-6.0		Balance	200	90	13	60
ZCuSn10Zn2	BC3	C90500	9.0-11.0	1.0-3.0			Balance	240	120	12	70
ZCuZn16Si4	SZBC3	C87800		Balance		2.5-4.5	79.5-81.0	390		20	100
ZCuZn40Pb2		C85700		Balance	0.5-2.5		58.0-63.0	220	120	15	80

Qingdao Donrex Co., Ltd. was established in 2001, located in Qingdao which has a important international port of China.

We are one of the leading manufacturer group of casting, stamping, forging, extrusion forming, welding, fine blanking and CNC machining services for various parts of electric appliances, telecomminucation, automotive, marine, aero, construction and other engineering industry.

We provide our customers the best-engineered solutions, low cost tooling, high quality manufacturing and rapid delivery.

We handle all the projects with quality first in mind and under strictly quality control flows through precise inspection and testing equipments and production control system to achieve the small, medium and large volume production, meanwhile, all the works are based on OEM / ODM, confidentiality and reliability.

Our buyers hail from 30 countries and regions including Europe, North America, Southeast Asia, Middle East and Australia. We sell big quantity of high quality products worth more than $10 million annually.

A lot of things may change, but our commitment to professionalism, quality and customer service won't. Contact Donrex today to begin saving time and cost.
