| Prod Model: |
sand casting 46 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Molding Process: |
Resin Sand/Green Sand |
| Molding: |
Hand Molding/Molding Machine Z145/146/148/Molding |
| Possible Heat Treatment: |
Annealing |
| Part Unit Weight Range: |
0. 5kg-2000kgs |
| Max/Min Wall Thickness Requirements: |
4mm-250mm |
| Type: |
Clay Dry Sand |
Product Description

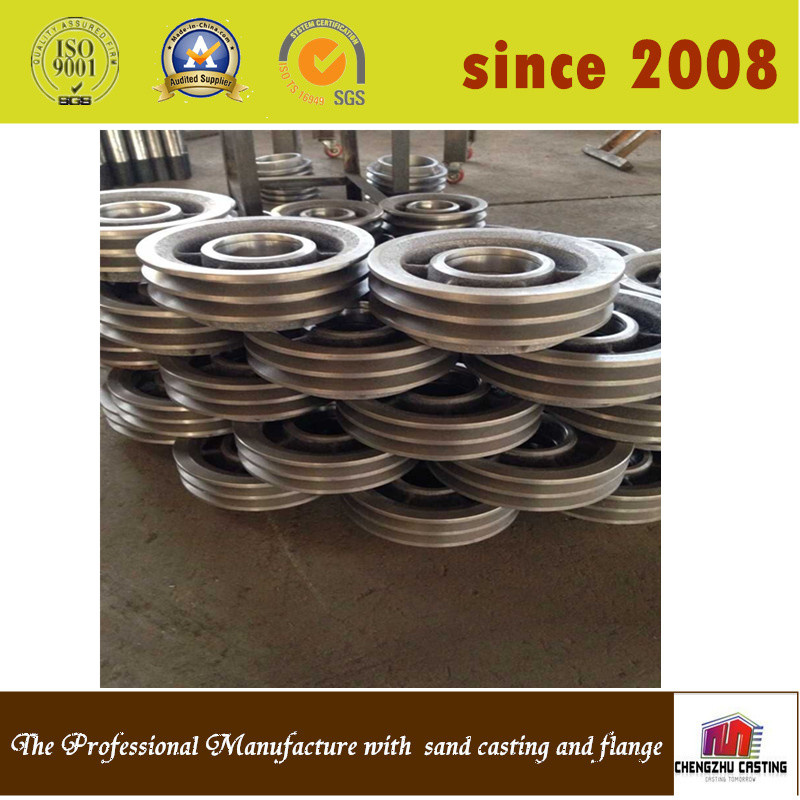

sand casting pulley with factory direct sale
Product Description
Material: Grey Iron, Ductile Iron, Malleable Iron, Carbon Steel, Aluminum,Brass,Bronze, copper ,zinc, Stainless Steel(Little) etc
Tolling process: Resin sand/Green Sand
Part unit weight range:0.5kg-20000kg
Max/Min wall thickness requirements: 4mm-250mm
Heat Treatment: Annealing, Quenching and tempering, Normalizing
Surface treatment: Paint,Anti-rust oil,Hot dipping galvanized,Powder coating
Products application: Machinery applications, automotive industry, lighting equipment, household appliances etc
Size and design :As per the customer's drawings and requirements
Sand casting Advantage: Low cost
| 1. Ductile Iron Castings: |
| 1) molding process: | Resin sand/Green Sand |
| 2) Material: | EN-GJS-400-15/EN-GJS-500-7/EN-GJS-600-3/EN-GJS-700-2 |
| 3) Molding: | Hand molding/Molding machine Z145/146/148/Molding line. |
| 4) Possible Heat Treatment: | Annealing |
| 5) Industry involved: | Municipal Construction / Fluid
/Automotive |
| 6) Part unit weight range: | 0. 5kg-2000kgs |
| 7) Max/Min wall thickness requirements: | 4mm-250mm |
| 8) Manufacturer Certification: | ISO9001(2000)/ TS16949 |
| 2. Grey iron castings: |
| 1) molding process: | Green sand/Resin sand |
| 2) Material: | EN-GJL-150/DIN 1691 GG-15
EN-GJL-200/DIN 1691-GG20
EN-GJL-250/DIN1691-GG25
EN-GJL-300/DIN1691-GG30 |
| 3) Molding: | Hand molding/ Molding machine Z145/146/148/Molding line. |
| 4) Industry involved: | Municipal industry/Construction Fluid industry/Automotive industry |
| 5) Part unit weight range: | 0.5kg-2000kgs |
| 6) Max/Min wall thickness requirements: | 4mm |
| 7) Manufacturer Certification: | ISO9001(2000)/ TS16949 |
| 3. Malleable castings: |
| 1) molding process: | Green Sand |
| 2) Material: | Ferrite Malleable Iron KTH350-10, KTH370-12, KTZ2550-04 |
| 3) Molding: | Hand-molding/Mechanical molding/Molding machine/Molding line. |
| 4) Possible Heat treatment: | Annealing, Normalizing, Quenching |
| 5) Industry involved: | Power Transmission/Construction Industry |
| 6) Part unit weight range: | 0.2kg-15kgs |
| 7) Max/Min wall thickness requirements: | 4mm-10mm |
| 8) Representative Product: | Insulator Caps/Fastener/Scaffold |
| 9) Manufacturer Certification: | ISO9001(2000)
|
Our company supplies different kinds of products. High quality and favaroble price. We' Re pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
