| Prod Model: |
MG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Industry: |
Sand Suction, Dredging |
| Slurry Pump Manufacture: |
Muyuan Pump Industry |
| Slurry Pump Wet End Parts: |
High Chrome/Rubber/Ceramic |
| Pump Type: |
Gravel Pump |
| Pump Color: |
Yellow/Cutsomized |
| Slurry Pump Seal Type: |
Gland Seal/Expelelr Seal/Mechanical Seal |
| Medium Transferred: |
Ore Slurry/Coal Slurry/Ash Slurry/Lime Slurry etc |
| OEM Service: |
Available |
| Other Names: |
Sand Pump |
| Stock: |
Available |
| Impeller Number: |
Single-Stage Pump |
| Working Pressure: |
Low Pressure Pump |
| Influent Type Of Impeller: |
Single Suction Pump |
| Position Of Pump Shaft: |
Horizontal Pump |
Product Description

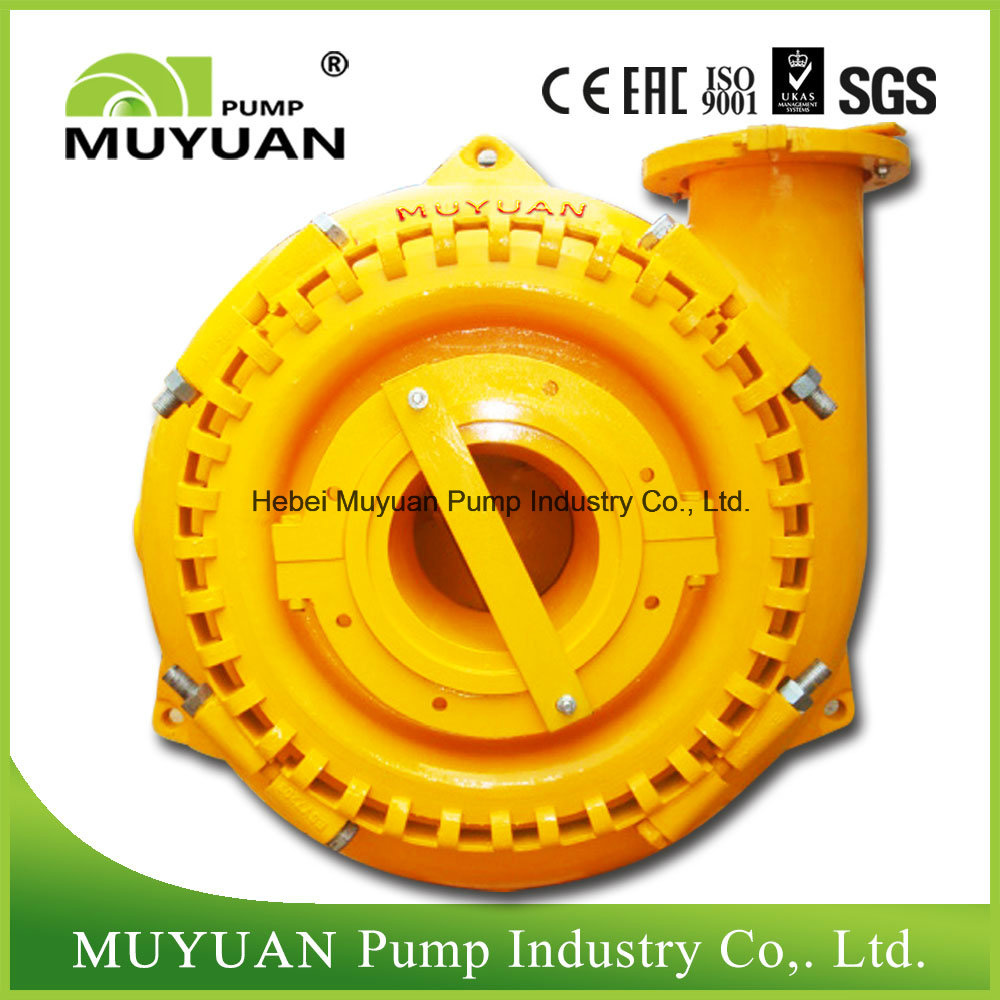

Sand Casting Slurry Pump Factory
Product Introduction:
MG series gravel pumps are designed for continuously handing the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump. The pumps are suitable for delivering slurries in mining, explosive sludge in metal melting, dredging and so on. The advantages of the pump are easy installation and operation, good performance of NPSH and abrasion resistance.
Product Features:
-Single casing
-Wide wet-passage
-Wear resistant metal wet end part, long service life
-Discharge direction can be oriented at any degrees
-Good performance of NPSH
Application Range:
Size: 4 inch to 14 inch
Capacity: up to 4320 m3/h
Maximum head: up to 80m
| Pump Type | Pump Model | Size | Flow | Head | Application | Feature |
MG
Gravel Pump | 6/4D-MG | 4"-14" | 36-3000 m3/h | 5-70m | -Sand and Gravel | -Single casing |
| 6/6E-MG | -Extremely Abrasive Slurry | -Wide wet-passage |
| 8/6E-MG | -Sugar Beet | -Wear resistant metal wet end part |
| 10/8F-MG | -Root Vegetable | long service life |
| 10/8S-MG | -Sand and Gravel | -Discharge direction can be |
| 12/10F-MG | -Slag Granulation | oriented at any degrees |
| 12/10G-MG | -Tunnelling | -Good performance of NPSH |
| 14/12G-MG |
|
|
Our company
HEBEI MUYUAN PUMP INUDSTRY CO., LTD is a professional manufacturer of slurry pumps and dredge pumps. MUYUAN Pump factory covers an area of 80000 m2. And MUYUAN is equipped with automatic production line. Except the slurry pumps, MUYUAN Pump can also offer OEM service according to your drawings or samples.
If you show interested in our slurry pump, please kindly contact us! You can also offer the detailed working condition, MUYUAN Pump can help you to select a proper pump with motor/diesel and accessories.
