| Prod Model: |
BDJDC-008 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
Machinery Part |
| Type: |
Clay Dry Sand |
Product Description

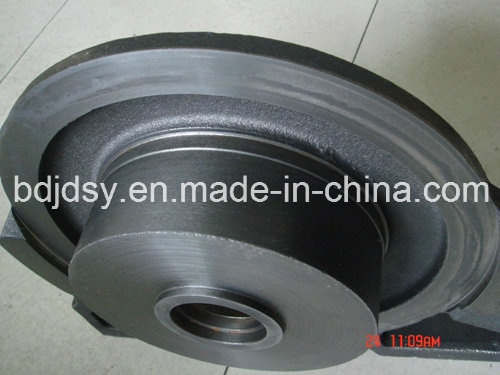

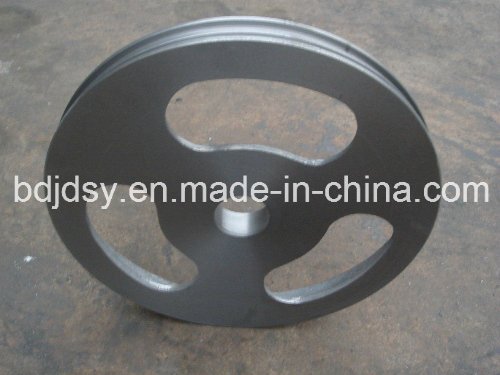

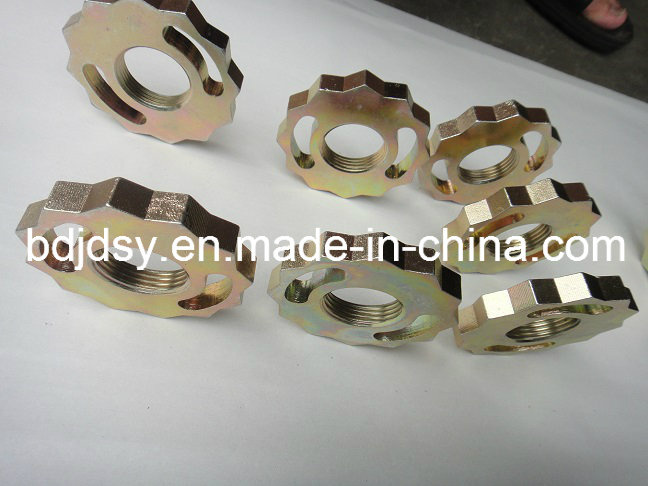

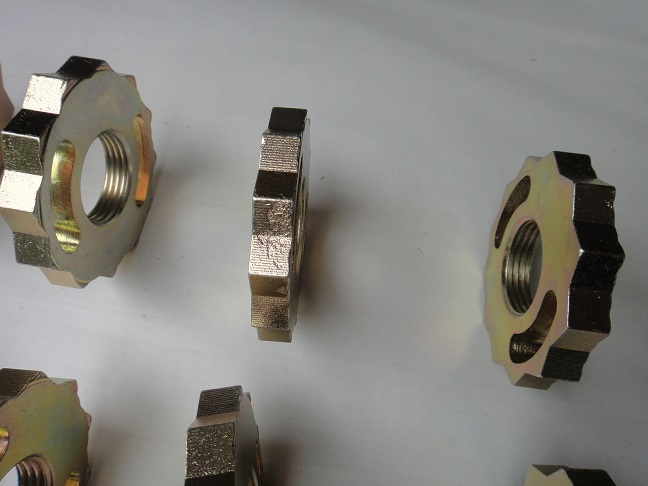

Sand casting sprocket wheel for machinery part
1.grey/ductile,ADI,Malleable iron,grey iron
2.OEM/ODM,TS16949
3.FMEA APQP QA QC,AQL,R&D PPAP
4.machined
| 1. Ductile Iron Castings: |
| 1) molding process: | Resin sand/Green Sand |
| 2) Material: | EN-GJS-400-15/EN-GJS-500-7/EN-GJS-600-3/EN-GJS-700-2 |
| 3) Molding: | Hand molding/Molding machine Z145/146/148/Molding line. |
| 4) Possible Heat Treatment: | Annealing |
| 5) Industry involved: | Municipal Construction / Fluid
/Automotive |
| 6) Part unit weight range: | 0. 5kg-2000kgs |
| 7) Max/Min wall thickness requirements: | 4mm-250mm |
| 8) Manufacturer Certification: | ISO9001(2000)/ TS16949 |
| 2. Grey iron castings: |
| 1) molding process: | Green sand/Resin sand |
| 2) Material: | EN-GJL-150/DIN 1691 GG-15
EN-GJL-200/DIN 1691-GG20
EN-GJL-250/DIN1691-GG25
EN-GJL-300/DIN1691-GG30 |
| 3) Molding: | Hand molding/ Molding machine Z145/146/148/Molding line. |
| 4) Industry involved: | Municipal industry/Construction Fluid industry/Automotive industry |
| 5) Part unit weight range: | 0.5kg-2000kgs |
| 6) Max/Min wall thickness requirements: | 4mm |
| 7) Manufacturer Certification: | ISO9001(2000)/ TS16949 |
| 3. Malleable castings: |
| 1) molding process: | Green Sand |
| 2) Material: | Ferrite Malleable Iron KTH350-10, KTH370-12, KTZ2550-04 |
| 3) Molding: | Hand-molding/Mechanical molding/Molding machine/Molding line. |
| 4) Possible Heat treatment: | Annealing, Normalizing, Quenching |
| 5) Industry involved: | Power Transmission/Construction Industry |
| 6) Part unit weight range: | 0.2kg-15kgs |
| 7) Max/Min wall thickness requirements: | 4mm-10mm |
| 8) Representative Product: | Insulator Caps/Fastener/Scaffold |
| 9) Manufacturer Certification: | ISO9001(2000) |
Facility may involved for Q&C:
Material:
lChemical composition:
Ø OBLF Spectrometer with 29 channels in bi-metal of AL+FE
lMechanical Property
Ø Hardness test
Ø Mechanical property inspection
Ø Impact inspection
lMicrostructure:
Ø Microscope Metallographic Analysis as per AQL based on heating number
lStructure tightness
Ø Destruction test
Ø Weight test
Crack inspection:
lMT
lUT
lX-ray
Coating test:
lCoating thickness tester
lSalt spray test
Dimension:
lConventional gauge
lGo & No-go gauge
lCMM
Leakage check
Press load test
Ø Will be effected acc. to different projects.
Baoding JiangdashengyeTrade Co., Ltd is a production and trade in one company, located in Baoding Hi-tech Development District of Baoding city, Hebei province. The company was founded in 2000, covers an area of 30000 square meters. The company is a professional production of sand casting, die casting, investment casting, forging, plastic parts and other kinds of mechanical parts production factory. The enterprise has a advanced casting production line, various specifications of Numerical control lathe, Milling lathe and so on total 35 sets, 5 CNC Machine. All products are exported to American, Europe, Japan, Middle East and other countries.
Products to the maximum extent to meet customer requirements for product quality, has a good reputation in the industry. Our tenet is quality first, customer first for the purpose. The company has the industry's well-known engineer checks, strong technical force, is your trusted partner. Let customers feel at ease the use of our products is our aim. Welcome more new and old customers to establish long-term cooperative relationship with us. Thank you!
