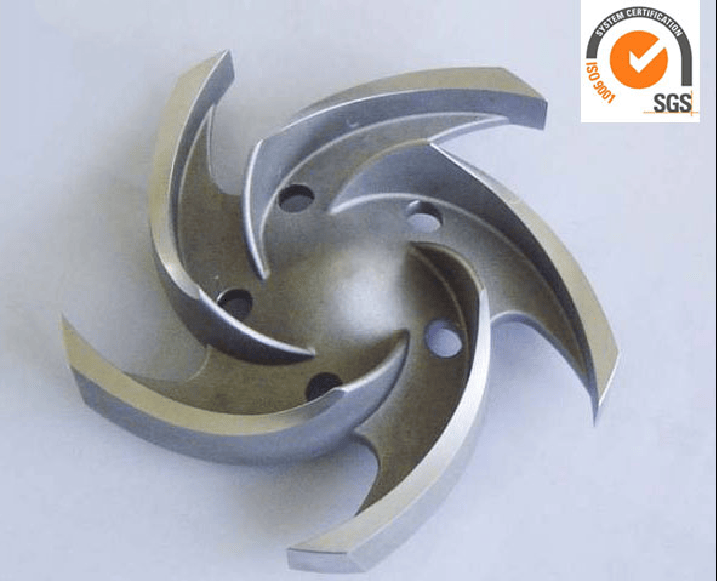

Sand Casting with Machining in CNC and Heat Treatment (ISO9001: 2008)

Name: Sand Casting with Machining in CNC and Heat Treatment (ISO9001: 2008)
Brand: china-castingforging.com
SKU: 697015672
Availability: InStock
Rating: 4.9 (128 reviews)

Price:	US $ 100/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C

Contact Supplier

Wangdu Jingtie Machinery Manufacture Co., Ltd.

Showroom Product Company Profile

Prod Model:	CAST-001921
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tolerance:	±5mm
Weight:	200kgs - 2tons
200kgs - 2tons:	50um
Delivery Time:Delivery Time:	15-30 Days After Payment
Export Markets:	Global
Type:	Chemical Hardening Sand

Product Description

We can supply sand casting,die casting,permanent mold casting,gravity casting,chill casting,low pressure casting .
No matter what type of molding you need done, we're the right supplier for the job. Unlike most of our competition, we offer Four types of castings - aluminum sand casting, gravity die casting, aluminum die casting and low pressure die casting. Our products include automotive parts, railroad parts, medical parts, marine parts, lighting parts, pump body, valve parts, architectural parts and furniture parts.
Feature:

Material	1.Sand casting&Gravity casting&Low pressure die casting: A356/A319/A413/ZL101/ZL102/ZL104/ZL107/LM6//LM/20/LM25/ENAC-42100/ENAC-42200/EN AC-43000/ENAC-43200/EN AC-46000/EN AC-46200 2.High pressure die casting: A380/A390/A360/ADC10/ADC12/ENAC-43400/ENAC-44300/ENAC-44400/ENAC-46000/ENAC-46100/ENAC-46200/ 3. CNC machining casting: 6061-T6/6063-T6
Process	Sand casting, Gravity casting, high pressure die casting, low pressure die casting and CNC Machining casting.
Designs	1.As per the customer's drawings 2.As per the customer's samples
Equipment of Casting	1.High pressure die casting machining: 125T/180T/250T/280T/500T/800T/1250T 2.Gravity casting machine: 5 production lines 3.Low pressure die casting machining: 1 production line 4.Sand casting machine: 6 production lines 5.Degassing equipment and opportunities to refine the material 6.Machining: 3Sets CNC Machine;3 sets Milling machine; 3 sets Turning machining; 10 sets drill and tap machine
Testing facility	spectrometer, tensile test machine, hardness test machine, CMM dimension report
Certificate	ISO9001:2008/Rosh/SGS
Standard	ASTM, DIN,JIS, EN, ISO, GB standards
Software	Pro/E,UG, Solidworks, Auto CAD, PDF
Precision machining	CNC turning, milling, drilling, grinding, cutting, reaming and threading
Finished	Polishing, sand blasting, heat treatment, painting, powder coating, anodizing, electroplating, Chrome plating, mirror polishing.
Service	OEM service available.
Product	All kinds of aluminum casting: include automotive parts, railroad parts, medical parts, marine parts, lighting parts, pump body, valve parts, architectural parts and furniture parts so on
Advantage	With 17years in Aluminum casting; Have four casting types; Near Sea Port and Air Port; Passed ISO9001:2008/Rosh/SGS From Casting to Finished surface, Owned casting, polishing and plating workshops, We can offer Good quality and strict delivery time. With samples and order: We can offer dimension report,Chemical composition and Mechanical properties Control material with spectral and thermal analysis equipment (density and processing) Spectral analysis of rawmaterial and liquid melt, batch before casting.
Inspection	Foundry in-house Third Party inspection available upon requirement
Packing	Carton Box with Pallet/Wooden Box/Steel Pallet

Our sevice:
tooling design
tooling fabrication
die casting
precision machining
differen finish: plating, painting,coating, chrome plating, nickel plating,e-coating,etc.
assembling

Wangdu Jingtie Machinery Manufacture Co., Ltd

Wangdu Jingtie Machinery Manufacture Co., Ltd is a joint- stock enterprise which occupies 3.2 acres with 5600mm building area. The fixed investment is up to 3.2 billion RMB on theoffice buldings and eight workshops. It has 198 members on job in the company record, including 18 senior/middle engineersand 13 highly skilled people rewarded of the professinoal certification about Metrology, testing, instrumentation and flawdetection from province and ministry. And now we are getting cloely step with many big construction machinery manufacturers and the support from China Railway Bureau. Our manly products are Pins, bushings, supporting wheels, guide wheels, iron nested parts, bimetal bush, buses pedal, hinge pin, swing door lever(inside and outside ), emergency lock (inside and outside), etc.

We have our own track roller production lines, pin production line, bushing production line, railway parts production line. It is the appointed manufacturer of "double metal bearing sentinel plants" recognized by former Ministry of Machinery and Electronics Industry of China with the production of bimetallic Bearing 320, 000 units. It is the key supporting plant approved by"China YTO (Luoyang) construction machinery Co., Ltd" through strict examination in 1998. Now it owns the capacity of annual output 9000 vehicles in the field of construction machinery supporting pins and bushings. And also it is one of the major manufacturers of Korea Hyundai Heavy machinery, Xiamen machinery and many other esteemed enterprises in supporting pins, bushings and other components.

"Producing Parts while making the world a better place" - Our actions speak louder than our words. You will enjoy working with us...We'll make it easy for you. We are ISO 9001: 2008 Certified. We always put the "credit" in the first place, and regard product quality as enterprise's life.

Count on Jingtie Machinery Manufacture, co. To minimize your risk and provide high valued solutions. Through open communication, trust and performance...We create a win-win for everyone involved in business.

Get us involved early in the engineering stage and we will help you invest your money wisely and help you get the most out of our design, engineering and production capabilities. We can assist you from proto type all the way through production.

We are ready to help you meet the needs of your short run or high volume production runs. Always looking forward your advises and visits.
