| Price: | US $ 10.00/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Money Gram,Western Union |
| Prod Model: | ZLT series |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Applicatipn: | Pump Bearing Frame St Dci |
| Sample Time: | 20 Days |
| Delivey Time: | 30 Days Upon Order |
| OEM & ODM: | Yes |
| Advantage: | Factory Direct Price and Fastest Delivery Time |
| Size: | According to Client's Request |
| Model Select: | All Kinds of Model as Per Your Request |
| Standard For: | ANSI |
| Other Test: | Spectrameter, Hardness Tester, Toughness Tester |
| Craft: | Sand Casting |
| Type: | Chemical Hardening Sand |

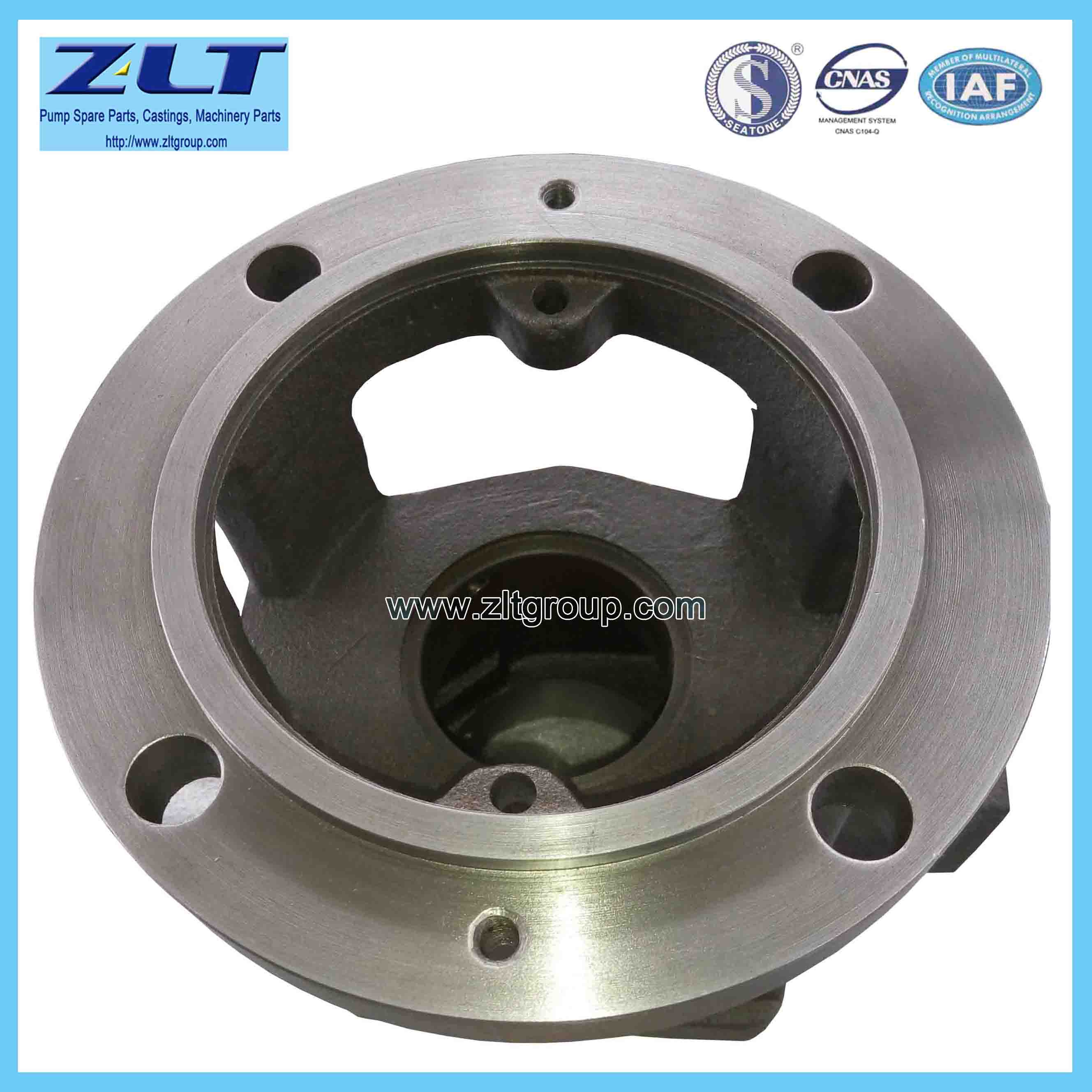

Descriptions | Pump Bearing Frame ST DCI |
| Material | DCI, Stainless steel, carbon steel, low alloy, high chrom, cas iron, bronze, ductile iron brass, etc. |
| Model Type | All kindsof model we can do according to you request |
| Type | ANSI pump cmponents, Goulds Impellers 3196, Impeller Titanium, Open Impeller, Semi Open, Closed or Shrouded., Goulds Pump Impeller Pump Parts |
| Casting Method | Most of the Pump Bearing Frame ST DCI are made by sand casting. |
| Our Advantage | 1. OEM according to your drawings are available 2. Professional model selection experts are at your service 3. We do the pump test strictly 4. Guarantee the quality, factory direct price and the fastest delivery time. |
| Process | moulding pouring machining testing |
| Annual Capacity | The maximum production capacity could be 10, 000 tons per year, with a single piece up to 100 tons, the smallest part only a few grams by lost wax casting, the largest weight can be made up to 10t/pc. |
| Opeating Temperature | -25° C to +60° C |
| Color | According to 100% drawing |
| Size | As per 100% drawing |
| Weight | 10 grams by lost wax casting, the largest weight can be made up to 10t/pc or as per customer ' s requirements |
| Tolerance | Grinding: 0.001mm EDM: 0.002mm |
| Standards | AISI, ASME, BS, ANSI, JIS, GB, GOST etc. |
| Machining | CNC Lathe, Universal Lathe, CNC Cutting Machine, Dynamic Balancing Machine |
| Testing | Spectrameter, Hardness Tester, Toughness Tester, Dynamic Balancing Tester, PT Tester, Hydro Test, High Pressure 1500 psi etc. |
| Application | Oilfield equipment, Well Construction, Mining & Construction, Power Generation, Wastewater General industry, Chemical Processing etc. |
| Packing | According to client's request |
| Type | Parts | Material |
| Power end | G1119 Bearing Frame | DCI |
| G1201 Bearing Frame | DCI | |
| Shaft | 316/4140 | |
| Shaft sleeve | 316 | |
| Seal(Inprolaby) | ||
| SKF Bearing | ||
| Standard parts | ||
| Assembled cost | ||
| Type | Parts | Material |
| Power end | G2119 Bearing Frame | DCI |
| G2201 Bearing Frame | DCI | |
| Shaft | 316/4140 | |
| Shaft sleeve | 316 | |
| Seal(Inprolaby) | ||
| SKF Bearing | ||
| Standard parts | ||
| Support | ||
| Assembled cost |
| Type | Parts | Material |
| Power end | G3119 Bearing Frame | DCI |
| G3201 Bearing Frame | DCI | |
| Shaft | 316/4140 | |
| Shaft sleeve | 316 | |
| Seal(Inprolaby) | ||
| SKF Bearing | ||
| Standard parts | ||
| Support | ||
| Assembled cost |
| Caft | Clarify | Process | Material |
| Lost Wax Casting | silicon colloidal | moulding | Stainless steel, carbon steel, low alloy, high chrome, cast iron, bronze, ductile iron brass, etc. |
| pouring | |||
| waterglass bonded | machining | ||
| testing | |||
| Sand Casting | resin sand craft | moulding | Stainless steel, carbon steel, low alloy, high chrome, cast iron, bronze, ductile iron brass, etc. |
| pouring | |||
| silicate bonded sand craft | machining | ||
| testing | |||
| composite shell | |||
| Lost Foam Casting | moulding | Stainless steel, carbon steel, low alloy, high chrome, cast iron, bronze, ductile iron brass, etc. | |
| pouring | |||
| machining |
| Packing Methods |
| Small part, single packed then put into paper carton then to crate. |
| 1. Generally use poly wooden crates for package. |
| Minimum poly wooden board thickness: 20mm |
| Steel band: 19× 0.5mm or 15× 0.5mm |
| Common crate size is less than 1200X1000X1000mm |
| 2. For the very big part, use welding steel crate. The size and steel thickness is according to the product dimension and weight. |
| 3. Large size and large quantity part, put into container directly. |
| 4. We also consider customers' special needs for packing |
