Sand Mixing Machine /Foundry Industry Used Cast Sand Mixer
| Price: |
US $ 2000set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
S11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Overall Size: |
According to Requirement |
| Working: |
High Speed Mixer |
| Application: |
Granules |
| Additional Capabilities: |
Milling |
| Mixer Type: |
Grinding Wheel |
| Mixing Drum Shape: |
Grinding Wheel |
Product Description

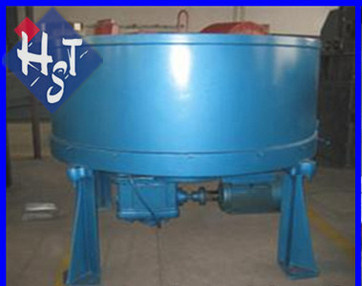

Casting Sand Mixer Foundry Sand Mixer/Concrete Mixer/Standard Roller Sand Muller Mixer
15kw,500kg per time feeding
Sand mixer/sand mixing mill is made in green sand mixing various components, and make cohere agent effectively coated sand in the surface of the equipment. Sand mixing mill (sand mixer) using grinding wheel and the relative motion of the grinding wheel, placed on the material between by rolling and the role of the grinding shattered material, sand mixing machine in the crushing of the materials will also be mixed materials. Is the production of unburned brick, cement bricks, refractory bricks, crushed and mixed fly ash, boiler slag, tailings and industrial waste residue ideal equipment for brick-making raw materials.
The inlet of the sand mixer can equip with the new and old sand proportional regulator according to the productive requirement.
It can accurately control the ration and production rate of the new and old sand.
We can adjust and choose the rate in the process of sand milling .
Parameters
Item | S1110 | S111A | S112 | S114C | S116C | S1118 |
Diameter of disk(mm) | 1000 | 1220*530 | 1450*600 | 1860*200 | 2400*706 | 1800 |
Feeding amount each time (kg) | 110 | 130 | 250 | 500 | 1000 | 800 |
Mixing time (minute) | 3-8 | 3-8 | 3-8 | 3-8 | 3-8 | 3-8 |
Productivity (t/h) | 1.0-2.2 | 1.0-2.6 | 2.0-5 | 5-10 | 10-20 | 8-15 |
Diameter of runner wheel(mm) | 420*130 | 667*117 | 630*117 | 766*221 | 890*270 | 750*240 |
Rotating speed of driving shaft(r/min) | 44 | 41 | 32.5 | 30.7 | 23 | 36 |
Power of driving motor(kw) | 4 | 5.5 | 7.5 | 15 | 30 | 22 |
Overall dimension(mm) | 1250*1400* 9600 | 1400*1280* 1250 | 1660*1500* 1350 | 2082*1882* 1607 | 2600*2450* 1850 | 2100*1850* 1850 |
Notice : 1. Above is the parameter of our standard machine ,please carefully refer to this chart , then choose the machine that very suitable for you and inform us.
2. If you have little knowledge about this, also let me know with your requirements. Our team will recommend the right machine for you and offer you more details.

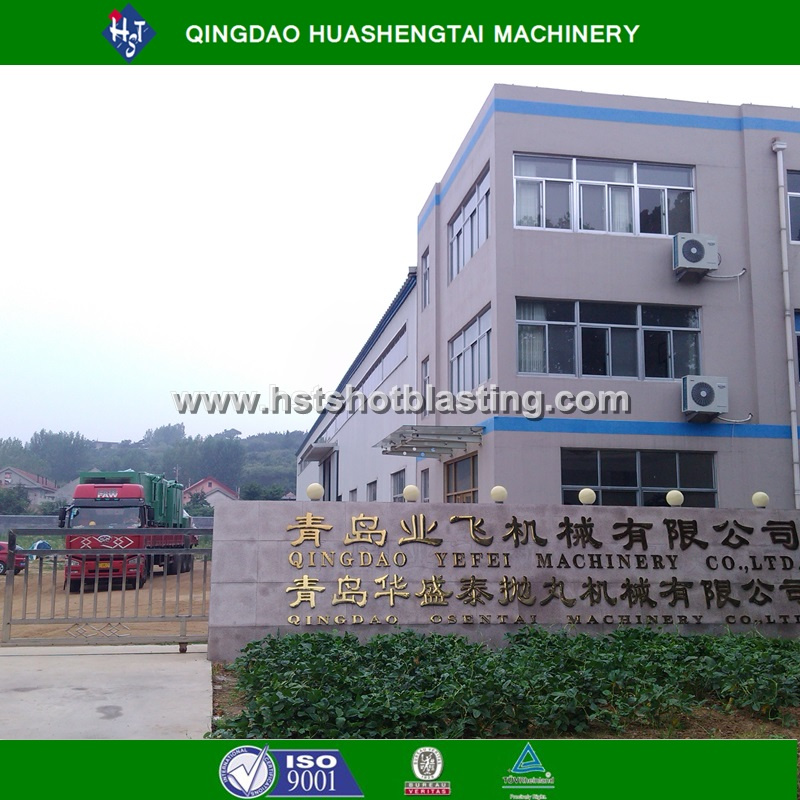

Qingdao Huashenghai Shot Blast Machinery Co., Ltd, locating in the west coast of the beautiful coastal city Qingdao, is an industrialization entity with scientific research, development, production and operating integration. We have engaged in casting machinery for more than 20 years, thereby gain profound cultural background and the technical essence, great research and development ability, advanced production technology, perfect detection means, scientific management system. As the professional manufacturer of casting machinery industry, our technology, quality and automation level is ranking in the advanced level in the same domestic industry.
