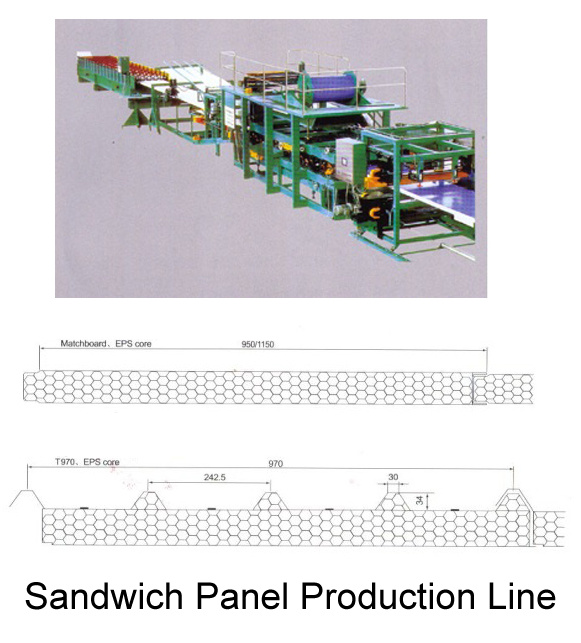

Sandwich Panel Roll Forming Line

Name: Sandwich Panel Roll Forming Line
Brand: china-castingforging.com
SKU: 675299145
Availability: InStock
Rating: 4.6 (56 reviews)

Price:	Negotiable/Piece
Min Order:	1 /Piece

Contact Supplier

Zhenyuan Roll Forming Machinery Factory

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	According to Customer's Requirement
Attn:	Bonnie Yao

Product Description

Brief introduction:
A. Simple structure and beautiful outlook
B. Easy to setting and operation
C. Little noise and high working efficiency
D. Heat Preservation

Size	502.65m
Weight	22T
Control System	Omron Encoder
Main Motor	Cycloidal Gear Reductor
Composite Host Production Speed	Adopt cycloidal reducer, production speed is 4-4.5m/min corrugated speed for 2.5m/min
Sheet Shape	EPS Flat Sheet
Voltage	380V
Composition	Decoiler-Forming Part-Composite host-Cutting Part-Production
Cutting Way	Adopts hydraulic control, make of compound production and cutting simultaneously, high production efficiency. Cutting knife and milling cutter Chong mode: cutting, according to different plate type selection. Chong cutting speed for a single cutting speed, cutting speed for full speed. Milling cutters for variable speed, cutting speed for slow way to cut into, full back. By inverter control.
Material Of Roller	45 # steel chromium plating
Motor Power	35kw
Controller	KMD04B Series
Corrugated pressed motor	Dual-class cycloidal gear reducer
Quantity of Motor	22
Heating tube	6 roots 2kw/root
Rubber roller	26 roots
Forming number	13 rolls
Complication	Roof Panel; Wall Panel

Established in 1998, Botou Zhenyuan Roll Forming Machine Factory is specialized in designing and producing roof and wall roll forming machines.

Our products are widely applied to manufacturing colored steel tiles which get extensive application in industry workshop, warehouse, residence, etc. They have won high reputation for their satisfying quality among our customers.
