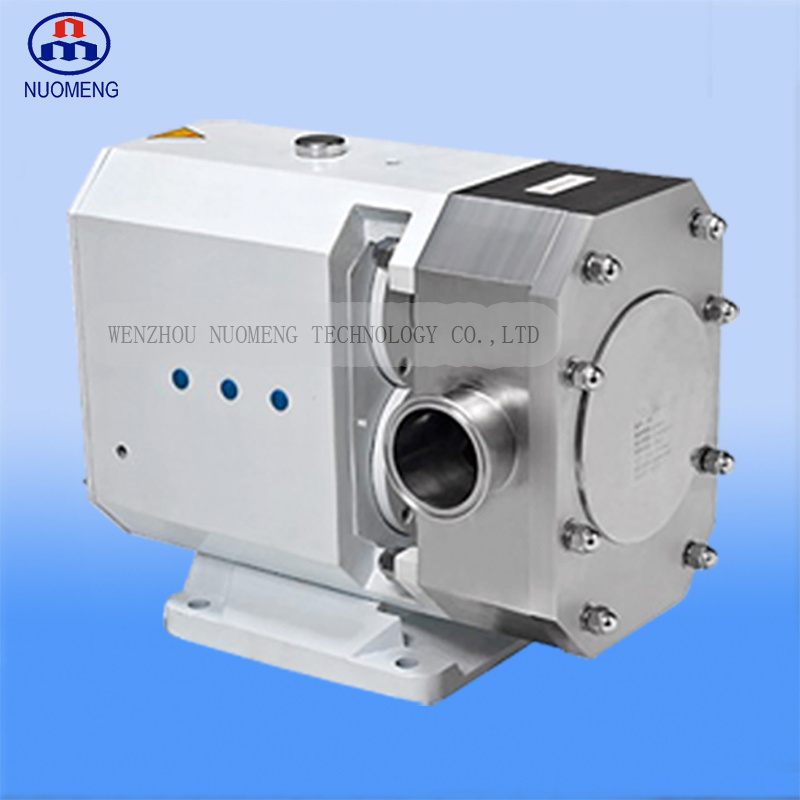

Sanitary Stainless Steel Water-Cooled Mechanical Seal Lobe Pump
| Price: |
US $ 200-1000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
TUL/TUR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Investment Casting: |
AISI304, AISI316L |
| Cast Iron Support And Gear Box: |
Qt450-10 |
| Gasket (Standard): |
EPDM |
| Mechanical Seal (Standard): |
C/Sic/EPDM |
| Internal Surface Finish: |
Ra Is Less Than or Equal to 0.6 Micrometer. |
| External Suface Finish: |
Mirror Polish |
| Acting Form: |
Double-Acting |
| Type: |
Vane Pump |
Product Description
Application:
Hygienic Lobe pump (rotor pump) is a positive displacement lobe rotor pump, it was designed according to 3A standard that with a very strict hygienic requirments to equipment and processes, so this pump is easily cleaned and maintenanced.
The pump is ideal for the transfer of viscous as well as low-viscous media in the food-processing, cosemtics and pharmaxeutical industries.
Water-cooled Mechanical Seal Lobe Pump is one of Hygienic Lobe Pump. It was used in high tempetature and high viscosity such as syrup, tomato paste and other materials.

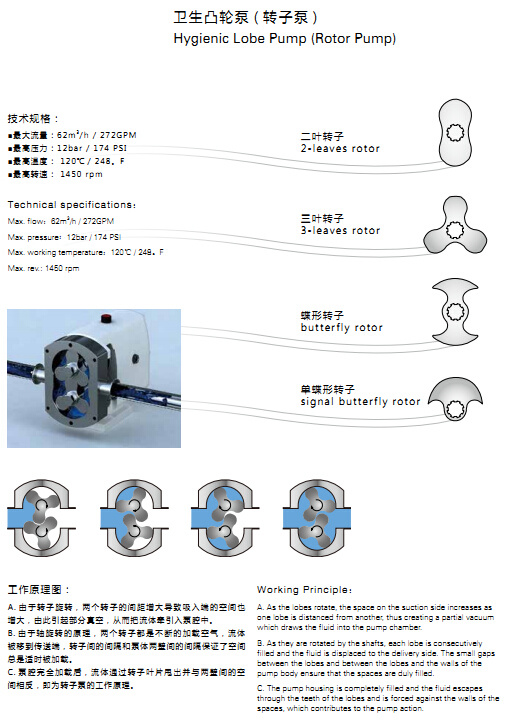

Operating Principles:

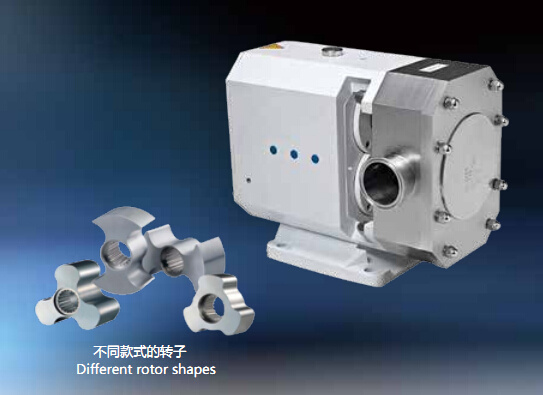

The pump basically consists of two lobe rotors which rotate inside the casing without touching each other.
As the rotors rotate, the space between the lobes and the casing is successively filed with the product which is driven to the discharge nozzle displacing a fixed amount of product.
The pumped product forms a continous stream due to the adjusted tolerances of the lobes and the pump casing thus ensuring an efficient pumping.
Materials:
Investment casting casing:AISI 316L/AISI 304
Cast iron support and gear box:QT 450-10
Gaskets(standard):EPDM
Mechanisal seal (standard)C/SIC /EPDM
Internal surface finish:Ra<0.6ηm
External surface finish: mirror polish
Options:
Mechanical seal: SiC/SiC,TgC/SiC,TgC/TgC
Single mechanical seal :Rushed double mechanical seal
Gasket:FPM(VitonR)or PTEE
Relief valve at the front cover or extermal by pass
Vertical TUR series or Horizital TL series
Different drives and fixes:- Manual adjust continuously Variable Transmission
- Frequency converter adjust motor dear box
- Fixed speed output transmission
Connections :clamp thread flange ,welding Motor type B5
4poles motor
Motor frequency: 50HZ .60HZ

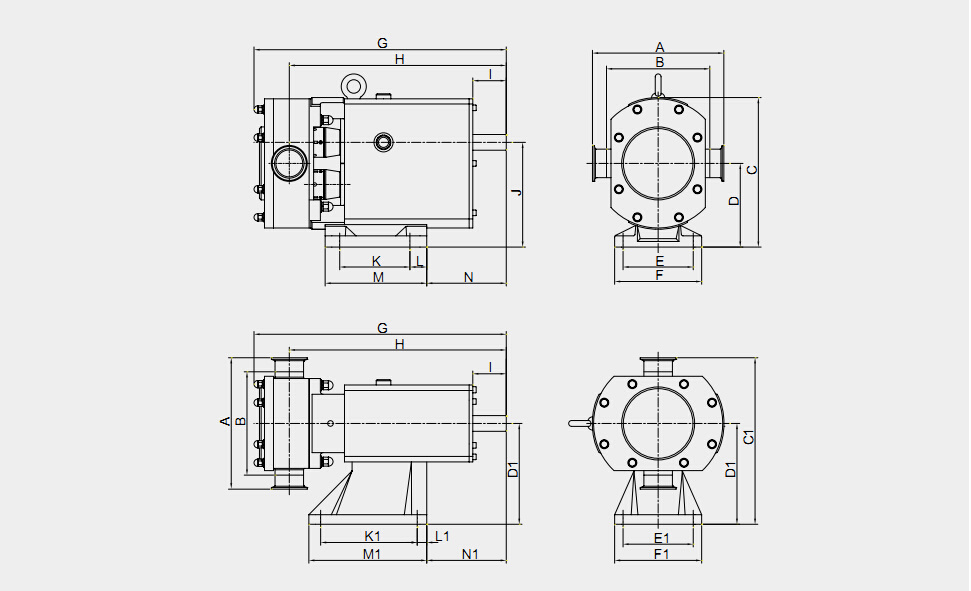

| Types | L/100 rev | Entrance | A | B | C | C1 | D | D1 | E | E1 | F | F1 |
| TUL/TUR-20 | 9.96 | 1"/DN25 | 215 | 172 | 222 | 252 | 123 | 145 | 100 | 95 | 125 | 120 |
| TUL/TUR-23 | 18.7 | 1.5"/DN40 |
| TUL/TUR-25 | 25.6 | 2"/DN50 |
| TUL/TUR-30 | 43.4 | 227 | 184 | 270 | 288 | 149 | 175 | 125 | 155 |
| TUL/TUR-35 | 54.3 | 2.5" |
| TUL/TUR-55 | 59.3 | DN65 | 240 | 295 |
| TUL/TUR-60 | 65.3 | 3" | 227 | 288 |
| TUL/TUR-70 | 128 | 303 | 260 | 387 | 407 | 221 | 256 | 193 | 233 |
| TUL/TUR-80 | 164 | DN80 | 316 | 414 |
| TUL/TUR-100 | 208 | 4"/DN100 | 303 | 407 |
| TUL/TUR-125 | 260 | 5"/DN125 | 316 | 414 |
| Types | G | H | I | J | K | K1 | L | L1 | M | M1 | N | N1 |
| TUL/TUR-20 | 332 | 291 | 52 | 153 | 100 | 115 | 19 | 15 | 132 | 146 | 107 | 105 |
| TUL/TUR-23 | 346 |
| TUL/TUR-25 | 356 |
| TUL/TUR-30 | 457 | 381 | 60 | 146 | 125 | 170 | 30 | 18 | 181 | 210 | 140 | 146 |
| TUL/TUR-35 | 465 |
| TUL/TUR-55 | 474 |
| TUL/TUR-60 | 476 |
| TUL/TUR-70 | 540 | 464 | 80 | 281 | 208 | 32 | 275 | 150 | 129 |
| TUL/TUR-80 | 469 |
| TUL/TUR-100 | 480 |
| TUL/TUR-125 | 493
|
