| Prod Model: |
do based on your detailed reuqirement |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quality: |
Can Do Based on Your Detailed Requirement |
| Computer Control System: |
PLC Control |
| Certificate: |
ISO 9001: 2008 |
| Transportation System: |
Chain Transportation |
| Rolling Material: |
Forging Steel 45# Adjustable |
| Type: |
Metal Rolling&Drawing Machine |
Product Description

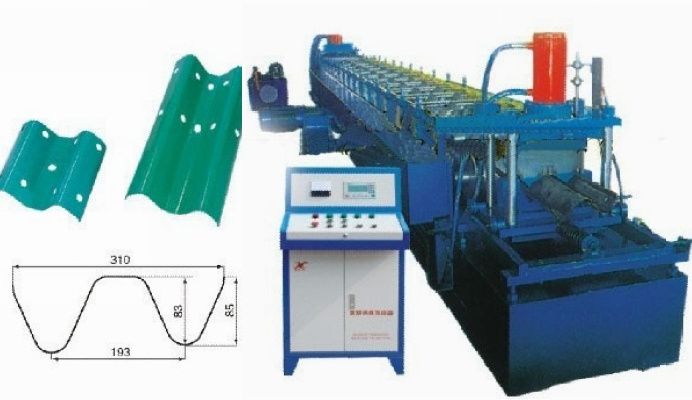

SB 310 highway guadrail roll forming machine
1. It has good features such as low noise, easy operate
2. Reasonable price and high quality
Feeding width: 482 mm
Material of shaft: 45#steel adjustable treatment
Out diameter of shaft: Φ 80mm
Rolling materials: Gr15
Shear mould( hydraulic shearing): Cr12, quench
Number of forming rollers: 13 rows
Main frame: 300 H steel
Transportation system: Chain transportation
Thickness of chain: 2.0 inches and single roll
Main motor power: 18.5KW
Pump station power: 15 KW, 20Mpa
Pin gear speed reducer: 15KW
Forming speed: 5000-12000mm/min
Rolling thickness: 2.5-3.0 mm
|
Forming size |
17500mm*1200mm*1500mm |
|
Feeding width |
482 mm |
|
Material of shaft |
45#steel adjustable treatment |
|
Out diameter of shaft |
Φ 80mm |
|
Rolling materials |
Gr15 |
|
Shear mould( hydraulic shearing) |
Cr12, quench |
|
Number of forming rollers |
13 rows |
|
Main frame |
300 H steel |
|
Transportation system |
Chain transportation |
|
Thickness of chain |
2.0 inches and single roll |
|
Main motor power |
18.5KW |
|
Pump station power |
15 KW, 20Mpa |
|
Pin gear speed reducer |
15KW |
|
Forming speed |
5000-12000mm/min |
|
Rolling thickness |
2.5-3.0 mm |
|
Punching |
Hydraulic punching ( Cr12) |
|
Control system |
PLC taida |
Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers
Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level
Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.
The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
