| Prod Model: |
do based on your detailed requirement |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quality: |
We Provide The Technical Support for Whole Life of |
| Product Warranty: |
12 Month |
| Type Of The Machine: |
We Can Design It as Customers Request |
| Color Of The Machine: |
We Aslo Can Do It as Customers Request |
| Control System: |
Automatic Computer Control |
| Type: |
Metal Rolling&Drawing Machine |
Product Description

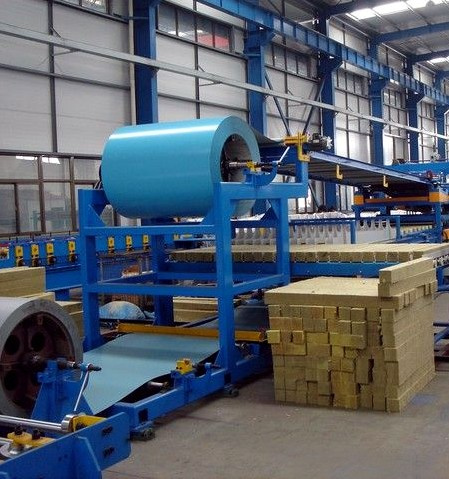

Sandwich panel production line
Constituent parts Decoiler, roll forming machine, composite mainframe, cutting parts, find product rack
Forming size: 45000*3000*2800
Feeding width 1000mm/1200mm
Main motor power 32KW
Working speed 0-4.05m/min
Equipment weight 20T
Electrical system PLC Taiwan fengwei
Rolling thickness 0.3-0.8mm
Power source AC380V/50-60HX
Decoiler Bearing 5-7tons
Number of forming rollers 13rows
Thickness of chain 0.6 inches
Out diameter of shaft: 70 mm
Middle plate 12mm
Big frame 300 channel steel
|
Constituent parts |
Decoiler, roll forming machine, composite mainframe, cutting parts, find product rack |
|
Forming size: |
45000*3000*2800 |
|
Feeding width |
1000mm/1200mm |
|
Main motor power |
32KW |
|
Working speed |
0-4.05m/min |
|
Equipment weight |
20T |
|
Electrical system |
PLC Taiwan fengwei |
|
Rolling thickness |
0.3-0.8mm |
|
Power source |
AC380V/50-60HX |
|
Decoiler |
Bearing 5-7tons |
|
Number of forming rollers |
13rows |
|
Thickness of chain |
0.6 inches |
|
Out diameter of shaft |
70 mm |
|
Middle plate |
12mm |
|
Big frame |
300 channel steel |
|
composite mainframe |
Squar Steel tube 80*160 Glue shaft: 150 19roots |
Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers
Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level
Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.
The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
