| Prod Model: |
sb21-215-860 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Speed: |
8-10m/Min |
| Warranty: |
12 Monthes |
| Control System: |
Automatic CNC Control System |
| Cutting System: |
Hydraulic Shearing System |
| Type: |
Building Machine |
Product Description

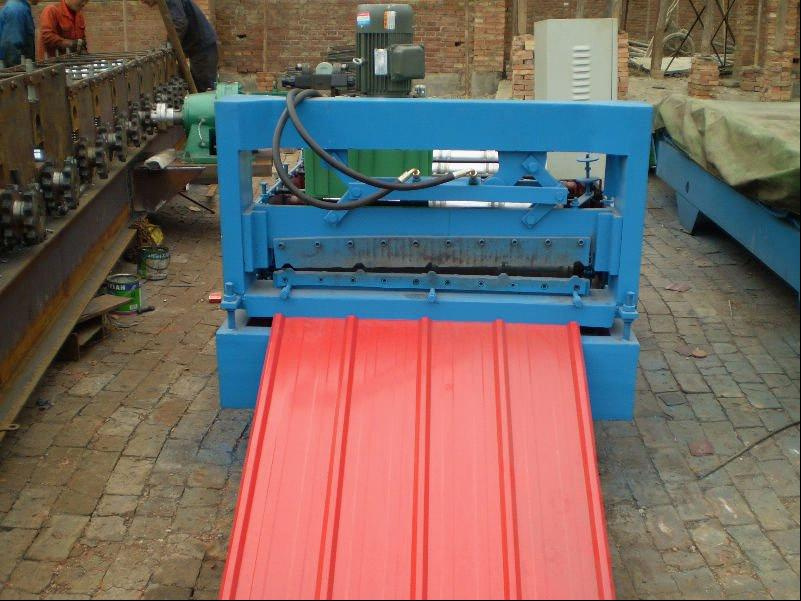

Roll Forming machine SB21-215-860
Forming size: 6000mm*1300mm*1200mm
The chart of process flow:
Decoiling_active feeding (put the coil strip into the first feeding roller)_leveling _roll forming _hydraulic cutting_product to stand
Technical specifications
1) Main forming machine
Material of shaft: 45 # steel adjustable treatment. Out diameter: φ 70
Material of roller: Cr 12, quenched treatment HRC 58-60
Number of forming rollers: 13 rows
Main frame: 250 H steel
Thickness of medium plate: 12 mm
Transportation system: Chain transportation
Thickness of chain 1 inch
Main motor power: 3 KW
Forming speed: 8-10m/min
Feeding width: 1000mm
Rolling thickness: 0.3-0.8mm
Equipment weight: 2100 kg
2) Hydraulic cutting
Material of blade and punch: Cr12, heat treatment 60-62
Cutting system: Adopt advanced hydraulic drive. After forming automatic cut, no distort no wasting, high safe factor.
3) Electrical system
A. Screen display: 5.7 inch Taida touch screen
B. Main computer(PLC): Taida DVP14ES
Products warranty: 12 month, and we will provide the technical support for the whole life of the equipment
Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers
Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level
Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.
The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
