| Prod Model: |
P3.9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Scanning Mode: |
1/16 Scan |
| Display Type: |
LED Video Display |
| Application: |
Stage Performance |
| Certification: |
CCC |
| IP Rating: |
IP31 |
| Pixel Pitch: |
3.9mm |
| Average Power Consumption: |
100W/Sqm |
| Pixel Density: |
65536dots/M2 |
Product Description

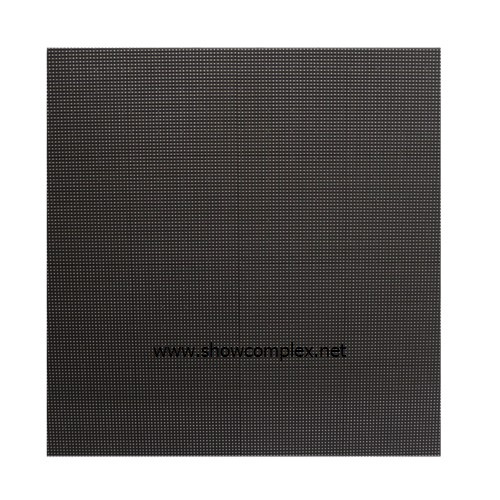

1.This indoor rental LED screen combines 140°wide viewing angle and 7m nearest viewing distance to offer optimum watching experience.
2.With 3.91mm pixel pitch,this screen delivers vivid image detail thanks to high resolution and brilliant color uniformity.
3.Its crystal clear picture performance relies on 14bit gray scale levels,and unparalleled contrast levels.
4.Adopting adjustable connectors to splice a totally seamless display providing perfect visual performance.
5.This dispaly can keep stable performance from continuous operation with low power consumption, fast heat dissipation and noise free.
6.Assembled with hight quality components,its sevice life is able to reach 10 years.Super easy setup,especially suitable for rental use.
Features:
High Precision die-casting aluminum panel achieves high flatness and seamless matching of the whole display
Color uniformity, high contrast, clear picture
Ultra thin body, easy to transport and loading and unloading
High stability, high reliability, long service life
Support for both front and back maintenance, easy installation
Parameters:
| Model | SC-AIR 3.9 Indoor Rental LED Display |
| Pixel pitch | 3.9mm |
| LED Encapsulation | 2121 |
| Pitch Composing | SMD 3 In 1 |
| Module Size | 250mm*250mm |
| Module Resolution | 64dot*64dot |
| Cabinet Size | 500mm * 500mm * 65mm |
| Cabinet Resolution | 128dot*128dot |
| Density | 65536dot/ |
| Brightness | ≥1200nits |
| Brightness Adjustment | Auto 256 level |
| Viewing Distance | 3m-10m |
| View Angle(H) | 150° |
| View Angle(V) | 140° |
| Max Consumption | 240W/ |
| Brightness Adjustment | Manual/Auto/Programmable |
| Driving Method | 1/16 Scan Constant Driving |
| MTBF | 50000hours |
| Lifespan | 100000hours |
| Frame Frequency | 60Hz |
| Working Temperature | -20ºC+50ºC |
| Humidity Range | 10% ~ 90% |
| Voltage | 110 ~ 240V |
| IP Ranking | IP31 |
| Blind Spotrate | <0.0003 |
