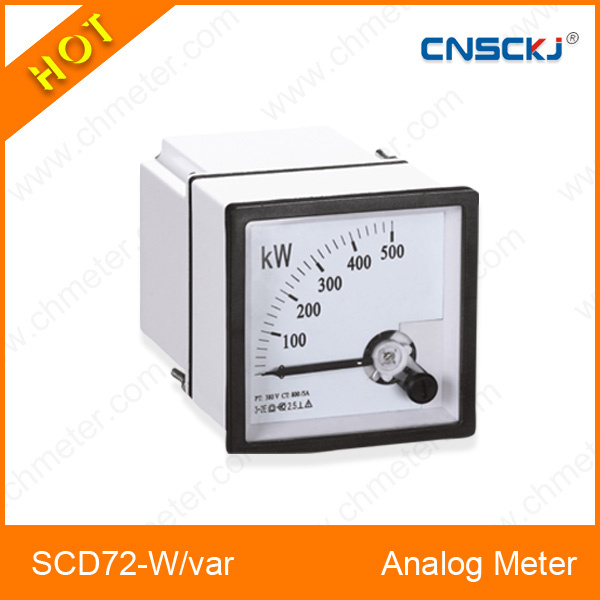

Scd72-W/Var Class 2.5 Active /Reactive Power Meter
| Price: |
US $ 12.1/Piece |
| Trade Terms: |
FOB |
| Min Order: |
500/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
SCD72-W/var |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
100*50 |
| Phase: |
Three |
| Type: |
Power Meter |
| Electric Equipment: |
Single-phase |
| Theory: |
Electronic Meter |
| Installation: |
Direct Connected |
| Measured Signal: |
Continuous Wave |
| Display: |
Analog |
| Usage: |
Test |
Product Description
48, 72, 96 Series MeterFunction:Analog panel meter1.1 The SCD48, SCD72, SCD96 series square instruments are with electromagnetic system and repellencyStructure. The instrucment is constitued by measuring mechanism and indicating device. The casting isMade of fire-retardant ABS engineering plastics, safe measuring terminals and efficient connection. And itUse printing dial and transparent glass cover.1.2 SCD72, SCD96 series DC ammeter, voltmeter, frenquency meter, active/reactive power meter, powerFactor meter are rectifier square meters, they are composed of the two parts magneto-electric measuringMechanism. The casting is made of fire- retardand ABS ENGINEERING PLASTICS, SAFE MEASURING
TERMINAL AND EFFICIENT CONNECTION. AND IT USE PRINTING DIAL AND TRANSPARENT GLASS COVER.
|
Product name |
specification |
measuring range |
accurancy |
|
DC ammeter |
SCD96-A |
50uA-20A (input directly) |
1.5 |
|
|
SCD72-A |
20A-10kA*/60mV/75mV |
1.5 |
|
|
SCD48-A |
(EXTERNAL DEVICE ) |
2.5 |
|
DC voltmeter |
SCD96-V |
5V-750V (input directly) |
1.5 |
|
|
SCD72-V |
450V-450kV*/1mA*/5mA (EXTERNAL DEVICE ) |
1.5 |
|
|
SCD48-V |
|
2.5 |
|
ACammeter |
SCD96-A |
500mA-100A (input directly) |
less than 30A 1.5 |
|
|
SCD72-A |
5A-10kA*/5a (EXTERNAL DEVICE ) |
30A andmore 2.5 |
|
|
SCD48-A |
500mA-30A (input directly) |
2.5 |
|
AC voltmeter |
SCD96-V |
15V-600V |
1.5 |
|
|
SCD72-V |
380V-450kV*/100v |
1.5 |
|
|
SCD48-V |
|
2.5 |
|
Frequency meter |
SCD96-Hz |
45-55hz,45-65hz,55-65hz |
1.0 |
|
|
SCD72-Hz |
rated voltage:100V,220V,380V |
1.0 |
|
Active/reactive power meter |
SCD72-W/var |
100V,220V,380-380kV/100V |
2.5 |
|
|

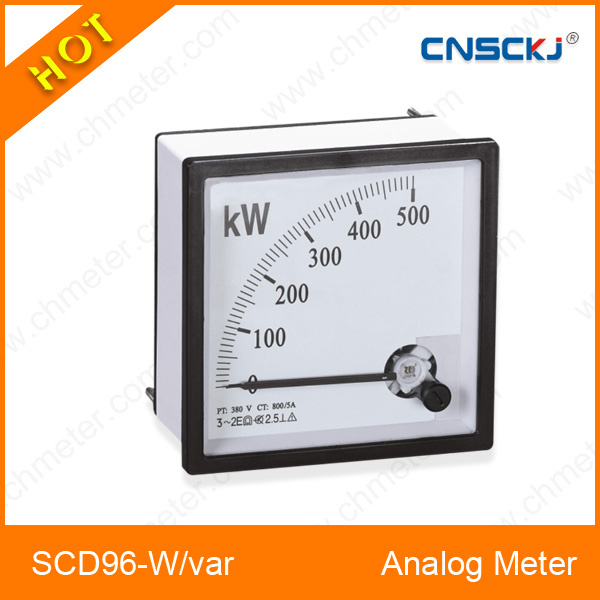

SCD96-W/var |
5A,5A-10kA /5A(EXTERNAL DEVICE) |
2.5 |
|
3-phase power factor |
SCD72-COS |
0.5C-1-1.5L |
|
|
meter |
SCD96-COS |
100V 5A,380V 5A |
|
|
Wenzhou CNSCKJ Meter Technology Co., Ltd. Specialized in manufacturing various digital display meter, which is member enterprise of the National Electrician instrument& Meter Standardization Committee. The products manufactured by our company strictly complied with IEC 51 publication rev4 issued by international electrician Committee and IEC1010 Standard, and meet the National Standard Requirement GB/T7676-1998. CNSCKJ company have passed through ISO9001: 2000 Certificate and CE Certificate.
(1) We are one of organizations chiefly editing the national standard, Mounted Digital Display Electric Measuring Instrument:
(2)We are involved in the edition of national standards, low-voltage Reactive Power Compensation Switching Device and General Specification for Digital Motor Combined Protection Equipment;
(3)We participate in the revision work of industrial standard, low -voltagea Reactive Power Compensation Control Device
(4) We play an essential role in editing the national standard diagram collections for electrical design, commonly-used Pump Control Circuit Diagram and Commonly-USD Blower Control Circuit Diagram, and the reference diagram collections for eletrical design, Fire-fighting Equipment Power Supply Monitoring System.
Under holding up the enterprise tenet: Survive on quality, Create brand with the credit, CNSCKJ sincerely wish friends at home and abroad to cooperate with for brilliant tomorrow!
