| Prod Model: |
PP PE extrusion screw barrel |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Customize |
| Material: |
Nitriding Steel |
| Nitrided Layer Depth: |
0.5-0.8mm |
| Nitrided Hardness: |
HRC56-58 |
| Type: |
Sheet Extruder |
| Screw: |
Single-Screw |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Plastic Processed: |
PE |
Product Description

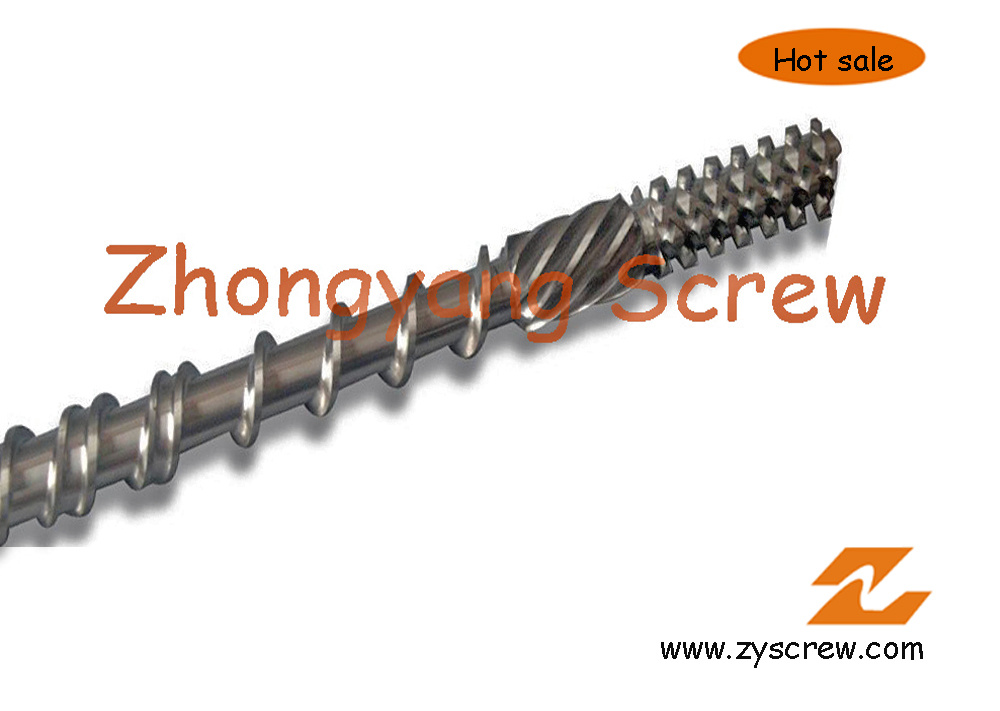

Screw Barrel for PP PE extrusion barrier screw barrel, extrusion screw barrel, bimetallic screw barrel
Specification:
Screw Diameter: Ø 15- Ø 300
L/D ratio: 15-46
Product classification:
Aiming at different plastic products the screw can be chosen from: General type, pin type, barrier type, separation type, and gas-exhausting type, etc.
Base Materials:
(1)38CrMoAlA(JIS SACM645)
(2)42CrMo(AISI 4140)
(3)4Cr5MoSi V1 (JIS SKD-61)
(4)9Cr18MOV
(5)HPT
Bimetallic alloy materials:
1)Fe-based alloy
2)Ni-based alloy/Deloro alloy
3)Co-based alloy
4)NiCo-based alloy
5)Tungsten carbide/Wolfram carbide
Technics:
Heat treatment
High-frequency quenching
Nitriding treatment
Hard-chrome electroplating
Bimetallic alloy welding
Bimetallic alloy centrifugal casting
Technical parameter:
Nitrided layer depth: 0.5-0.8mm
Nitrided hardness: 900-1000HV
Nitrided brittleness: Less than grade 1
Surface roughness: Ra0.4
Linearity of screw: 0.015mm
Hard-chrome plating hardness after nitriding: ≥ 950HV
Chrome-plating layer depth: 0.025-0.085mm
Bimetallic layer depth: 3mm
Warranty and service: 1 year.
Foucs on quality and service.
Experienced manufacturer, we will be the best choice.
Main Base materials
|
1.38CrMoAlA (Nitriding Steel) |
|
2. SKD-61 (Special Tool Steel) |
|
3. 42CrMo (Ultrahigh Strength Steel) |
|
4. DC53 ( Cold Work Die Steel) |
|
5. W6Mo5Cr4V2 ( High-Speed Tool Steel ) |
|
6. HPT |
|
|
Main Alloy Materials |
1. Ni-based alloy/Deloro alloy |
|
2. Tungsten carbide/Wolfram carbide |
|
3. NiCo-based alloy |
|
4. Fe-based alloy |
|
5. Co-based alloy |
|
|
Processing Technics |
1. Heat treatment |
|
2. Quenching |
|
3. Nitriding treatment |
|
4. Bimetallic alloy welding |
|
5. Bimetallic alloy centrifugal casting |
|
6. Hard-chrome electroplating |
|
|
Technical parameters |
Nitriding layer depth |
0.5-0.8mm |
|
Nitrided hardness |
HRC56-58 |
|
Nitrided brittleness |
Less than grade 1 |
|
Surface roughness |
Ra 0.4 |
|
Linearity of screw |
0.015mm |
|
Hard-chrome plating hardness |
≥HRC57 |
|
Chrome-plating layer depth |
0.03-0.09mm |
|
Bimetallic layer depth |
3 mm |
|
Bimetallic layer hardness |
HRC58-62 |
|
Above are main technical information, a suitable screw and barrel will be made according to your requirement. |
