| Prod Model: |
segmented barrel cylinder |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East |
| Screw Elements: |
Segment Screw |
| Type: |
Pipe Extruder |
| Plastic Processed: |
PVC |
| Screw: |
Multi-Screw |
| Automation: |
Automatic |
| Computerized: |
Computerized |
Product Description

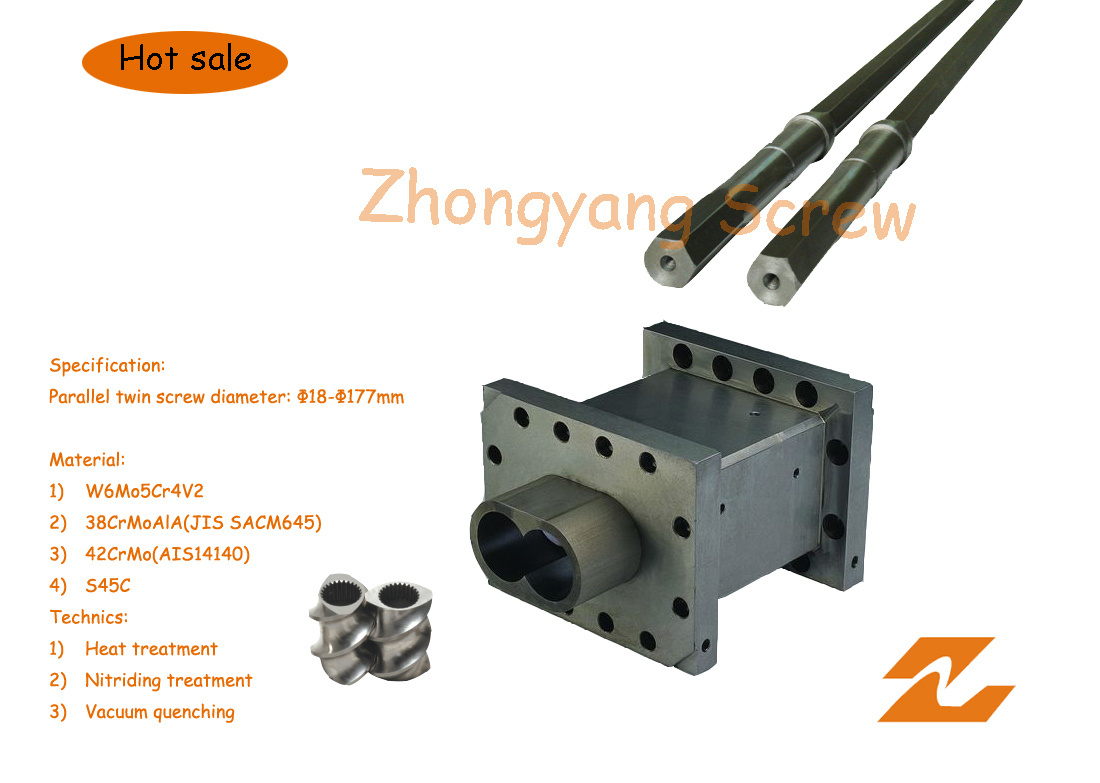

Segemental cylinder, Screw elements and segmented barrel(bimetallic sleeve/bushing) in high quality.
Pls check detailed info. As below:
Specification:
Parallel twin screw diameter: Φ 18-Φ 177mm
Material:
1)W6Mo5Cr4V2
2)38CrMoAlA(JIS SACM645)
3)42CrMo(AIS14140)
4)S45C
Bimetallic material:
Ni-based alloy+tungsten carbide
Technics:
1)Heat treatment
2)Nitriding treatment
3)Vacuum quenching
4)Centrifugal casting
Technical parameter:
D/d ratio: 1.55
Nitrided layer depth: >=0.4mm
Nitrided hardness: 900-1000HV
Bimetallic layer: 3mm
Terms and Conditions:
Production time: 25 days
Packing: Export standard(as customers' requests)
Trade Terms: FOB, CNF, CIF or DHL, TNT
Payment Terms: T/T, L/C
Warranty and service: 1 year
Our advantages:
1)Excellent raw materials
2)Good customer services and technical services
3)Competitive pricing
4)Rigorous quality inspection
5)On time delivery
Experienced manufacturer, we will be the best choice.
| Model | screw diameter | screw material | hardness | barrel length | barrel material | hardness | L/D |
| ZY-35 | 35.6mm | high speed tool steel
wear protect and
corrosion resistant | HRC
58-62 | 150mm/section | bimetallic | HRC
58-62 | 32-56 |
| ZY-50 | 50.5mm | 190mm/section | 32-56 |
| ZY-65 | 62.4mm | 240mm/section | 32-56 |
| ZY-75 | 71.0mm | 290mm/section | 32-56 |
| ZY-95 | 91.0mm | 360mm/section | 32-56 |
