| Prod Model: |
HQLM1500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
5220*2290*3320 |
| Mixing Power: |
83kw |
| Charging Capacity: |
2.8m3/Min |
| Reclaiming Capacity: |
1m3/Min |
| Speed Of Mixing Drum: |
6-10r/Min |
| Water Supply Mode: |
Pneumatic Spray |
| Working Cycle Period: |
5-10min |
| Water Tank Volume(L): |
120 |
| Slump Range: |
160-230 ±30% |
| Type: |

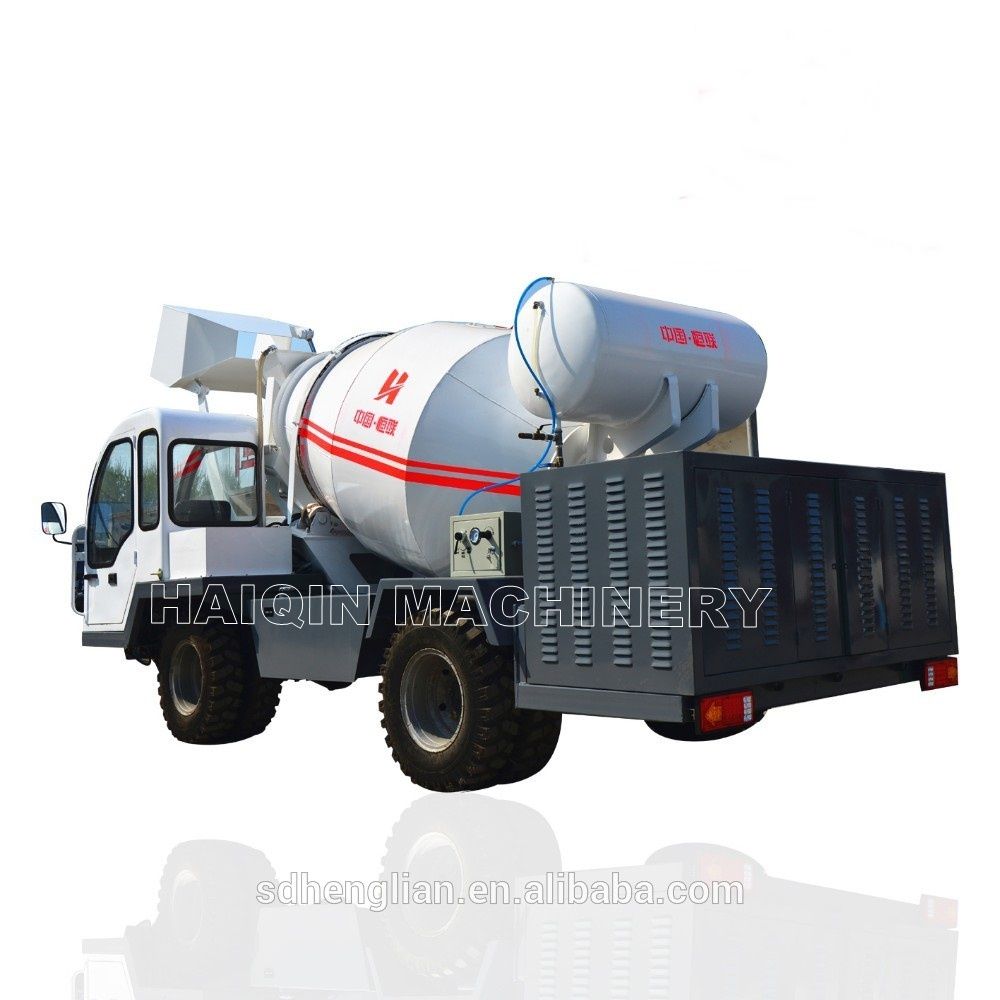

Concrete Mixing Truck |
| Certification: |
SGS |
| Condition: |
New |
| Machining Process: |
Hydraulic |
| Color: |
According to Buyers |
Product Description
1, Small capacity mixing drum design, the angle is lower than same profession, effectively reduce the gravity of vehicles,
2, Rolling ring and mixing drum use 16mn overall forging normalizing manufacturer and processing.
3. Mixing blade with varying pitch design, and simplify the feeding device, ensure the speed faster and mixing performance better.
4. Using professional mature chassis, to ensure the vehicle with high-efficiency performance.
5. Focus on detail, humanized design, fully meet the personalized requirements of customers.
6. We can produce product according to your requirement.
whole vehicle | chassis type |
| self-made |
| curb weight | kg | 5000 |
| max. total weight | kg | 7466 |
| driving type |
| 4*4 |
| wheelbase | mm | 2380 |
| tire | mm | 750 - 16 |
| max. speed | km/h | 40 |
| max.gradeability | ° | 15 |
| outline dimension | (L*W*H) mm | 5220*2290*3320 |
engine | engine type |
| 4RMAZG(QZ2) |
| water-cooled four-stroke direct injection |
| max.power | kw/r/min | 83/2400 |
| max. torque | N.m/r/min | 370/1680 |
| emission | L | 4.5 |
mixing drum | total volume | m3 | 2.8 |
| mixing volume | m3 | 1.5 |
| dip angle | ° | 16 |
| feeding speed | m3/min | ≥2.8 |
| discharging speed | m3/min | 1.1 |
| rest rate | % | ≤1 |
| slump range | mm | 160-230 ±30% |
| hydraulic system | pump |
| CBG2063 |
| motor |
| BMS-160 |
| reducer |
| OKJ-200 |
| water supply system | tank volume | L | 120 |
| water supply way |
| pneumatic spray |
Since 2002, Weifang HainQin Machinery started to work hard and manufacture every kinds of good quality wheel loaders, backhoe loaders, wheel dumpers etc for our customers. Our wheel loaders got CE certificate, ROPS & FOPS Certificate, with E4 standard glass, USA steering system etc. Now our loaders exported to more than 30 countries, and gained high evaluation from our customers.
" Quality first " Is always the rule of Haiqin Machinery. From the parts purchase, production management, machine testing, delivery of shipment etc, all have professional and technical personnel to inspect. This will ensure that each machine of high quality!
" Quick after sales service" is also very important. We have professional technical personnel for technical service and spare parts warehouse for supplying spare parts service. Now we cooperated with DHL/FedEx, and can send the parts to the customers adress in 4 or 5 days!
"Technical research and innovation", We have to keep up with the pace of the international engineering machinery development. Every year, there are 40% of the total profit put into technical research and innovation. This will always enable us to keep the leading position in the construcion machinery field.
We hope to cooperate with the friends from all over the world and make mutual benefits!
