| Prod Model: |
K-MBS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
K-Mbs |
| Hardness: |
62-67HRC |
| Certificate: |
ISO 9001:2008 |
| Payments: |
T/T,L/C,etc. |
| Delivery: |
Within 5~7 Days |
| Package: |
Bubble Bag |
| Application: |
Hardware |
| Material: |
A5052s(Aluminum Alloy), POM Suj2 |
Product Description
1): Brief Description

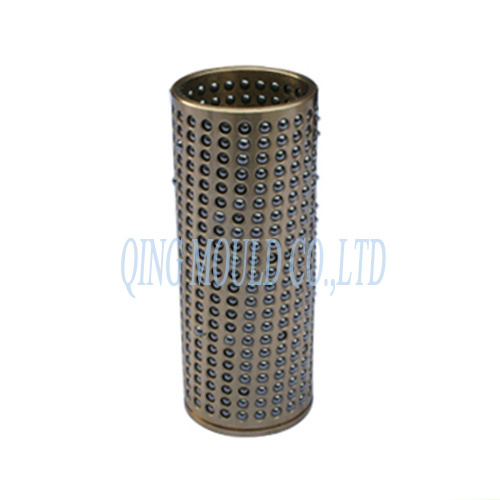

Guide sleeves for rolling guide pin for press die mould
Material: According to different materials A5052S(Aluminum alloy), POM(Polyacetal resin), SUJ2, our guide sleeves divide into the following four type: K-MBSH (High steel: Aluminum alloy steel ball sleeves, K-MBJH (High steel: Resin steel ball sleeves), K-MBS (aluminum alloy steel ball sleeves), K-MBJ (resin steel ball sleeves)
Hardness: 62-67HRC
2): Delievery
Delivery time is usually 5-7 days, if the quantity is large, the time will be specific.
3): Payment
TT and Western union payment or according to negotiation of both parties.
Our factory is a professional company in manufacturing of precise standard mould springs and mould parts, which are applied in precision punching mould, plastic mould, die casting mould and other automatic parts. Our products mainly include various kinds of mould springs, standard small parts, guide bushings, guide pillars, European and American standard car mould guide post sets and so on.
Please specify the detail of thr products when you inquiry
1. The name of the products you interesting
2. The material and specifications you required
3. The products quantity you need
4. If it is convenient for you to provide us the drawing, picture or sample will be more better.
How do you contact us to buy the product
1)Please tell us the specifications of the products, if you convenience to send us the drawing or sample will be best.
2)Then we will offer you the best price, after you confirmed the price, we start to prepare the sample.
3)Last you confirmed the sample, you can place the order. Within 7~10 workdays, we will be sending out the products.
It is my honor to introduce us to you!
1. With more than 15 years production technology experience
2. Have a professional production team
3. Through the ISO 9001: 2008 Qualification Certificate
4.100% guarantee the uncondition return or reproduction for quality problems
|
K-PD |
Guide sleeves |
|
Spring |
|
Applica-tion guide pin |
d |
D
|
D1 |
Catalg NO. |
RL |
D2 |
D3 |
d1 |
P |
Catalog
NO. |
FL
Design-ated unit 22
MM |
|
|
K-PD |
Type |
PD |
Type |
PD |
|
|
20 |
Φ3mm |
25.5 |
20.5 |
K-MBSH
K-MBJH
K-MBS
K-MBJ |
20 |
50 60 75 |
20.5 |
22.5 |
1.0 |
14 |
K-SWP |
20 |
40-180 |
|
22 |
Φ3mm |
27.5 |
22.5 |
22 |
50 60 75 |
22.5 |
24.5 |
1.0 |
14 |
22 |
40-180 |
|
25 |
Φ3mm |
30.5 |
25.5 |
25 |
60 75 90 |
25.5 |
27.9 |
1.2 |
14 |
25 |
40-180 |
|
28 |
Φ4mm |
35.5 |
28.5 |
28 |
60 75 90 |
28.5 |
31.3 |
1.4 |
16 |
28 |
60-200 |
|
32 |
Φ4mm |
39.5 |
32.5 |
32 |
75 90 110 |
32.5 |
35.7 |
1.6 |
16 |
32 |
60-240 |
|
38 |
Φ5mm |
47.5 |
38.5 |
38 |
75 90 110 |
38.5 |
42.5 |
2.0 |
18 |
38 |
80-300 |
|
45 |
Φ5mm |
54.5 |
45.5 |
45 |
75 90 110 |
45.5 |
50.1 |
2.3 |
20 |
45 |
80-300 |
|
50 |
Φ5mm |
59.5 |
50.5 |
50 |
75 90 110 |
50.5 |
55.7 |
2.6 |
20 |
50 |
80-300 |
