Sewage Pump
| Price: |
US $ 68/Piece |
| Trade Terms: |
FOB,CFR |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
WQ15-15-1.1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power:1.5kw: |
Pipe Size: 2inch |
| Flow :15m3/H: |
Head :15m |
| Application: |
Sewage Pump |
| Material: |
Cast Iron |
| Power: |
Electric |
| Performance: |
Blockage-Free Pump |
| Type: |
Submersible Pump |
| Structure: |
Vertical |
| Assembly: |
Blockage-Free Sewage Submersible Pump |
Product Description
WQ non-clog submersible sewage pump/drainage pump (hereinafter called "pump") is integrative motor and pump. Which is manufactured based on absorbing domestic and foreign advanced technology and advantages. Impellor, designed with hydraulic model and made by precision casting, has the advantages of energy-saving, anti-winding and non-clogging, etc. At the same time, this sewage pump has a unique effect in the carriage of solid particles and long fibers garbage. Single or dual impellor structure ensures the sewage pump has the higher efficiency when it has bigger flow. So this kind of sewage pump is an ideal drainage pumps for industries and cities.Main Application:1 Living waste water discharging2 Sewage systems of municipal works3 Sewage systems in factory and mine corporation4 Other transportation of non-corrosive and diluted medium5 Temporary floodwater discharging 6 Waste water discharging of public facility7 Various watered is charging systemOperating Conditions1. Capacity scope: 2~1500 m
³/h;
2. System pressure:
≤0.6mpa;
3. Medium consistency:
≤1.3
×10
³kg/m
³;
4. Motor insulation class: IP68;
5. Rotation: clockwise rotation viewed from motor;
6. Rated Speed: 970-2900r/min;
7. Head scope: 3-45;
8. Medium temperature: -15°C~+60°C;
9. Medium PH scope: 5-9;
10. Motor insulation class: E Grade;

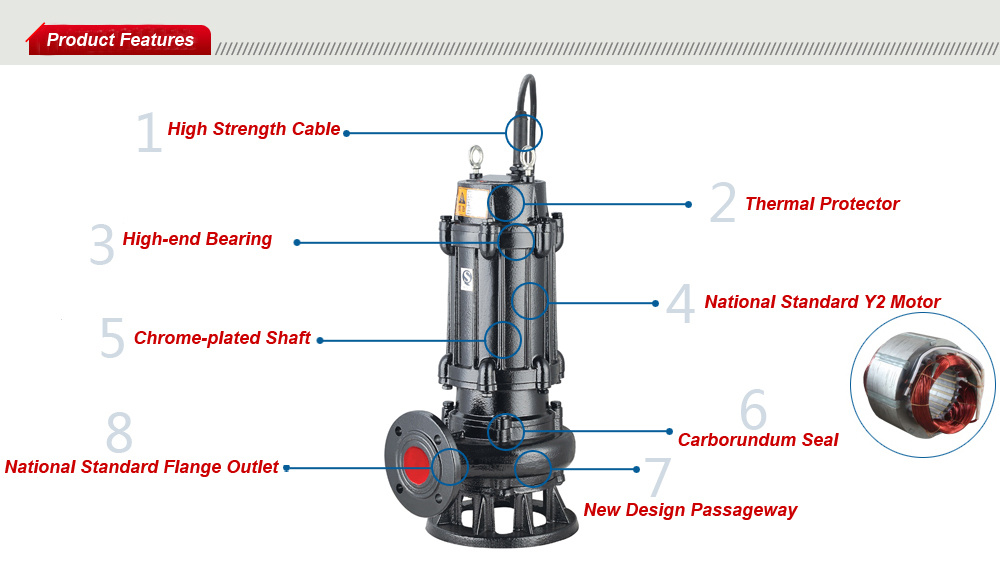

Features of Kaili Sewage Pump1. 100% copperwire
2. Chrome-plated pump rotor (more resistant to wear and corrode)
3. Thermal protector
4. High-end bearing and mechanical seal
5. Flange or Elbow for the water outlet
6. Available for 60HZMaterial:| Structure of pump | Material | Can be selected |
| Pump body | Cast-Iron | Stainless steel |
| Impellor | Cast-Iron |
|
| Pump shaft | 45 # Steel | Stainless steel |
| Cable |
| Arbitrary length |
| Appellation | Model | Flow | Head (m) | Power
(kW) | HP | Voltage (V) | Velocity (r/min) | Pipe size |
| m³/h | l/min | mm | Inch |
WQ
Non-Clogging
Sewage
Submersible Pump | WQ10-10-0.75 | 10 | 166.7 | 10 | 0.75 | 1 | 220/380 | 2860/3000 | 50 | 2 |
| WQ15-10-1.1 | 15 | 250 | 10 | 1.1 | 1.5 | 50 | 2 |
| WQ15-15-1.5 | 15 | 250 | 15 | 1.5 | 2 | 50/63 | 2/2.5 |
| WQ16-18-2.2 | 16 | 267 | 18 | 2.2 | 3 | 380 | 3000 | 50 | 2 |
| WQ16-18-2.2 | 16 | 267 | 18 | 2.2 | 3 | 50 | 2 |
| WQ15-30-3 | 15 | 250 | 30 | 3 | 4 | 50 | 2 |
| WQ25-17-3 | 25 | 417 | 17 | 3 | 4 | 75 | 3 |
| WQ15-36-4 | 15 | 250 | 36 | 4 | 5.5 | 65 | 2.5 |
| WQ60-10-4 | 60 | 1000 | 10 | 4 | 5.5 | 100 | 4 |
| WQ30-20-5.5 | 30 | 500 | 20 | 5.5 | 7.5 | 75 | 3 |
| WQ55-15-5.5 | 55 | 917 | 15 | 5.5 | 7.5 | 100 | 4 |
| WQ45-22-7.5 | 45 | 750 | 22 | 7.5 | 10 | 100 | 4 |
| WQ100-10-7.5 | 100 | 1667 | 10 | 7.5 | 10 | 150 | 6 |
| WQ100-15-11 | 100 | 1667 | 15 | 11 | 15 | 1450 | 100 | 4 |
| WQ140-10-11 | 140 | 2333 | 10 | 11 | 15 | 150 | 6 |
| WQ130-15-11 | 130 | 2167 | 15 | 11 | 15 | 150 | 6 |
| WQ300-7-15 | 300 | 500 | 7 | 15 | 20 | 150 | 8 |
| WQ200-10-15 | 200 | 3334 | 10 | 15 | 20 | 150 | 6 |
| WQ100-20-15 | 100 | 1667 | 20 | 15 | 20 | 100 | 4 |
| WQ180-15-15 | 180 | 3000 | 15 | 15 | 20 | 150 | 6 |
| WQ250-11-15 | 250 | 4167 | 11 | 15 | 20 | 200 | 8 |
| WQ100-22-18.5 | 100 | 1667 | 22 | 18.5 | 25 | 100 | 4 |
| WQ140-15-18.5 | 140 | 2333 | 15 | 18.5 | 25 | 150 | 6 |
| WQ200-12-18.5 | 200 | 3334 | 12 | 18.5 | 25 | 200 | 8 |
| WQ100-30-22 | 100 | 1667 | 30 | 22 | 30 | 100 | 4 |
| WQ300-10-22 | 300 | 5000 | 10 | 22 | 30 | 150 | 6 |
| WQ400-7-22 | 400 | 6667 | 7 | 22 | 30 | 200 | 8 |
| WQ180-30-30 | 180 | 3000 | 30 | 30 | 40 | 150 | 6 |
| WQ250-22-30 | 250 | 4167 | 22 | 30 | 40 | 200 | 8 |
| WQ600-9-30 | 600 | 10000 | 9 | 30 | 40 | 250 | 10 |
| WQ900-7-30 | 900 | 15000 | 7 | 30 | 40 | 300 | 12 |
| WQ180-37-37 | 180 | 3000 | 37 | 37 | 50 | 1000 | 150 | 6 |
| WQ350-25-37 | 350 | 5833 | 25 | 37 | 50 | 200 | 8 |
| WQ600-12-37 | 600 | 10000 | 12 | 37 | 50 | 250 | 10 |
| WQ900-8-37 | 900 | 15000 | 8 | 37 | 50 | 300 | 12 |
| WQ180-45-45 | 180 | 3000 | 45 | 45 | 60 | 150 | 6 |
| WQ400-25-45 | 400 | 6667 | 25 | 45 | 60 | 200 | 8 |
| WQ600-15-45 | 600 | 10000 | 15 | 45 | 60 | 250 | 10 |
| WQ800-12-45 | 800 | 13333 | 12 | 45 | 60 | 300 | 12 |
| WQ400-30-55 | 400 | 6667 | 30 | 55 | 75 | 200 | 8 |
| WQ600-20-55 | 600 | 10000 | 20 | 55 | 75 | 250 | 10 |
| WQ800-15-55 | 800 | 13333 | 15 | 55 | 75 | 300 | 12 |
| WQ350-40-75 | 350 | 5833 | 40 | 75 | 100 | 200 | 8 |
| WQ600-25-75 | 600 | 10000 | 25 | 75 | 100 | 250 | 10 |
| WQ800-20-75 | 800 | 13333 | 20 | 75 | 100 | 300 | 12 |
| WQ400-45-90 | 400 | 6667 | 45 | 90 | 120 | 200 | 8 |
| WQ600-30-90 | 600 | 10000 | 30 | 90 | 120 | 250 | 10 |
| WQ950-20-90 | 950 | 15833 | 20 | 90 | 120 | 300 | 12
|
