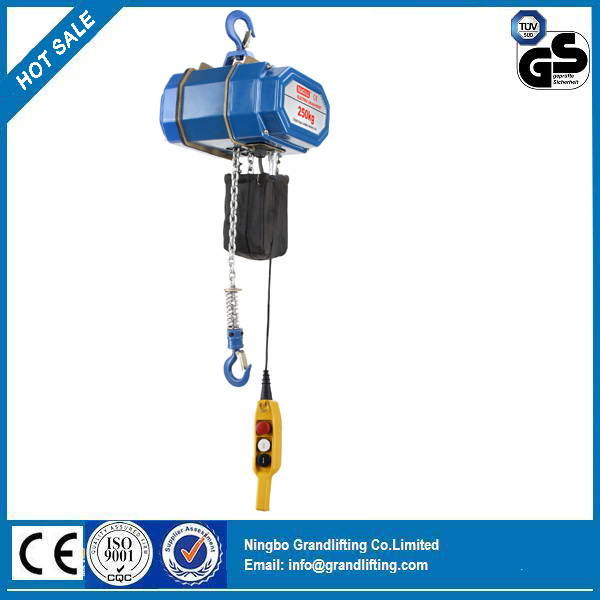

Sg Type Electric Chain Hoist
| Price: |
US $ 166.0/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
20/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
SG type |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hand Chain: |
G80 |
| Capacity: |
0.25t-5t |
| Application: |
Small Crane |
| Power Source: |
Electric |
| Sling Type: |
Chain |
| Certification: |
ISO9001:2000 |
| Maximum Lifting Height: |
Depends |
| Color: |
Customized |
Product Description
Details of Electric Chain Hoists:
1. Electric motor partial outer cover
They are made of high strength aluminum system through compression casting formation.
Advatages: Solid and light
Fast release heat
Continuous use
Enclosed structure
Can be used in the chemical plants, electroplating factories, and other places.
2. Side kind braking
This masterly structure ensure the hoist absolutly safety when the power off. And ensures it is safe when has excess load. Also it combine to the motor braking as the double brake system to strengthen security and durability.
3. Gear
The gear made of alloy steel and through the heat treatment
4. Antiphase protector
Advatages: When power-supply wiring mistake, the control circuit is unable to move.
5. Hooks
They are made by hot forging and heat treatment.
6. Chain
It is made of FEC80 ultra strong heat treatment alloy steel.
Advatages: It is safely approximately when used in the rain water, the sea water, under the chemical and other bad conditions.
7. ISO: M5 /FEM: 2M
Insulation grade: F
8. Protection class (hosit and push button): IP54
9. Powder supply: 3 phase, 200-600V, 50Hz
10. Noise (single/ double speed): 81dB.
| Item No. | Rated load | lift | Lifting Speed | Hoist Motor 1-phase | Load chain | Test Load (ton) |
| (m/min) | Output(kw) | Ins Class | %ED | Dia | No.of falls |
| ton | m | 50Hz | 60Hz | 50Hz | 60Hz | mm |
| ZHEH-SG-0.25T-1 | 0.25 | 3 | 7 | 8.4 | 0.6 | 0.6 | F | 20 | 5x15 | 1 | 0.312 |
| 6 |
| ZHEH-SG-0.5T-1 | 0.5 | 3 | 5 | 6.3 | 0.8 | 1 | 40 | 7.1x21 | 1 | 0.625 |
| 6 |
| ZHEH-SG-1T-1 | 1 | 3 | 5 | 6.3 | 1.2 | 1.4 | 1 | 1.25 |
| 6 |
| ZHEH-SG-2T-1 | 2 | 3 | 2.5 | 3.2 | 2 | 2.5 |
| 6 |
| ZHEH-SG-3T-1 | 3 | 3 | 1.7 | 2 | 3 | 3.75 |
| 6 |
| ZHEH-SG-5T-1 | 5 | 3 | 1 | 1.26 | 5 | 6.25 |
| 6 |
|
|
|
|
|
|
|
|
|
|
|
|

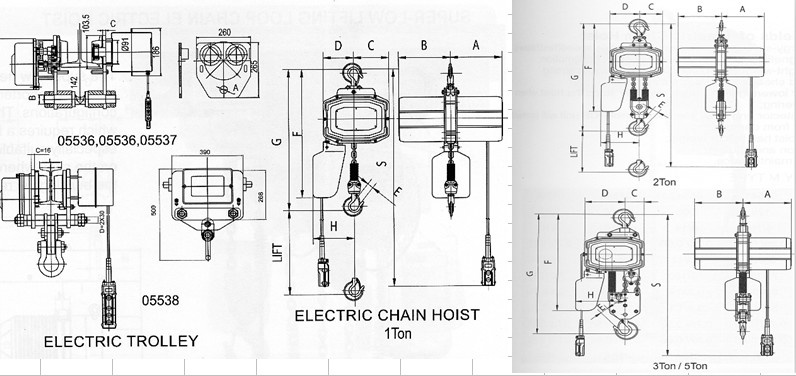

| Item No. | Cable Length | Minimum Headroom (Max) G(mm) | lift | Major Dimensions (approx) (mm) |
| Power Source(m) | Pendants(m) | (m) | A | B | C | D | E | F | H |
| ZHEH-SG-0.25T-1 | 2.6 | 2.6 | 550 | 3 | 170 | 110 | 123 | 123 | 30 | 490 | 135 |
| 5.6 | 5.6 | 6 |
| ZHEH-SG-0.5T-1 | 2.6 | 2.6 | 545 | 3 | 249 | 249 | 168 | 146 | 25 | 565 | 195 |
| 5.6 | 5.6 | 6 |
| ZHEH-SG-1T-1 | 2.6 | 2.6 | 580 | 3 | 249 | 249 | 168 | 146 | 30 | 614 | 195 |
| 5.6 | 5.6 | 6 |
| ZHEH-SG-2T-1 | 2.6 | 2.6 | 740 | 3 | 249 | 249 | 180 | 134 | 33 | 665 | 235 |
| 5.6 | 5.6 | 6 |
| ZHEH-SG-3T-1 | 2.6 | 2.6 | 790 | 3 | 249 | 249 | 100 | 214 | 41 | 720 | 270 |
| 5.6 | 5.6 | 6 |
| ZHEH-SG-5T-1 | 2.6 | 2.6 | 950 | 3 | 249 | 249 | 100 | 284 | 52 | 740 | 334 |
| 5.6 | 5.6 | 6 |
Electric Chain Hoist Sg Type 3 Phase
| Item No. | Rated load | lift | Lifting Speed | Hoist Motor 3-phase | Load chain | Test Load (ton) |
| (m/min) | Output(kw) | Ins Class | %ED | Dia | No.of falls |
| ton | m | 50Hz | 60Hz | 50Hz | 60Hz | mm |
| ZHEH-SG-0.5T | 0.5 | 3 | 6.3/2.1 | 7.4/2.5 | 0.8/0.25 | 1/0.33 | F | 40 | 7.1x21 | 1 | 0.625 |
| 6 |
| ZHEH-SG-1T | 1 | 3 | 6.3/2.1 | 7.4/2.5 | 1.6/0.54 | 1.8/0.6 | 1 | 1.25 |
| 6 |
| ZHEH-SG-2T | 2 | 3 | 3.2/1 | 3.7/1.2 | 2 | 2.5 |
| 6 |
| ZHEH-SG-3T | 3 | 3 | 2.1/0.7 | 2.5/0.8 | 3 | 3.75 |
| 6 |
| ZHEH-SG-5T | 5 | 3 | 1.26/0.4 | 1.48/0.5 | 5 | 6.25 |
| 6 |
|
|
|
|
|
|
|
|
|
|
|
|
| Item No. | Cable Length | Minimum Headroom (Max) G(mm) | lift | Major Dimensions (approx) (mm) |
| Power Source(m) | Pendants(m) | (m) | A | B | C | D | E | F | G |
| ZHEH-SG-0.5T | 2.6 | 2.6 | 545 | 3 | 249 | 249 | 168 | 146 | 25 | 565 | 195 |
| 5.6 | 5.6 | 6 |
| ZHEH-SG-1T | 2.6 | 2.6 | 580 | 3 | 249 | 249 | 168 | 146 | 30 | 614 | 195 |
| 5.6 | 5.6 | 6 |
| ZHEH-SG-2T | 2.6 | 2.6 | 740 | 3 | 249 | 249 | 180 | 134 | 33 | 665 | 235 |
| 5.6 | 5.6 | 6 |
| ZHEH-SG-3T | 2.6 | 2.6 | 790 | 3 | 249 | 249 | 100 | 214 | 41 | 720 | 270 |
| 5.6 | 5.6 | 6 |
| ZHEH-SG-5T | 2.6 | 2.6 | 950 | 3 | 249 | 249 | 100 | 284 | 52 | 740 | 334 |
| 5.6 | 5.6 | 6 |
