| Markets: |
North America,South America,Eastern Europe,Africa,Western Europe |
| Deformation Temperature: |
Hot Forging |
| Molding Style: |
Forging |
| Molding Technics: |
Pressure Casting |
| Casting Method: |
Sand Casting |
Product Description

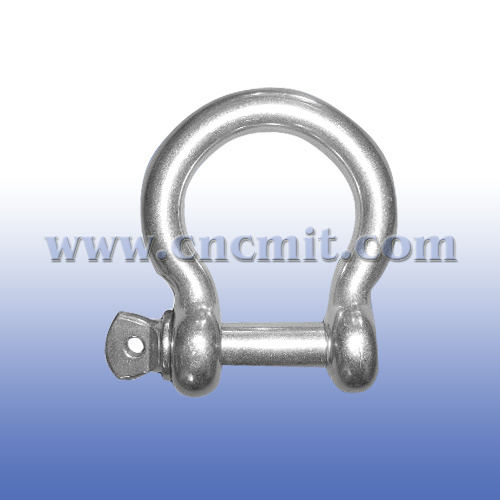

Captive Pin European Type
AISI316 &AISI304 Stainless Steel
Code No. D A L R WLL WT
(mm) (mm) (mm) (mm) (Tons) (kgs)
CM0120-0004 4 8 16 14 0.09 0.009
CM0120-0005 5 10 20 17 0.10 0.016
CM0120-0006 6 12 24 21 0.15 0.030
CM0120-0008 8 16 32 28 0.25 0.070
CM0120-0010 10 20 40 35 0.50 0.125
CM0120-0012 12 24 48 42 0.60 0.225
CM0120-0013 13 26 52 45 0.80 0.360
CM0120-0016 16 32 64 56 1.10 0.520
CM0120-0019 19 38 75 66 1.60 0.930
CM0120-0022 22 44 88 77 2.50 1.500
CM0120-0025 25 50 100 88 3.00 2.200
Qingdao Chenming International Trade Co., Ltd., is a leading stone & Hardware manufacturer and exporter in China with8 years' history. Our company is engaged in stone and Hradware related manufacturing and trading. Our Hradware have formed three series that Stainless Steel, Carbon steel, & Grade 80 Alloy steel of rigging and marine hardware and wire rope accessories according the Specification of DIN, BS, AS, JIS and U. S. Etc. Items can be made according to the customers drawing and sample by forging, casting & pressing technics. Besides the company has been granted comprehensive ISO9000 certification. Various safety test equipments and a professional team with rich experiences are worthy of your trust in CHENMING brand.
