Shafts
| Price: |
US $ 650-680/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
SWC Medium-Duty Cardan shaft for Equipment |
| Load: |
Drive Shaft |
| Stiffness & Flexibility: |
Stiffness / Rigid Axle |
| Axis Shape: |
Straight Shaft |
| Shaft Shape: |
Hollow Axis |

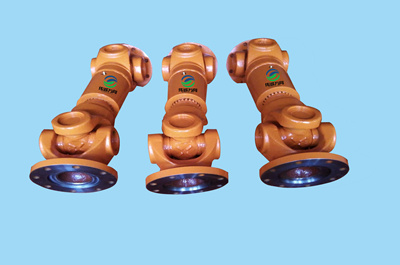

Product Description

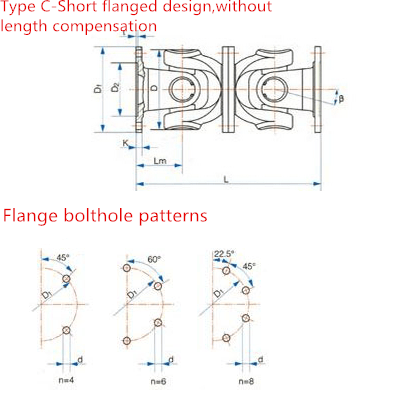

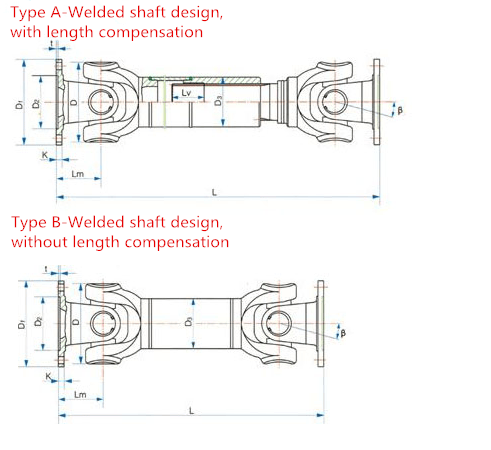

SWC-I Series-Light-Duty Designs Cardan shaftDesigns
Data and Size of SWC-I Series Universal Joint Couplings | Type | Desian
Data
Item | SWC-I
58 | SWC-I
65 | SWC-I
75 | SWC-I
90 | SWC-I
100 | SWC-I
120 | SWC-I
150 | SWC-I
180 | SWC-I
200 | SWC-I
225 |
| A | L | 255 | 285 | 335 | 385 | 445 | 500 | 590 | 640 | 775 | 860 |
| Lv | 35 | 40 | 40 | 45 | 55 | 80 | 80 | 80 | 100 | 120 |
| m(kg) | 2.2 | 3.0 | 5.0 | 6.6 | 9.5 | 17 | 32 | 40 | 76 | 128 |
| B | L | 150 | 175 | 200 | 240 | 260 | 295 | 370 | 430 | 530 | 600 |
| m(kg) | 1.7 | 2.4 | 3.8 | 5.7 | 7.7 | 13.1 | 23 | 28 | 55 | 98 |
| C | L | 128 | 156 | 180 | 208 | 220 | 252 | 340 | 348 | 440 | 480 |
| m(kg) | 1.3 | 1.95 | 3.1 | 5.0 | 7.0 | 12.3 | 22 | 30 | 56 | 96 |
| | Tn(N·m) | 150 | 200 | 400 | 750 | 1250 | 2500 | 4500 | 8400 | 16000 | 22000 |
| | Tf(N·m) | 75 | 100 | 200 | 375 | 630 | 1250 | 2250 | 4200 | 8000 | 11000 |
| | β(°) | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 25 | 25 | 25 |
| | D | 52 | 63 | 72 | 92 | 100 | 112 | 142 | 154 | 187 | 204 |
| | Df | 58 | 65 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | 225 |
| | D1 | 47 | 52 | 62 | 74.5 | 84 | 101.5 | 130 | 155.5 | 170 | 196 |
| | D2(H9) | 30 | 35 | 42 | 47 | 57 | 75 | 90 | 110 | 125 | 140 |
| | D3 | 38 | 38 | 4 | 50 | 60 | 70 | 89 | 102 | 114 | 140 |
| | Lm | 32 | 39 | 45 | 52 | 55 | 63 | 85 | 87 | 110 | 120 |
| | k | 3.5 | 4.5 | 5.5 | 6.0 | 8.0 | 8.0 | 10.0 | 12.0 | 14.0 | 15.0 |
| | t | 1.5 | 1.7 | 2.0 | 2.5 | 2.5 | 2.5 | 3.0 | 4.0 | 4.0 | 5.0 |
| | n | 4 | 4 | 6 | 4 | 6 | 8 | 8 | 8 | 8 | 8 |
| | d | 5.1 | 6.5 | 6.5 | 8.5 | 8.5 | 10.5 | 13 | 15 | 17 | 17 |
| | MI(kg) | 0.14 | 0.16 | 0.38 | 0.38 | 0.53 | 0.53 | 0.87 | 0.87 | 1.65 | 2.14 |
| Flange bolt | size | M5 | M6 | M6 | M8 | M8 | M10 | M12 | M14 | M16 | M16 |
| Tightening torque(N·m) | 7 | 13 | 13 | 32 | 32 | 64 | 110 | 180 | 270 | 270 |
1. Notations: L=Standard length, or compressed length for designs with length compensation; LV=Length compensation; M=Weight; Tn=Nominal torque(Yield torque 50% over Tn); TF=Fatigue torque, I. E. Permissible torque as determined according to the fatigue strengthUnder reversing loads; β=Maximum deflection angle; MI=weight per 100mm tube2. Millimeters are used as measurement units except where noted; 3. Please consult us for customizations regarding length, length compensation andFlange connections.
