| Price: | US $ 1/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | CHBAP-037 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

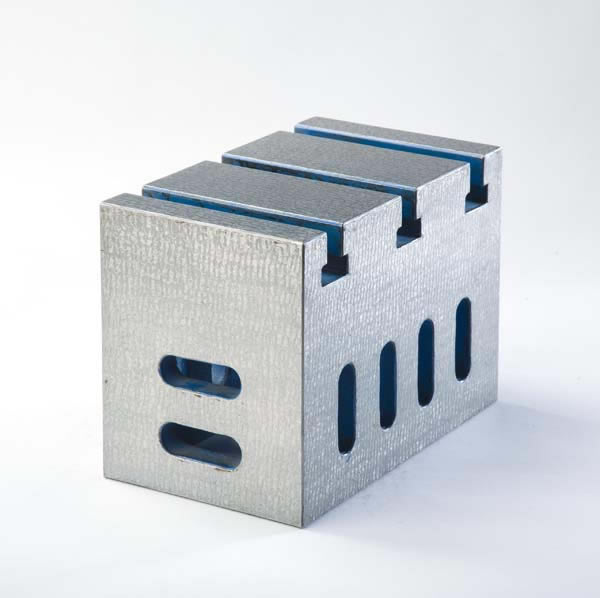

| Product Name | Shanghai Precise Instrument Cast Iron Square Box |
| Brand Name | Chenghua |
| Key Specification | 1.Material:HT200,cast iron 2.Standard:JB/T3411.56-99 3.Specification:100-600mm(Special specification also can be made in accordance with the buyer's request) 4.Prcision Grade:1,2,3 5.Performance: Test,Measurement,Scribing,and so on |
Cast Iron Box Angle Plate Technical parameters:
Special specificaton can be made as your special need.
| Specifications(mm) | The plane degree | The vertical degree,the parallel degree and the v-shaped slot for a bottom and sides of the parallel degree | ||||
| Precision Grade(μm) | ||||||
| Grade 1 | Grade 2 | Grade 3 | Grade 1 | Grade 2 | Grade 3 | |
| 100 | 3.5 | 7 | 15 | 7 | 15 | 30 |
| 150 | 4 | 9 | 17 | 8 | 18 | 35 |
| 200 | 4.5 | 10 | 20 | 9 | 20 | 40 |
| 250 | 5 | 11 | 22 | 10 | 22 | 45 |
| 300 | 12 | 25 | 25 | 50 | ||
| 350 | 13 | 27 | 27 | 55 | ||
| 400 | 15 | 30 | 30 | 60 | ||
| 500 | 35 | 70 | ||||
| 600 | 40 | 80 | ||||
Introduction
Manufacturing,material HT 200,JB/T3411.56-99 standard.
Usage:
For test,measurement,scribing,equipment installation,construction of industrial engineer.Inparts of the parallelism,verticality and inspection and crossed universal square boxes used for inspection or plan the precision of the work piece at any angle line.
ShippingMethods:
We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS. You also can choose your own shipping forwarders. About the large products, we choose shipping by sea.
Payment:
1.L/C
2.T/T
3.Western Union
Packaging Methods:
Wooden case or depend on your requirement
Price:
According to your detail requirement
MOQ:
1PC
Precision Grade:
1,2,3 grade
OurServices:
1.Any inquiries will be replied within 24hours.
2.Professional manufacture,welcom to visit our factory.
3.OEM/ODM available:
1)Paint logo on the product.
2)Customized product according your drawings.
3)Any your idea on product we can help you to design and provide drawings.
4.High quality,practical designs,reasonable & competitive price, fast lead time.
Aftersale Service :
1)All products will have been strictly quality checked in workhouse before packing.
2)All products will be well packed before shipping.
3)We can take over the mounting or clamping activities or mounting plan.
4)We provide the finished project report.Including Contract,Drawings,Quotation Sheet,Proforma Invoice,Technical Description,Manufacturing Progress Control Schedule,Test and Inspection Reports,B/L, Insurance, Commercial Invoice, Packing List, Certificate of Origin.
Chenghua Machinery Sale Ltd. Company,Shanghai
Company Profile:
Shanghai Chenghua Machinery Co.,Ltd is a large-scale business entities specialized in research,development,production and sales of mechanical equipments,mechanical processing,precision measuring tools(cast iron,granite)and component;also,is the only surface plate manufacturers in Shanghai and East China.
Welcome to visit our company when you are free.
We can also produce the Cast Iron Box Angle Plate as your requires or we can provide Technical Support for you. So if there is any thing we can do for you, feel free to contact me.I hope we can do business in the future and make good coorperation with each other.
Any questions please feel free to contact me.
