| Prod Model: |
AF-Z80-300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Z Channel Roll Forming Machinery |
| Machine Size: |
8m*1.4m*1.2m |
| Machine Color: |
Blue or According to Your Requirement |
| Machine Weight: |
About 5.5 Tons |
| Machine Feature: |
Good Quality and Good Price |
| Delivery Time: |
30 Days |
| Useage: |
Construction Material |
| Usage: |
Building |
| Life Time: |
About 10 Years |
| Forging Forming Method: |
Mold Forging |
Product Description

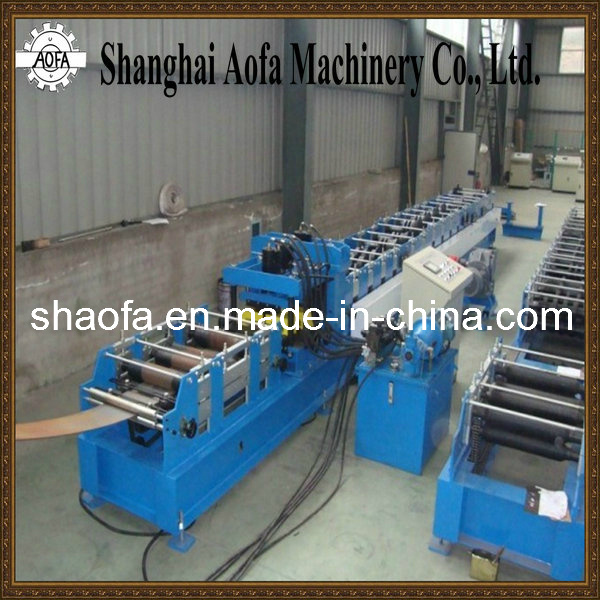

Shanghai z channel roll forming machinery
Z purlin roll forming machine
Z shape roll formin machine
Z section roll forming machine
Working flow:
Decoiler------guiding------leveling------roll forming-------punching-----cut to length-----output table
Machine components:
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
Punching device----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Production support table-----------------------1set
Main technical parameter:
1. DECOILER: 1 SET
(1)Max. Width: 600mm
(2)Inner Diameter: Φ 400 Φ 500 mm
(3)Out Diameter: 1500 mm
(4)Max. Loading Capacity: 3000 kgs
(5)No power: Equipped with break belt device
2. LEVELING DEVICE: 1 SET
(1)Max. Width: 600 mm
(2)Thickness: 1-3 mm
(3)Rollers for Leveling: 5 rollers
(4)Material for Rollers: GCr15 steel
(5)Hardness for Heat Treatment: HRC55 60
3. HYDRAULIC PUNCH DEVICE: 1 SET (1)Adopted with independent 4 pillar hydraulic punches.
(2)Length for Punch Table: 6 m
(3)Motor for Hydraulic Punch: 5.5 kw
(4)Hole-Punching Modular: 3 Pics
4. ROLL FORMING MACHINE: 1 SET
(1)Rolled Material: Cold Rolled Steel Sheet
(2)Material Thickness: 1-3 mm
(3)Rollers: 15 Group
(4)Material for Rollers: GCr15 steel
(5)Material for shaft: GCr15 steel
(6) Hardness for Heat Treatment: HRC55 60
(7)Diameter of shaft: 80mm
(8)Frame panel thickness: 16mm
(9)Bottom frame: 36# H-section steel
(10)Motor Power: 15 kw
(11)Speed Reducer Model: QZ 400
(12)Rolling Speed: 10-15m / min; Adjustable
(13)Driven type: 2"Chain
5. CUT-OFF DEVICE: 1 SET
(1)Material for Cut-Off Modular: Cr12 steel
(2)Hardness for Heat Treatment: HRC55 60
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off
(4)Cut-Off Modular: 1 set
(5)Motor for Hydraulic Stand: 5.5 kw
6. ELECTRONIC CONTROL SYSTEM: PLC 1 SET
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Japan Panasonic
(3) Encoder Brand: Omron
(4)Length Error: ± 2mm
(5) Transducer: Panasonic
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting, we will send you user manual and CD to teach you to install and operate.
If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
Contact person: Arno Hao
Tel: 86-21-67298619
Mobile: 86-18717894416
We mainly supply high quality roll forming machine. We have achieved good performance up to now, sincerely welcome businessmen overseas to establish a long-term cooperation to create a beautiful tomorrow!
Our factory mainly produce all kinds of roll forming machine, for example, rofo sheet roll forming machine, c purlin roll forming machine, glazed tile roll forming machine, deck floor roll forming machine, sandwich panel production line and so on.
Our factory is established form 2010, up to now, we have sold machines to Canada, Bolivia, South Africa, Dubai, India, Russia and many other countries,
Hope we can cooperate happily
