| Prod Model: |
SM-630, SM-660, SM-700, SM-850, SM-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

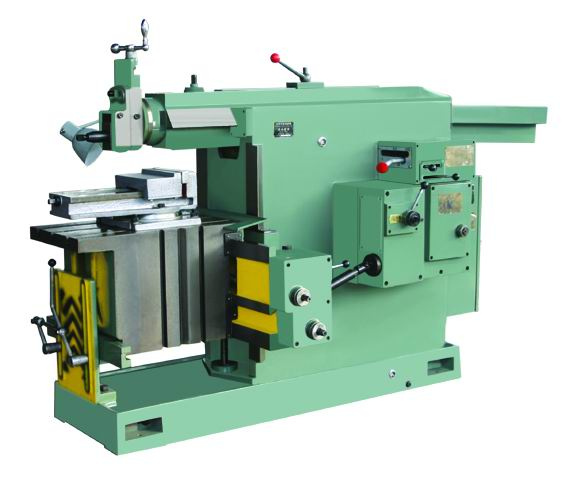

SHAPING MACHINE:
SPECIFICATION UNIT SM-630 SM-660 SM-700 SM-850 SM-1000
Max. Planing Length mm 630 660 700 850 1000
Max. Distance between RAM bottom and worktable surface mm 385 385 420 400 400
Max. Horizontal travel distance of worktable mm 630 630 630 710 800
Max. Vertical travel distance of worktable mm 360 360 320 360 380
Worktable mm 630X400 660X400 700X420 800X450 1000X500
Travel of tool head mm 120 120 125 160 160
Number of RAM strokes/min mm 14, 20, 28, 40, 56, 80 14, 20, 28, 40, 56, 80 11, 20, 38, 52, 72, 100 17, 24, 35, 50, 70, 100 15, 20, 29, 42, 58, 83
Range of table power feed Horizontal mm 0.2-2.5
12 steps 0.15-1.5
12 steps 0.25-3
12 steps 0.3-3
10 steps
Vertical mm 0.08-1.00
12 steps 0.07-0.68
10 steps 0.12-1.5
12 steps 0.15-0.5
8 steps
Speed of table rapid traverse Horizontal mm/min 0.75 1.2 3
Vertical mm/min 0.34 0.58 0.5
T-Slot width Mm 18 18 18 22 22
Main motor power Kw 3 3 4 5.5 7.5
N. W. /G. W. Kg 1750/1950 1870/2070 2700/2900 2940/3140 4870/5150
Tengzhou Shenglong Machinery IMP. &EXP. Co., Ltd. Is one of the leading manufacturers and exporters for machine tools and accessories in the south of Shandong Province. Our main products have grown to 5 series in recent years including milling machine series, milling/drilling machine series, fasteners, accessories, and rotary joints in more than 60 specifications. With stable capability and reliable quality, our products sell well at home and abroad. Our machines are widely exported to more than 70 countries and regions.
Our corporation's purpose and quality strategy is to establish a famous and high grade brand. Strict management, honest attitude and timely service is our eternal policy. At the same time, we have good relations and connections with over 100 manufacturers in China and we can help and provide most machine tools and accessories.
Tengzhou Shenglong Machinery Co., Ltd. Wishes to cooperate sincerely with friends at home and abroad to realize mutual development!
