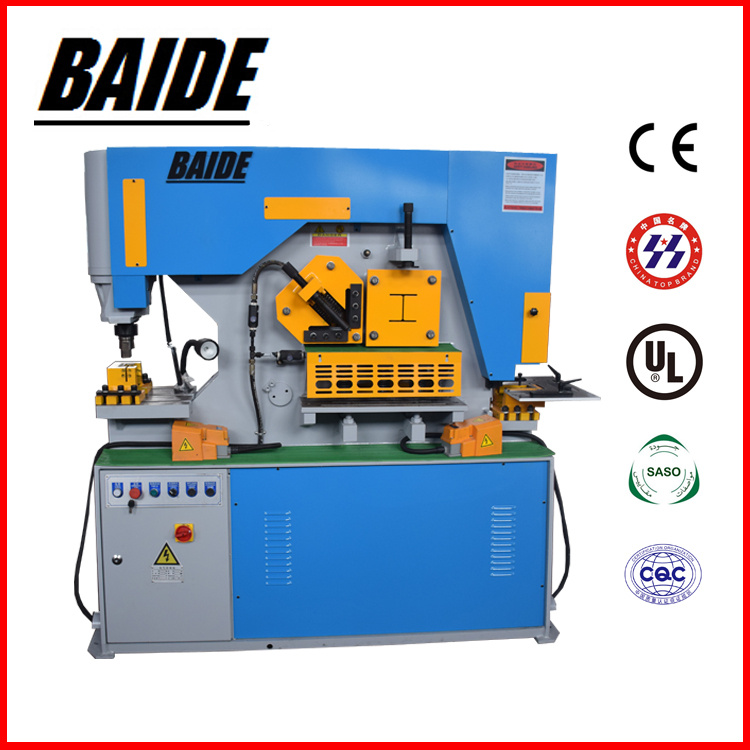

Sheet Metal Cutting and Bending Machine of Q35y-30, Hydraulic Ironworker

Prod Model:	Q35Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Anhui, China (Mainland)
CNC Or Not:	CNC
Brand Name:	Baide
Model Number:	Q35y
Color:	Black and Red
Modle:	Hydraulic
Quality Guarantee:	1 Year
Operation:	Optional
Delivery Date:	30 Days
Package:	Plywood
Forging Forming Method:	Mold Forging

Product Description

Features of Single Cylinder Ironworker Machine, Single Cylinder Iron Worker Machine

1, Baide Single Cylinder Ironworker Machine, Single Cylinder Iron Worker Machine adopt shydraulic driving system.
2, Baide Single Cylinder Ironworker Machine, Single Cylinder Iron Worker Machines are the latest iron workers in China.
3, Various metal plate, square bar, round bar, angle, channel and joist can be cut, punched and notched on the Single Cylinder Ironworker Machine, Single Cylinder Iron Worker Machine.
4, Baide hydrualic ironworker is also equipped with a stop device for cutting.

Function of Single Cylinder Ironworker Machine, Single Cylinder Iron Worker Machine

1. Punching
Full range of universal punches and dies are available. Unique style allows for large angle iron punching and large channel punching.
Large viewing window on stripper swing away design for ease of operation. Large two piece gauging table with rulers and stop as standard fittings. Quick change coupling nut and sleeve for rapid replacement of change.
2. Shearing
Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square bar, channel/beam cutting. Large strong guarding for max safety.
The angle shear has the ability to cut angle at 45° Both top and bottom leg. This gives the operator the ability to make a picture frame corner for perfect welds. Diamond shaped blade for quality cuts that is minimal material lost and deformity.
3. Notching
Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning.
4. Bending
Can also bend the plate below 500mm.

Other detail of Single Cylinder Ironworker Machine, Single Cylinder Iron Worker Machine

1) Robust and accurate steel frame
2) Large punch table with scales
3) Removable bolster for punching flanges and channel and beam
4) 2 independent hydraulic cylinders
5) 2 shielded foot controls
6) 2 Separate Die Openings for oversized punching
7) 5 working stations for wide applications
8) Power inching on all 5 work stations
9) Plate shear support/table and notching table
10) Adjustable stroke controls with indicators on both cylinders
11) Movable work light as standard
12) Overload protection on hydraulic system
13) Electric backgauge
14) Optional bending attachment
15) Optional 5 sets punches and dies

Model Q35Y-16 Q35Y-20 Q35Y-25 Q35Y-30 Punching Pressure (Ton) 55 75 110 140 Shear thickness (mm) 16 20 25 30 Material Strength(Kn/mm 2 ) ≤450 ≤450 ≤450 ≤450 Notching Angle 7° 8° 8° 8° Shear Size of One Stroke (Thickness*Width)(mm) 16*250 8*400 20*330 10*480 25*330 16*600 30*355 20*600 Slide Stroke 80 80 80 80 Stroke Times(time/min) 8 8 6 6 Throat Deepth (mm) 300 355 400 600 Punch Thickness (mm) 16 20 25 26 Punch Diameter (mm) 25 30 35 38 Motor (kw) 4 5.5 7.5 11 Dimension (L*W*H)  (mm) 1640*730*1770 1860*800*1900 2355*960*2090 2680*1040*2300 Weight (kg) 1700 2300 5000 7200 H,Channel,Angle need special oder.

shape round square angel with same side T beam H I beam 90°shear 45°shear 90°shear 45°shear Section             Q35Y-16 45 40*40 125*125*12 50*50*5 120*120*12 60*60*8 126*74*5 126*53*5.5 Q35Y-20 50 50*50 140*140*12 50*50*5 140*140*12 70*70*10 160*86*6 160*60*6.5 Q35Y-25 60 50*50 160*160*14 50*50*5 160*160*14 80*80*10 200*102*9 210*75*9 Q35Y-30 65 55*55 180*180*16 60*60*6 180*180*16 80*80*10 280*124*10.5 280*86*11.5 Q35Y-35 70 60*60 200*200*18 60*60*6 200*200*18 80*80*10 300*130*13 300*89*11.5

NOTES:Thanks for your checking our machine tool.To give you a detailed quote,please choose your model in the specification chart,or tell me the max thickness,length,control demand
We will reply within 12 hours.
