| Price: | US $ 3830-38300/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | QR3210 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: | Burnishing |
| Industry Used: | Electronic Industry |
| Material: | Metal / Coil |
| Power(W): | 44.9 |
| Dimension(L*W*H): | 2200*1560*2860 Mm |
| After-Sales Service Provided: | Engineers Available to Service Machinery Overseas |
| No Pit: | Compact Strcture |
| Advantage: | Precision Higher, Service-Life Longer, Efficiency |
| Machine Type: | Abrator |
| Clean Type: | Clean-in-Place (CIP) |
| Application: | Auto Parts, Other Casting Parts etc |
Shot Blasting Cleaning Machine

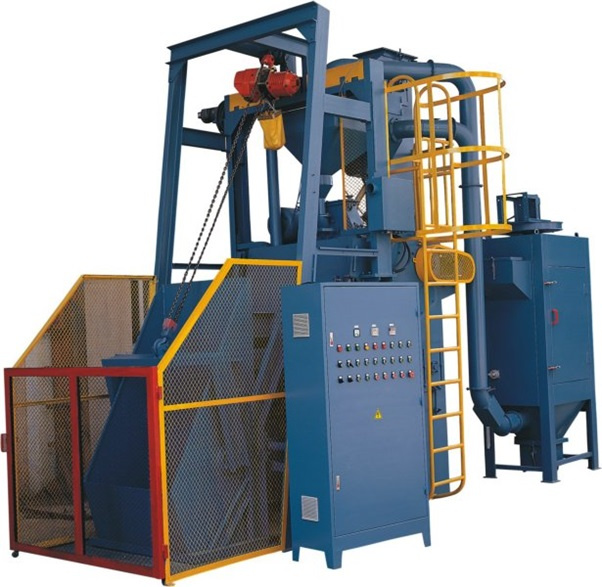

QR3210 ZD series belt shot blast machine
QR3210 Crawler aotomatic feeding cleaning machine for cleaning Shot Casting and Forging,stamping parts ,such as easy to roll the workpiece and to drop the core parts and the cast and on the surface of stick sand ,embroidered layer and oxide ,and other glitches .The main users of machine tool plant ,the pant spring plant ,heat treatment worksshop ,foundry and stamping workshop
Main Technical Parameters
| Productivity | Feeding amount | Maximun weight of single piece | Effective volume | Diameter of end disk | Abrasive flow rate | ventilation capacity | Power consumption | Out line dimention |
| t/h | kg | kg | m | mm | kg/min | m/h | kw | mm |
| 1.5-2.5 | 600 | 30 | 0.3 | 1000 | 250 | 5000 | 24.3 | 3972x2600x4768 |

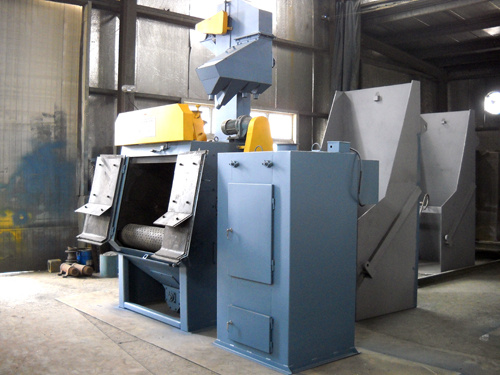

Q32 Tracked Shot Blast Clean -UP Machien
This machine is in keeping with many species ,big medium the batch quantity produce the suface of the work piece in addition to becoming rusty or throwing the pill to enhance .Tidy up the work piece and the hot processing pieces that musts be the mot afraid collision.That machine since can singe machine usage ,can go together with the line usage agine.
Technical parameters
| Item | Q326C | QR3210 | |
| Productivity | t/h | 0.6-1.2 | 1.5-2.5 |
| Feeding amount | kg | 200 | 600 |
| Maximun weight of single piece | kg | 10 | 30 |
| Effective volume | 0.15 | 0.3 | |
| Diameter of end disk | mm | 650 | 1000 |
| Abrasive flow rate | kg/min | 100 | 250 |
| ventilation capacity | 2200 | 5000 | |
| Power consumption | kw | 12.6 | 24.3 |
| Out line dimention | mm | 3681x1650x4200 | 3972x2600x4768 |

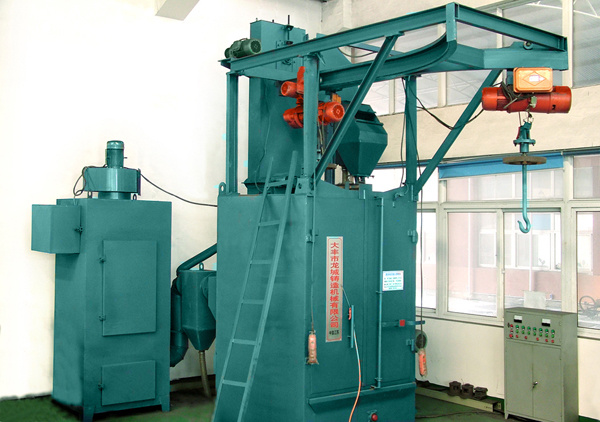

Q37 Hook airless blast cleaning machine
The hook type throws the pill to tidy up the machine tool to throw the pill to have great capacity,tidying up the efficiency high ,the valid space of the room body is big ,the structure tightly packed ,and adopt without a pit form,use towards tidying up the shap structure of the work piece without the special request ,can a machine manufacturing industry and the foundry industries extensively.
Our company can tidy un the work piece to request according to the customer to design the manufacturing for the customer.
Technique parameter
| Item | Unit | Q376 | Q378 | Q3710 | QD3710 | Q3720 | Q3730 | Q3750 | Q3780 |
| Maximum weight of cleaning | Kg | 500 | 1000 | 1000 | 1000 | 2000 | 3000 | 5000 | 8000 |
| Abrasive flow rate | Kg/min | 2*120 | 2*200 | 2*250 | 2*250 | 3*250 | 3*250 | 4*250 | 4*250 |
| Ventilation capacity | m3/h | 5000 | 8000 | 9000 | 9000 | 15000 | 15000 | 18000 | 20000 |
| Lifting amount of elevating conveyor | T/H | 15 | 22 | 30 | 30 | 45 | 45 | 60 | 60 |
| Separating amount of separator | T/H | 15 | 22 | 30 | 30 | 45 | 45 | 60 | 60 |
| Max overall dimensions of suspender | mm | Ø600 | Ø800 | Ø900 | Ø900 | Ø1400 | Ø1600 | Ø1800 | Ø2000 |
| *1100 | *1500 | *1600 | *1600 | *2300 | *2300 | *2500 | *3000 | ||
| Power(excluding dedusting) | KW | 19 | 32.5 | 36.55 | 39.65 | 61.27 | 64.4 |
Our Services:
1.) Pre-sales Service:
Freely provide project designing, Professional suggestions, Quickly Response!
2.) Medium-sales Service:
Accompany you to complete the purchasing, shipping, installing and training
3. )After-sales service:
2years quality guarantee, Life-long Maintenance
Welcome to visit OUR FACTORY, we can show you the workshop and machine in our client factory
