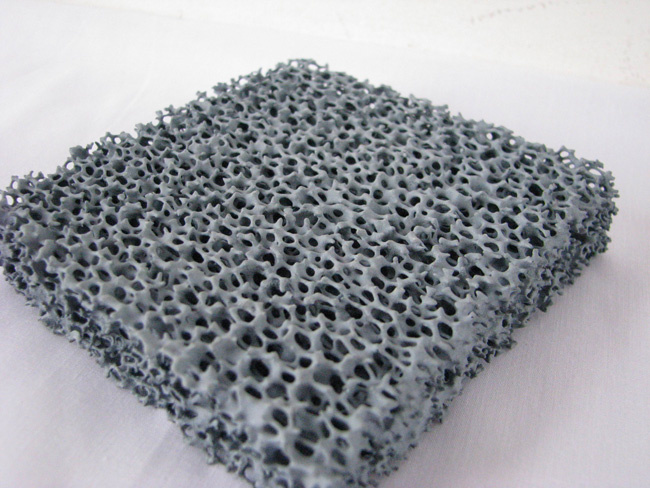

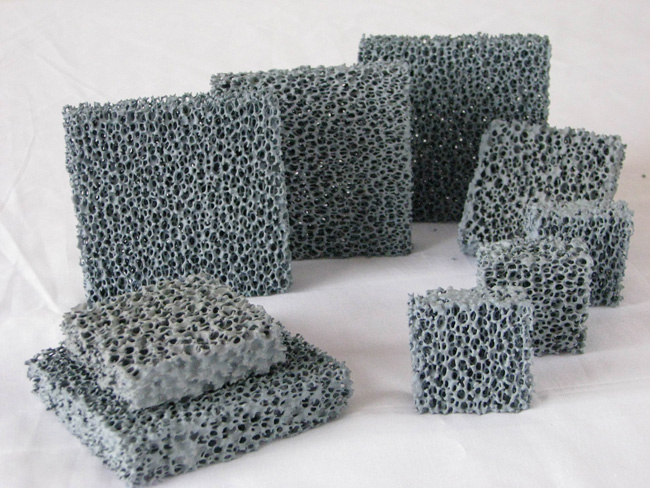

Sic Ceramic Foam Filter
| Price: |
US $ 0.26-0.29piece (depend on size) |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
200piece (depend on size) |
| Pay Type: |
T/T |
| Prod Model: |
CFS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Specification: |
50*50*13mm,200*150*15mm,400*250*15mm,etc |
| Ppi: |
10ppi,20ppi,30ppi,40ppi,50ppi,60ppi |
| Thickness: |
11-50mm |
| Color: |
Grey |
| Usage: |
Steel Iron Foundry |
| Refractoriness (',℃): |
1770< Refractoriness< 2000 |
| Feature: |
Long Time Materials |
| Type: |
Refractory Material |
| Material: |
Silicon Carbide (',SiC) |
| Shape: |
Rectangle, Round, Square |
Product Description
Silicon carbide is thermally conductive (ceramic foam filters are insulating oxide ceramics).
Therefore, there is less temperature gradient between the hot and cold sides of the filter. This
means less superheat is required in the hearth, and less sludging occurs because temperature
can be maintained in the dip- out well. Actual temperature gradients depend on furnace design, well area, metal throughput,
and filter cleanliness. Gradients less than 5 celsius degree exist with steady metal flow - for example, during continuous dip-out, ladling, or pouring - and when oxide buildup, which is insulating, is removed periodically
Applications: Filters for Molten Iron & Alloy, nodular cast iron castings, grey iron castings
and malleable castings,and for the filtration of non-ferrous metals
Material: SiC (Silicon Carbide)
Working Temperature: 1500 celsius degree
Pore Size: 10,20,30,60 PPI
| Feature | CFS |
| Material | SiC |
| Temperature(celsius degree) | ≤1700 |
| PPI | 10~60 |
| Porsity(%) | 80~90 |
| Hardness (Mpa) | ≥1.0 |
| Density (g/cm3) | ≤0.5 |
| Thermal Stability(1100 celsius degree/per time) | 2 |
| AI2O3 (%) | 30~35 |
| SiO2 (%) | 0~5 |
| SiC (%) | 60~65 |
| ZrO2 (%) | _ |
| MgO | _ |
| Others (%) | 0~5 |
| Application | Iron, Copper Casting |
