| Prod Model: |
HIC series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Optional |
Product Description
Specifications
HIC Cyclone Type Dust Collector
1.CE,BV
2.environmentally friendly
3.high efficiency and large productivity
Product Description:

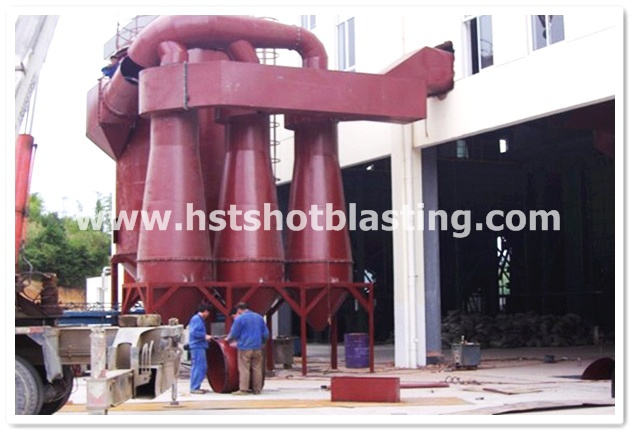

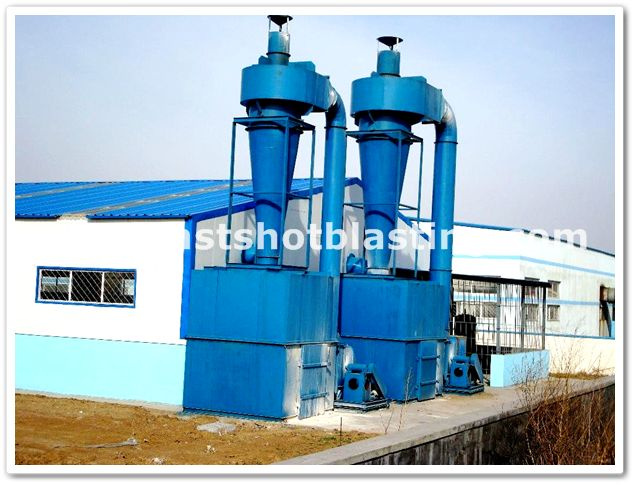

The HIC cyclone type dust collector is one of the widely used filter. It could be used alone, also shared
with parallel and series.
Cyclone dust collector is simple in structure, lower cost, save area, no moving parts, convenient
operation and maintenance, low power consumption, etc.
Applied to metallurgy, casting, building materials, chemical industry, cement and other industries.
Capturing the drying of non-fibrous granular dust and the large proportion of soot dust, used recovered
materials equipment.
Cyclone consist of cylinder,cone,inlet pipe,air outlet,and ash discharge tube etc.
The working processing is Dust-laden air enters the cyclone separator through the air inlet,the airflow by
linear motion into circular motion.
Most of swirling airflow along the interior sidewalls from cylinder spiral downward moving, usually called
the outer spiral airflow.the centrifugal force moves the heavy dust to the interior sidewalls and carries the
m to the base of the unit.
At last, the cleaning air was discharge through the discharge tube,Part of the dust particles is also
discharged from there.
HIC Cyclone Type Dust Collector Technical Parameter:
| Model | Entrance wind
speed (m/s) | air volume
(M3/h) | resistance
(Pa) | Dust removal
efficiency (%) | Size
(mm) | Weight
(kg) |
| HIC150 | 10-20 | 210-420 | 100 | 95 | 380 ×1210 | 33 |
| HIC200 | 370-735 | 466×1916 | 52 |
| HIC250 | 595-1190 | 566×2039 | 75 |
| HIC300 | 840-1680 | 631×2447 | 103 |
| HIC350 | 1130-2270 | 716×2866 | 143 |
| HIC400 | 1500-3000 | 808×3277 | 225 |
| HIC450 | 1900-3800 | 893×3695 | 279 |
| HIC500 | 2320-4650 | 983×4106 | 347 |
| HIC600 | 3370-6750 | 1150×4934 | 612 |
| HIC700 | 4600-9200 | 1325×5176 | 819 |
Our competence and services
- Technical team support to provide suitable proposal according to customer's requirement
- Skilled workers and advanced production equipments to ensure high quality products
- Training programs for operating and maintenance
- Installation and commissioning of new machine
- Timely problem solving support with direct line by 24/7
- Spare parts supply with lowest price for all of supplies equipments
