| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Metal Rolling&Drawing Machine |
Product Description
Featuress;

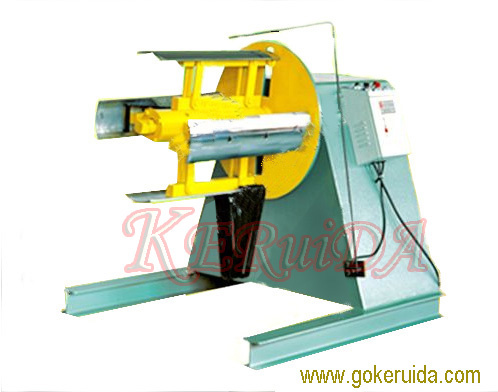

1 ). Suitable for coiling and uncoiling metal sheet or non-metal materials.
2 ). Optional motor drive can use together with feeding equipment.
3 ). Adjustable brake device and heavy duty roll make the material coiling smoother and improve the weight.
4 ). Efficient automatic material feeding equipment, ecnomically and practically.
5 ). Equipped with Japanese magnetic contactor and electronic components, minimum breakdown and long operating life.
| Models | MT-200 | MT-300 | MT-400 | MT-500 | MT-600 |
| Max.Width(mm) | 200 | 300 | 400 | 500 | 600 |
| Max.thickness(mm) | 0~1.6 | 0~3.0 | 0~3.0 | 0~3.0 | 0~0.3 |
| Reducer | 1:60 | 1:60 | 1:60 | 1:60 | 1:60 |
| Motor(HP) | 1 | 1 | 1 | 1 | 1 |
| Coil I.D.(mm) | φ300~460 | φ450~530 | φ450~530 | φ450~530 | φ450~530 |
| COIL O.D.(mm) | φ1200 | φ1200 | φ1200 | φ1200 | φ1200 |
| Max.Load(kg) | 500 | 1000 | 2000 | 2000 | 2000 |
| Machine weight(kg) | 320 | 372 | 415 | 450 | 485 |
| Dimensions(L×W×H) | 750×810×980mm | 920×1100×1070mm | 1050×1110×1080mm | 1200×1110×1080mm | 1300×1110×1080mm |
