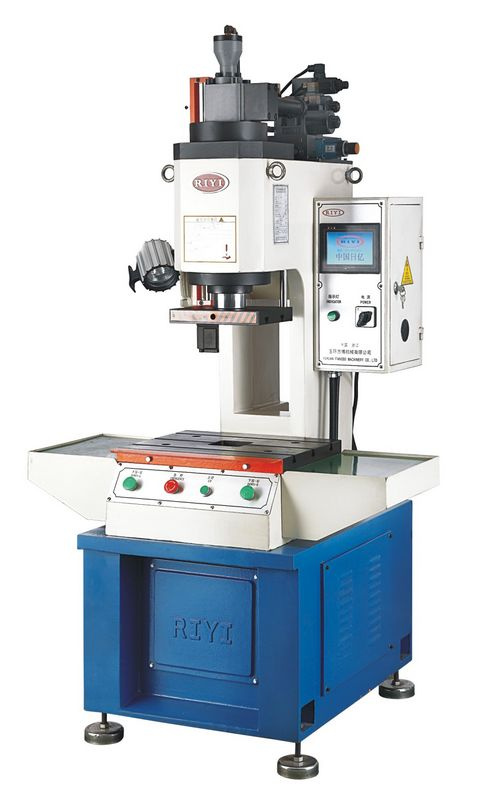

Single Column Hydraulic Press PLC Machine (FBY-CC05)

Single Column Hydraulic Press PLC Machine (FBY-CC05)
Price: US $ 1/Piece
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T
Prod Model: FBY-CC05
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Product feature:
1. The C-body design, whole body cast, high rigid.
2. The stroke position Controlled by Grating and location accuracy.
3. With PLC and the proportional valve control; Each stroke, pressure, speed and packing time are all accurate.
4. Set the machine action Conveniently and flexible by way of Touch-screen.
With PLC control, easy programming process control action.

5. Real time testing pressure with the pressure sensor, reflecting the product's qualify, press-fit too tight or too loose can be noticed by warning system.
6. Key and Foot Switch two cycle start modes. Pressure Speed and time can be adjusted.
7. Widely used in parts of the press forming, stretching, bending, punching, stamping, shaft alignment and press-fit etc.
8. Infrared protection can be configured (Optional).

Technical Parameters:
Theoretical output pressure 50KN(5t)
Rated oil pressure 10Mpa
Max stroke 150mm
Max Opening Height 350mm
Throat Depth 150mm
Max Fast-forward speed 110mm/s
Feeding speed 10~110mm/s
Max Return speed 130mm/s
The size of the working table 410 X 280mm
The height of the working table 720mm
Size of the mold mounting hole Φ 32mm
Power of motor 3.7kw
Power(3Φ AC, 50Hz)380V
Weight 550kg

Our range of hydraulic press have a longer service life. They can be customized as per the specific needs of the customers.
Yuhuan Fangbo Machinery Co., Ltd is a professional commited to medium and small hydropress, single column hydropress, muti-function hydropress, pnenumatic booster machine, pneumatic press machine, hydraulic press machine, hydraulic rotate and riveting machine, design and development, manufacturing and techinal service's high and new technology company. Products are widely used in automative components, household appliance, hardware, rubber, power metallurgy industries equipment-rolling tensile forming bending riveting press hot pressing Processing. Based on import Germany and Japan and other countries advanced Hydraulic technology, and modern marchine design concept on the basis of the actual needs of domestic related industries, develop all kinds of table, the small hydraulic machine series console. Seals, solenid valve abd boosting oil cylinder all use the foreign brand, control system use the German Siemens. This make our machine stabilization and easily operate.

Our company has a professional engaged in the design of hydraulic machine, processing and maintenance service techinal team. Electrial and mechanical structure and the hydraulic control system designed by us independently. And use the modern optimization design theory and analysis software for the structural analysis and optimal design, complete all the products mechanical processing independently.

We also design and manufacture all kinds of special non-standard marchines and toolings according to customer's demand. Our products production cycle is short, and provides transport, installation, debugging services and so on.
