| Prod Model: |
YQ41-200T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor (Kw): |
2.2 -30 Kw |
| Forging Forming Method: |
Free Forging |
Product Description
Features:

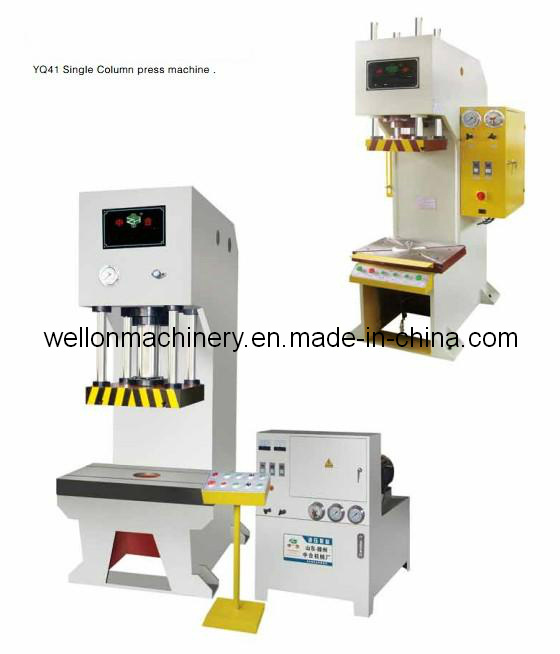

This series of hydraulic press can be used as shafts and other similar parts of the calibration process. Also can be used for shaft and sleeve parts of the press fit and a simple of the original drawing, forming and blanking industries.
The series of hydraulic linkage with hands and feet to manipulate, easy to operate. Hydraulic system use an integrated cartridge valve, compact structure, flexible and reliable action. Power system using double-pump speed, power consumption is small, low noisy.
| Specification | YQ41-20T | YQ41-40T | YQ41-60T | YQ41-100T | YQ41-200T | YQ41-315T | YQ41-500T |
| Nominal pressure KN | 200 | 400 | 600 | 1000 | 2000 | 3150 | 5000 |
| Working pressure of liquid MPa | 20 | 20 | 30 | 28 | 28 | 28 | 25 |
| Throat depth mm | 200 | 220 | 240 | 280 | 300 | 360 | 500 |
| Stroke mm | 240 | 260 | 260 | 300 | 360 | 600 | 600 |
| Working speed mm/s | 18 | 15 | 12 | 18 | 10 | 18 | 30 |
| Return speed mm/s | 25 | 22 | 20 | 30 | 20 | 40 | 60 |
| Distance form Pressure head to the table | 500 | 550 | 700 | 800 | 800 | 1000 | 1000 |
| Dimension of table mm | Front back | 400 | 400 | 450 | 500 | 600 | 800 | 1000 |
| Left right | 500 | 500 | 500 | 700 | 600 | 1000 | 1200 |
| Motor power Kw | 2.2 | 3 | 5.5 | 7.5 | 7.5 | 15 | 30 |
We specialized in exporting many kinds of machine tools for many years, such as CNC machine, Lathe, Milling machine, Radial drilling machine, and other kinds of metal working machine. Our products have exported to the US, Australia, Spain, Germany, Italy, Brazil, Turkey, Iran, Thailand, and other countries. Since its establishment, we won high praise from customers at home and abroad, because of our high quality products, professional service and most competitive price.
With the advanced production facility, strong technical ability and professional production capability, we're sure that we can supply you the qualified products with high quality and best design.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. All machines are inspected
We wish to cooperate sincerely with friends all over the world to realize mutual development.
