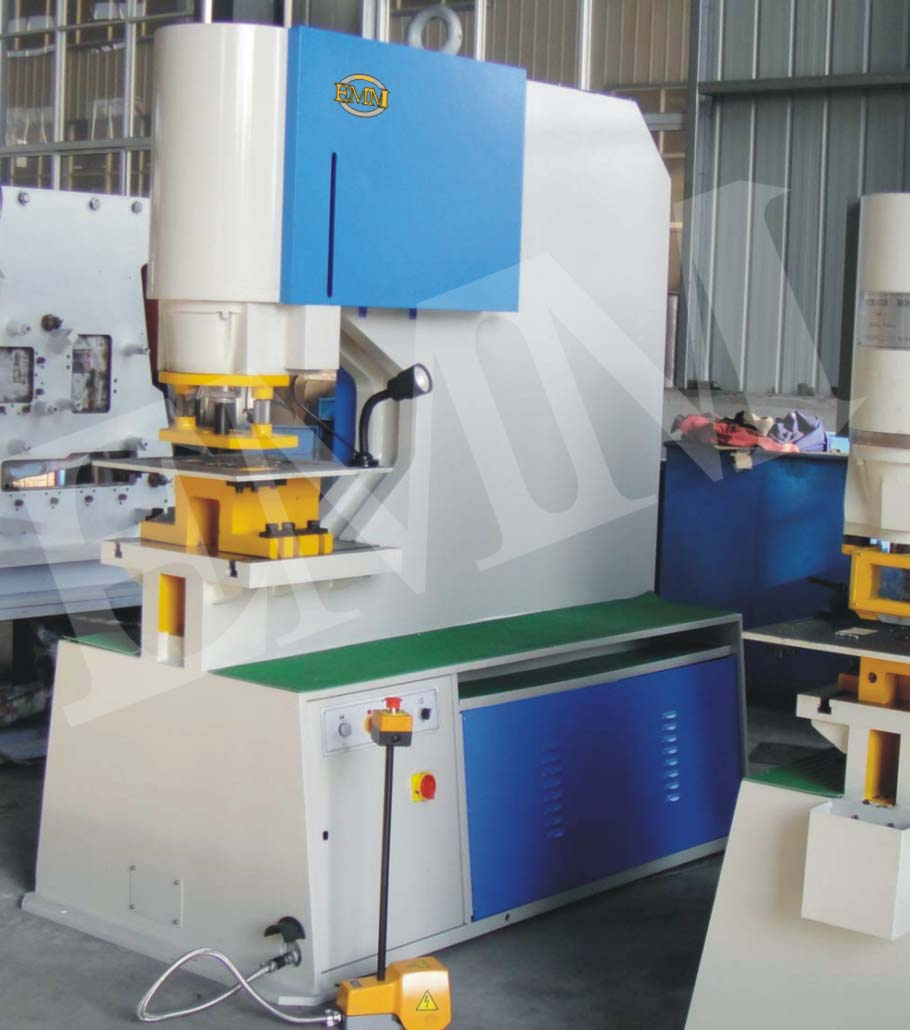

Single Cylinder Punching Machine (Q55Y-165)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Q55Y-165 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Features:
The EMM model of hydraulic punching machines all come equipped with a deep throat of 600mm as standard. Heavy-duty support tables with scales and backstops, universal die holder for punching in plate, flat bar, angle iron and flange of channel and beam are all part of the standard execution. The EMM hydraulic punching machines are available from 60 ton to 200 ton. Furthermore, tooling from competitor's machines and or other brand-names can be used without special machine-modifications. The standard machine comes equipped with a deep throat and universal die-bolster, punching up to 57mm diameter/slot. The front part of the table can be removed in order to punch in large format angle-iron.
|
Model |
Unit |
Q55Y-165 |
|
Punching Pressure Ton |
Ton |
165 Ton |
|
Max. capacity |
mm |
40x32 |
|
Diameter x thickness |
mm |
57x18 |
|
Stroke length |
mm |
80 |
|
Standard throat depth punch |
mm |
600x600 |
|
Largest hole(standard equipment) |
mm |
57 |
|
Largest hole(optional equipment) |
mm |
160 |
|
Maximum section |
mm |
380 |
|
Working height |
mm |
1075 |
|
Corner notch(optional equipment) |
mm |
- |
|
Maximum capacity |
mm |
250sq x 6 |
|
Tube notch(optional equipment) |
|
- |
|
Maximum outside diameter |
mm |
165 |
|
Bending(optional equipment) |
mm |
- |
|
Bar bend. max. capacity |
mm |
250x25 |
|
Sheet bend. max. capacity |
mm |
700x4 |
|
Technical data |
mm |
- |
|
Motor power |
kw |
15kw |
|
Net weight-punch |
mm |
5075 |
|
Machine dim. (Lx W x H) |
mm |
2700x1120x2160 |
Dear Customer! EMM will attend METALLOOBRABOTKA-TECHNOFRUM 2012 in Moscow from 2012.05.28 to 2012.06.01, Our Booth Number is Forum Pavilion FB120. We are warmly welcome you to come.
Extreme Machinery Manufacture Co., Ltd. is located in located in Jingjiang, beside the most prosperous metropolis - Shanghai in China. We are focusing on high-tech and Machinery industries. We short our company to be EMM or EMMCHINA.
EMM is a comprehensive enterprise dealing in economic and technological cooperation, manufacture and import and export processing. Our company has the advantages of very convenient transportation, and good investment and trade environment. with the foundation of an industry base, we are not only trading with customers from at home and abroad, but also providing them with a whole set of comprehensive services.
Our main products include a large range of Metal Working Machinery, Tooling Machinery, Industrial Equipment, Clinching Machines and Technology from Germany. Our business scope covers the fields of energy, machinery, electronics, and automotive parts. We have maintained the markets in China, America, Europe and Southeast Asia and built up long-term business relationships with customers.
We have a team of members who are knowledgeable, experienced, diligent and creative. with our wide range of good quality products and better-and-better services, we have earned a very good reputation in the international market. We have been persistently pursuing what customers need, making business with honesty, doing great efforts to improve ourselves and creating a win-win career side by side with our customers. We sincerely hope that more and more partners can join us and work together for a better future!
After reform, we employed a lot of technicians and engineers who took in the advantages of good experience from home and aboard, making our products better by serving, studying and classifying, and then designing with personalization. Today our hydraulic ironworker and mechanical ironworker machines have kept high techniques, being steady in quality, and become the leading products in China. Especially, our hydraulic ironworker machines, after being changed and improved according to the requests from customers, are well received in world markets, such as Australia, the USA, the Middle East, and Southeast Asia. Now with brand-new attitude, our company looks forward to all the friends who have been caring about and supporting us.
We welcome the old and new friends to visit our company.
