| Prod Model: |
DD217, DD217C, DD862, etc. |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Reference Temperature: |
23°c |
| Working Temperature Range: |
-25:°c to 55:°c |
| Limit Working Temperature Range: |
-40:°c to 70:°c |
| Lifetime: |
>=15years |
| Standards: |
IEC60514 |
| Accuracy: |
1.0,2.0 |
| Connection Method: |
Whole Current Direct Connection |
| Material: |
Customized |
| Reference Voltage: |
120,220,230,240V |
| No. Of Phase: |
Single |
| Display: |
Indicator |
| Installation: |
General Installation Meter |
| Usage: |
Maximum Demand Meter |
| Electric Equipment: |
Single-phase |
| Theory: |
Electronic Meter |
| Power Meter Connection: |
Terminal |
| Measured Signal: |
Continuous Wave |
| Type: |
Energy Meter |
Product Description

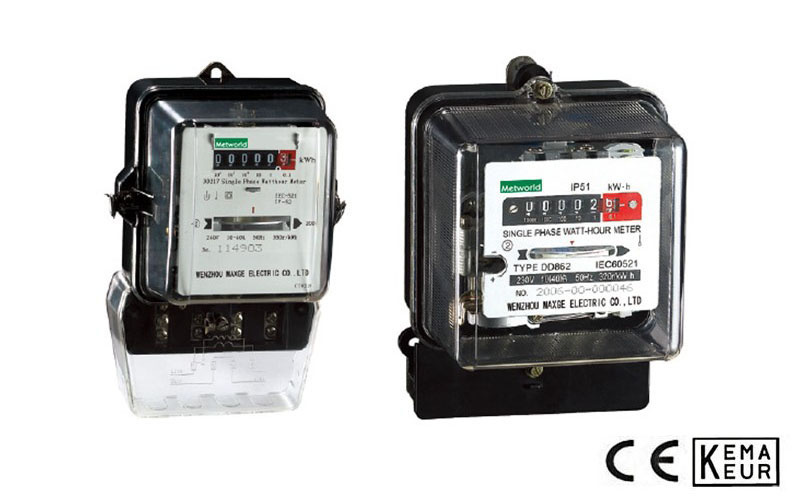

Construction features
The electromagnetic components of the meter are arranged in horizontal position, And the electromagnetic parts are separated one from the other. The voltage core of Semi-enclosed and plugin type is used.
Double jewel or magnetic bearing is used in The bearing system. The register consists of five or six cyclometer or jumping type Drums, and the bi-directional register can be provided in order to prevent rotation reversal on request.
The material of register gear can be metal or delrin.
The material of meter base can be metal, bakelite or polycarbonate.
The material of Meter cover can be glass, metal, ABS, polycarbonate or bakelite.
The material of Terminal block can be bakelite or polycarbonate with 10% glassfiber.
The material of Extended terminal block cover can be metal, ABS, polycarbonate or bakelite.
Meter Frame is formed by die-casting aluminum alloy, and then undergoing heating process To ensure the meter has the advantages of high mechanical strength and stability in Construction.
We can also design and construct the special energy meters as per the Requirements of the buyers with the appointed standards.

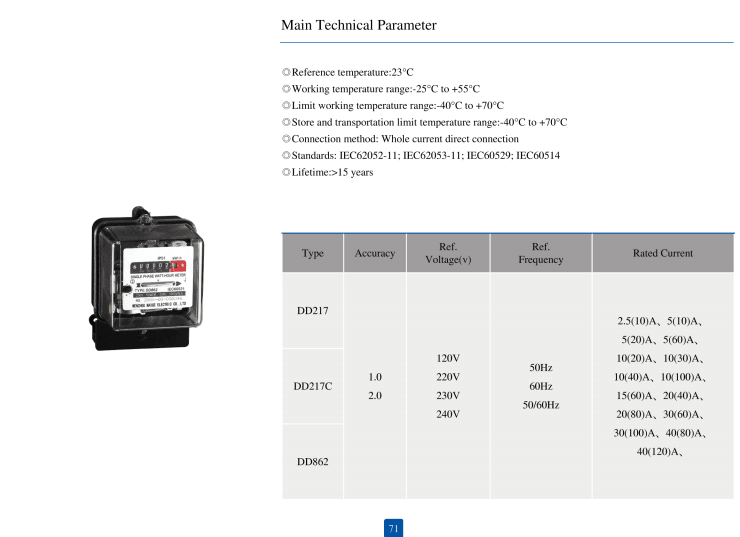

Main Technical Parameter
Reference temperature: 23° C
Working temperature range: -25° C to +55° C
Limit working temperature range: -40° C to +70° C
Store and transportation limit temperature range: -40° C to +70° C
Connection method: Whole current direct connection
Standards: IEC62052-11; IEC62053-11; IEC60529; IEC60514
Lifetime: >15 years
Catalogue
Number | Accuracy | Ref.
Voltage(v) | Ref.
Frequency | Rated Current |
| DD217 | 1.0
2.0 | 120V
220V
230V
240V | 50Hz
60Hz
50/60 Hz | 2.5(10)A 5(10)A
5(20)A 5(60)A
10(20)A 10(30)A
10(40)A 10(100)A
15(60)A 20(40)A
20(80)A 30(60)A
30(100)A 40(80)A
40(120)A |
| DD217 C |
| DD 862 |
