| Prod Model: |
DD282 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
Comply with IEC62053-21 |
| Type: |
Energy Meter |
| Display: |
Indicator |
| Electric Equipment: |
Single-phase |
| Theory: |
Induction Meter |
| Installation: |
Direct Connected |
| Usage: |
Standard Electric Energy Meter |
| Measured Signal: |
Continuous Wave |
| Power Meter Connection: |
Terminal |
Product Description
APPLICATION:

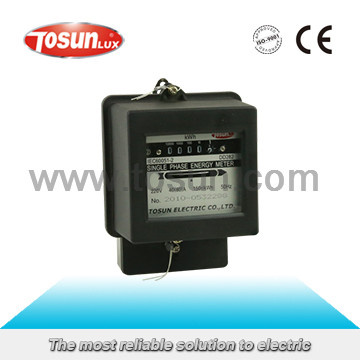

DD282 Single Phase Energy Meter is induction meter which is applicable to measure the rated frequency 50Hz and power loss in electrified wire netting. All technical targets completely conform to IEC62053-21.
SPECIFICATION:
Type |
Accuracy
(Class) |
Rated Voltage(V) |
Rated Current(A) |
Overload
Capacity |
Starting
Current |
Insulation |
DD282 |
2.0 |
220 |
2(4),2.5(5),3(6),5(10),10(20),
20(40),30(60), 40(80) |
200%1b |
0.5%1b |
AC voltag 2kv for 1minute
impluse
voltage 6kv
|
FUNCTION AND FEATURES:
1. Sub-closed iron core
2. The die-casting frame is made of alloy aluminum, to assure the magnetic line stably and reliably.
3. Meter bearing has three kinds, may select dual jewel, magnetic thrust or magnetic float;
4. May select 5+1 digits or 5 digits register;
5. May select 5 kinds of cases: bakelite, PC, ABS plastic, glass and aluminum.
