| Prod Model: |
ZY156 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Customize |
| Material: |
Nitriding Steel |
| Nitrided Layer Depth: |
0.3-0.7mm |
| Nitrided Hardness: |
HRC56-60 |
| Type: |
Pipe Extruder |
| Screw: |
Twin-Screw |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Plastic Processed: |
PVC |
Product Description
Single screw barrel for extrusion blowing machinary
Technical Information
Base Materials:
(1)38CrMoAlA(JIS SACM645)
(2)42CrMo(AISI 4140)
Bimetallic alloy materials:
(1)Fe-based alloy
(2)Ni-based alloy/Deloro alloy
(3)Co-based alloy
(4)NiCo-based alloy
(5)Tungsten carbide/Wolfram carbide
Technics:
Heat treatment
Plasma nitriding
Technical parameter:
Nitrided layer depth: 0.3-0.7mm
Nitrided hardness: HRC56-60
Nitrided brittleness: Less than grade 1
Surface roughness: Ra0.4
Linearity of screw: 0.015mm
Warranty and service: 1 year
Focus on quality and service.
Experienced manufacturer, we will be the best choice.
Workshop Display:
Products Application:
1)General Plastics, PVC
2)Material compounds CACO3, glass fiber, recycle materials, stabilizer
3)ABS,TPR,TPU,PMMA,C-PVC,UPVC,RPVC,PET,EVA,PU etc
4)Scrap and waste plastic and PVC recycling
5)Modified engineering plastics
Production time: About 20-30 days after we receive the advanced payment

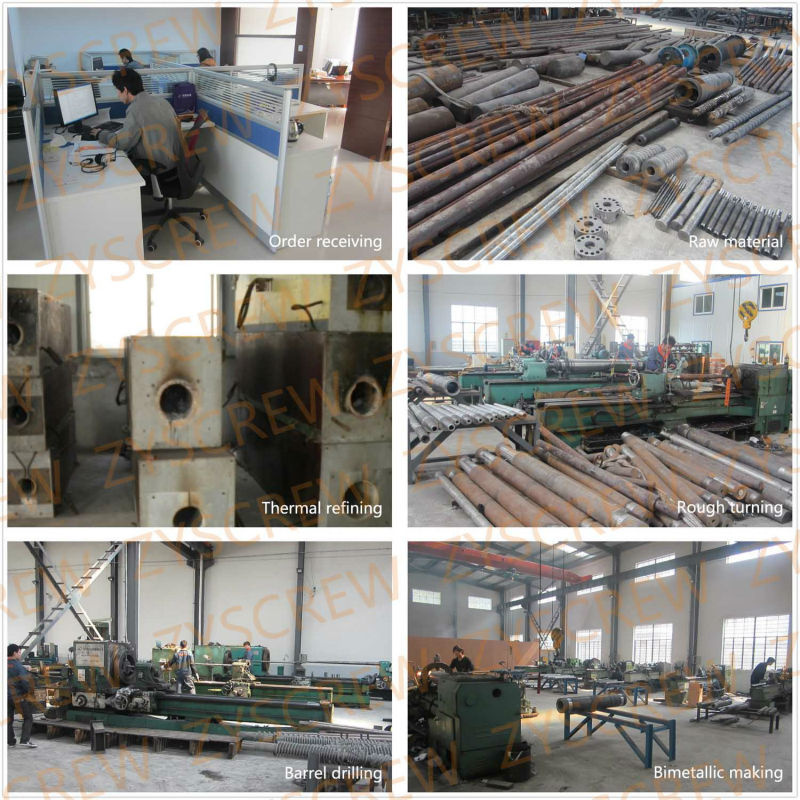

Production Process:
Receiving orders - Designing & Drawing confirmation - Blanking Thermal refining - Heat treatment - Rough Turning - Polishing - Drilling for barrel - Semi Finishing Machining - Bimetallic welding - Centrifugal casting for barrel - Polishing - Nitriding treatment(120 hours) or High frequency quenching - Hard-chrome plating - O.D. Grinding - Honing for barrel - Alignment - Polishing - Inspecting - Packing & Shipping ZY SCREW's advantage:
First-class designing and researching team;
High quality and durable products of screw barrel;
Most professional sales who can serve for you timely;
Best customer service especially after-sale service;
Powerful company's strength support long-term cooperation.
Welcome to contact us, Camille will reply you timely!
|
Type |
Model |
Hardness
(HRC) |
Wear resistant |
Corrosion resistant |
Thickness |
Application
Glass Fiber |
|
PTA weld |
J1 38CrMoAlA
Ni-base alloy |
45-58 |
Excellent |
Special excellent |
1.5~3mm |
Under 10% |
J2 SKD61
Ni-base alloy |
45-58 |
Special excellent |
Excellent |
1.5~3mm |
Under 15% |
|
Nitriding |
J3 Nitrided |
HV more than 800 |
Good |
Good |
0.25mm |
/ |
Zhejiang Zhongyang Screw Manufacturing Co., Ltd is a professional and dedicated designer, manufacturer, rebuilder and distributor of screws, barrels and assembly parts for plastic and rubber machines.
With our business philosophy of "quality oriented and customers foremost", Zhongyang keeps improving to offer excellent products and services to customers. Our commitment to customer satisfaction is priority number one at ZHONGYAG.
Till now, we have served more than 100 customers from 41 different countries all over the world. And we are very confident we will have more and more customers because our teams always strive to complement and meet our customers' needs in all aspects.
You can depend on us for:
Working Attitude: Every employee at ZHONGYANG is a good team player. We have enthusiasm on our jobs and we do our jobs seriously and responsibly, every employee wants to do the best to contribute to our company's growth at ZHONGYANG.
Factory Strength---- We are located in Jintang town, Zhoushan city of Zhejiang provice. Our factory occupies 10, 000M2 and is well equipped with kinds of advanced CNC processing machines. With 12 years' industrial know-how and experience, we have grown to be a specialist in the industry. We have our own professional teams in the sales, design, production, inspection and customer service areas. And we are always ready to help you with your specific needs.
Quick Response---- Our sales team is well-trained with good qualifications and is passionate and ambitious, we respond quickly and efficiently.
Technical Capabilities ----- We have a group of experienced and creative engineers, they help to solve customers' technical problems with their expertise and they do excellent jobs in designing new screw and barrel to achieve superior performance of the screw and barrel.
Good Products ----- As an ISO certified enterprise since 2006, we established complete quality control system and step by step, we implement the system thoroughly from the first production process to final products now. Every production process in under strict inspection to ensure that only qualified products are sent to our customers.
After Service-----We archive every customer from the beginning of our cooperation and we will follow up till customers receive our products and trial them with no problem. If by any chance you meet any problem on our products, our after service team will work out solution efficiently. And we could send engineer to your place under necessary circumstance no matter you are in China or abroad.
Our every team will work closely with you to provide you with the best possible solutions in timely manner.
We believe you will get good user experience working with us. And we welcome the opportunity to serve your needs.
