| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thickness Of Coil Sheet: |
0.3-0.8mm |
| Tile Type: |
Colored Steel |
| Color: |
Blue |
| Place Of Origin: |
Botou, Hebei |
| Use: |
Roof |
| Forming Speed: |
8-10m/Min |
| Hydraulic Pressure: |
10-12mpa |
| Main Motor Power: |
3kw with Cycloidal Reducer |
| Kind Of Drive: |
0.6 Inch Chain Link Bearing |
| Type: |
Roof Tile Roll Forming Machine |
Product Description

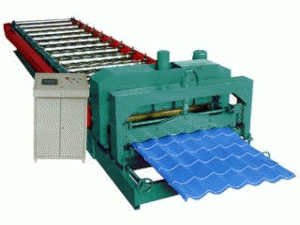

Single sheet roof sheet roll forming machine
Parameter:
1. Suitable to process: Colored Steel plate, galvanized board, aluminum sheet
2. Width of the plate: 1250mm
3. Rollers: 18ows
4. Rolling material: Forging Steel 45#
5. Rolling galvanization thickness: 0.05 mm
6. Material of the cutting blade: Cr12
7. Hydraulic oil: 40#
8. Dimensions: 8.4*1.55*1.51m
9. Power: 4+4kw
10. Thickness of the plate: 0.3-0.6mm
11. Productivity: 8-10m/min
12: Diameter of the roller: 70mm
13. Weight: About 4.1 T
14. Voltage: 380V 50Hz
15. Processing precision: Within 1.00mm
17. Transportation: One complete equipment need one 40feet container to hold
18. Orders & Payment Term: 30%deposit, and balance before delivery
16. Equipment components: Man-made uncoiler--Roll forming machine--computer control system--hydraulic control system--press forming--cutting
19. Standard components: Chain 1 PC, Hydraulic oil pipes: 2 PCS, electromagnetism valves 1 PCS. Limit switch: 2 PCS, counter: 1 PCS relay: 2 PCS
20. This products is widely used in various of industrial building, warehouse, heat house inside and outside wall and bottom board for compound roof tile, and also used in billboard and fencing for building.
Botou xinsheng roll forming machinery factory, dedicated to focus on cold_formed metal plate roll forming equipment and manufactureing, now has a unique mode of management and product development capacity, ranking with the industy-leading level. My plant products due to structural light, design reasonable, constantly updated and greatly favored customers.
My factory is located in the Bohai Sea Economic circle, China foundary city-Botou city, north of Beijing and Tianjin, East Bohai Sea, 104, 106National Road, Beijing-Shanghai Railway, Beijing-Fuzhou Expressway runs through the city, convenient transportation and location.
My factory'main products include: Glazed tile equipment, building equipment contractors board, C/Z shaped steel forming equipment, composite plate molding equipment, automobile car plate, anode plate, such as dust removal equipment, and in accordance with the actual needs of the user-made production. At the same time provide users with pre-sales, after a series of technical guidance, production, installation, repair through-train service.
