| Prod Model: |
LT-YQJ-11, LT-EQJ-24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Automatic |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Application: |
Machinery & Hardware |
Product Description

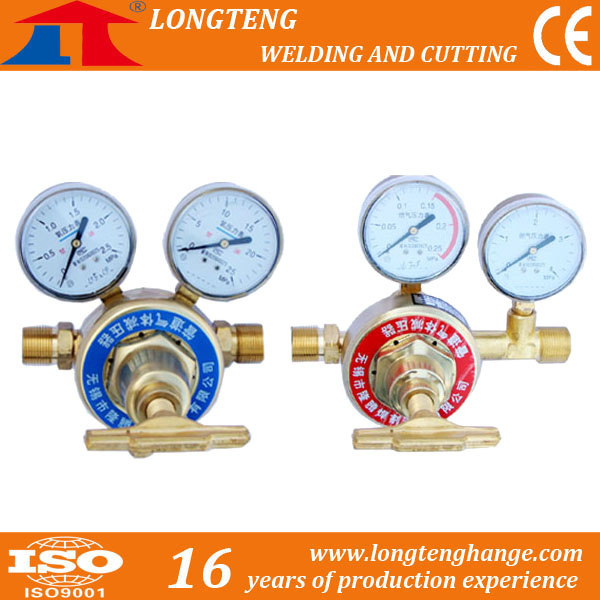

Single Stage Gas Regulator
1)Quick Detail:
1. Single stage high pressure gas regulator
2. Use for gas supply control of CNC cutting machine
3. Material: Brass
2)Structural Features:
1. Single stage pressure reducing structure
2. Use the high quality forging brass for upper cover and its body structure
3. With the sintered bronze filter screen at the inlet gas pipe.
4. For the lining in side of the upper cover, use the high quality stainless steel to make much smoother for pressure reducing.
3)Applications:
Gas regulator is a adjusted device which can reduce the high pressure gas to low pressure gas, can maintain the pressure.
1. A big-flow gas distributing system.
2. Designed for the pressure regulating system of the cylinder centralized gas supply device.
3. A high- precision pressure regulating device.
4. The input pressure is no more than 15Mpa and the output pressure is between 0.01 and 1.6Mpa.
5. When both the output pressure and the output flow change, it can stabilize the output pressure and work continuously for a long time.
6. It uses brass strainer inside, which can effectively filter gas impurities. The strainer is easy to be replaced.
4)Specifications:
Model No.
|
Gas service
|
Inlet connection
|
Outlet connection
|
Inlet pressure (Mpa)
|
Outlet pressure(Mpa)
|
Outlet flowmeter(M3/h)
|
YQJ-11
|
oxygen/carbon dioxde
|
G3/4
|
G3/4
|
15
|
0.01~1.6
|
100
|
EQJ-24
|
acetylene/propane/natural gas
|
G3/4-LH
|
G3/4-LH
|
2.5
|
0.01~0.15
|
40
|
