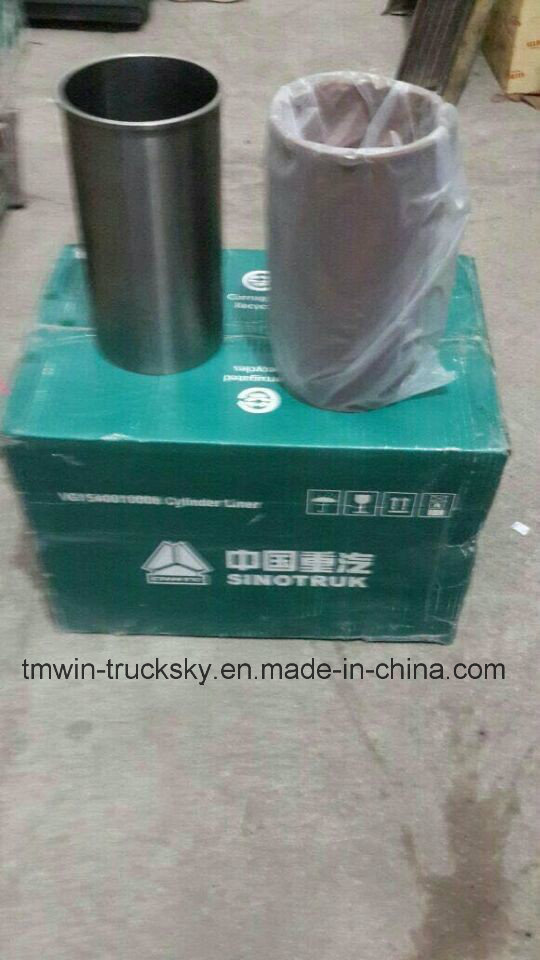

| Prod Model: |
VG1500010344 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
136*241mm |
| Engine: |
Wd615 |
| Displacement: |
9.726 L |
| Bare Mass(Kg): |
1 |
Product Description
| Model | WD615.62 | WD615.87 | WD615.69 | WD615.47 |
| Type | 6-cylinder in line,4-stroke,water-cooled,turbocharged,air-to-air intercooled,direct injection |
| Lgnition sequence charged | 1-5-3-6-2-4 |
| Valve/cyl | 2 |
| Distance between cylinder core(mm) | 16 |
| Bore & stroke(mm) | 136*241mm |
| Displacement(L) | 9.726 |
| Compression ratio | 17:01 |
| Rated power kw(ps) | 196(266) | 213(290) | 247(336) | 273(371) |
| Rated speed(r/min) | 2200 |
| Max torque(N.m) | 1100 | 1160 | 1350 | 1500 |
| Speed at Max torque(r/min) | 1100-1600 |
| Idling speed(r/min) | 600±50 |
| Specific fuel consumption(g/kw.h) | ≤193 |
| 1m Noise db(A) | ≤98 |
| Bare mass(kg) | 850 |
| Emission | EuroII |
Howo WD615 engine parts
Crankshaft made of forged steel, according to the different requirements of strengthening to decide the material,
if the rated power is less than 220kw will use 45# steel, if more than 220kw will use 42CrMo steel. The crankshaft
via a soft nitriding treatment, has good fatigue strength and wear resistance.
Cylinder head high 125mm, containing NiCr made of pearlitic cast iron alloy, One cylinder one cover, Good cooling
effect, Subjected to thermal shock the test, can ensure the safe and reliable.
Connecting rod forging manufacture, the material is 42CrMo. The connecting rod is 219mm in length, head width
46mm.
WD615.62 / WD615.87 diesel engine, EURO 2 emission standard. 6 cylinder in-line with water cooling, turbo-charging & inter-cooling. 4 stroke direct injection diesel engine. Compression ratio: 17:1. Full load fuel consumption: 193g/kwh; Rated revolution: 2200RPM. Engine net weight: 850KG
