| Prod Model: |
JS1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
Cold Punching |
| Forging Forming Method: |
Mold Forging |

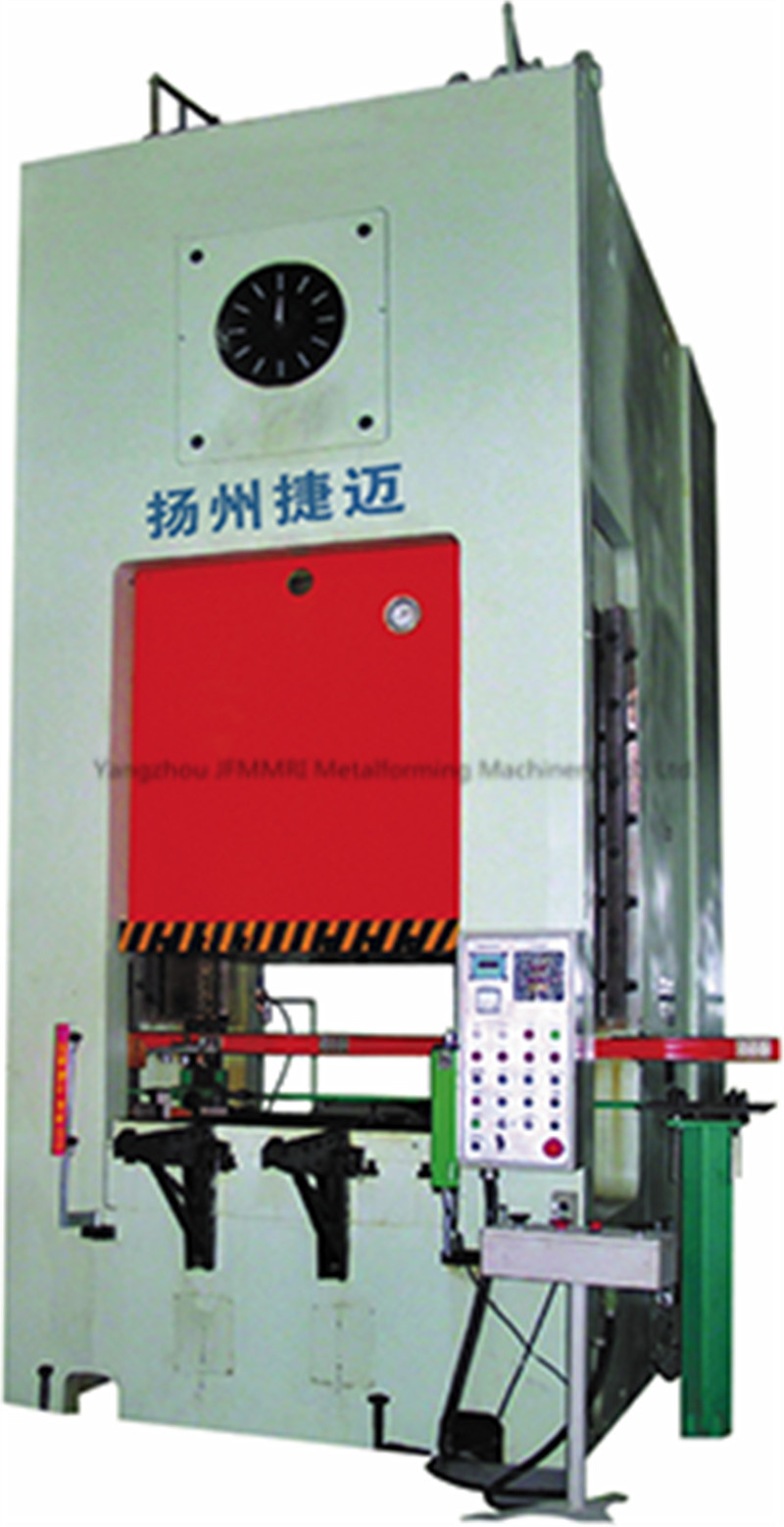

Product Description
Fit for many kinds of cold punching press process of sheet metal's punching, forming, bending, straightening, drawing and sizing.
Steel-welded frame, excellently designed and finite element analyzed by computer to ensure the body's high rigidity and reliability.
Multi-connecting rod mechanism, approach work piece in low speed, and return in quick speed.
Main drive gear immersed in a closed oil tank, running smoothly with low noise.
Adopt step-by-step oil allotter to ensure lubricate in timing and rationing automatically.
Quick die-change equipment, photoelectric protector and other optional accessories are available for the press according to the user's need.
| Items | Unit | JS1-300 | JS1-500 | JS1-600 |
| Nominal capacity | KN | 3000 | 5000 | 6000 |
| Nominal pressure stroke | mm | 6 | 8 | 10 |
| Strokes of slide | mm | 280 | 300 | 320 |
| Strokes per minute | spm | 35 | 30 | 25 |
| Max. die height | mm | 570 | 650 | 680 |
| Shut height adjustment | mm | 120 | 120 | 120 |
| ( L-R× F-B)Size of table | mm | 1000×900 | 1200×1100 | 1300×1200 |
| ( L-R× F-B)Bottom size of slide | mm | 1000×985 | 1200×1215 | 1300×1315 |
| Thickness of bolster | mm | 180 | 200 | 220 |
| Air pressure | MPa | 0.55 | 0.55 | 0.55 |
| Power of Main Motor | KW | 30 | 45 | 55 |
| Total weight | T | 30 | 42 | 55 |

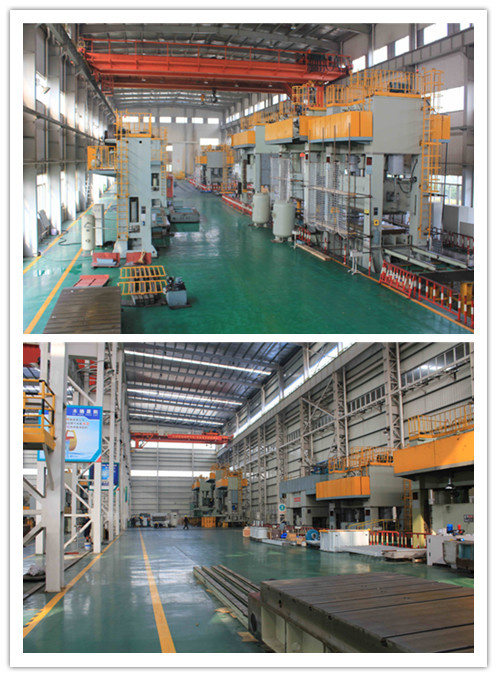

Workshop:

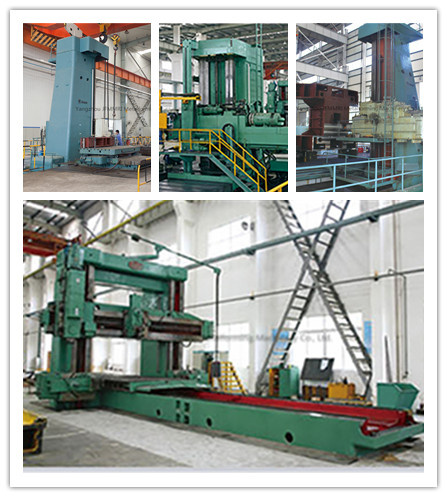

Processing equipment:

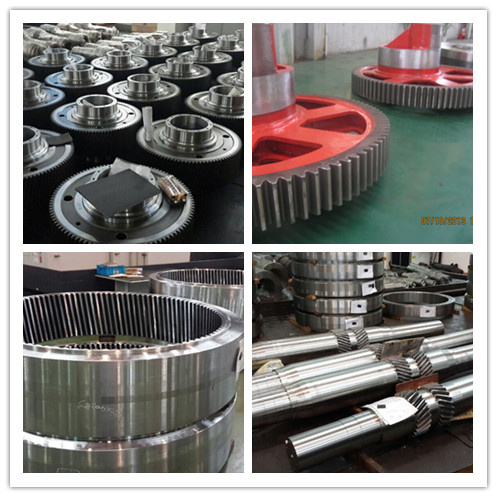

Main spareparts:
FAQ 1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM/ODM manufacturer factory with export license. We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.
2. Question : Why choose cooperate with us ? Answer : -- Right people, Right product, Right price ;
-- Company-wide customer awareness ;
-- Reliable Quality and All components from world leading suppliers ;
-- Cost-effective export infrastructure and total supply chain management ;
3. Question : Where is your factory located ? How can I visit there ?
Answer: With an ISO90001 certified factory located in Yangzhou city , Jiangsu Province , P.R. China . It takes about 2 hours from SHANGHAI by train. It is very pleasure for clients to visit us.
4. Question : Can you do OEM ? Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
5. Question : How does your factory do regarding quality control ? Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.
Yangzhou JFMMRI Metalforming Machinery Co., Ltd. is located in the beautiful Hanjiang Economic Development Zone of Yangzhou. We are a new modern enterprise invested by Jinan Foundry and Metal Forming Machinery Research Institute and Yangzhou Metalforming Machine Group Co., Ltd.
Our company produces a variety of straight-side mechanical presses of less than 1250 tons with one, two or four points for current or special use, and all kinds of hydraulic machines of below 3000 tons for current or special use, and related automated production lines. The technologies of our products have reached advanced level. All our products are applied extensively in many fields, such as automobile, agricultural vehicle, light industry, home appliance, building material, military industry, and shipping. We can satisfy users completely in different level.
Using the peculiar advantages in design, development, debugging and machining in forging and stamping industry, we innovate continuously on the existing foundation of sale and service network, to offer optimum manufacture in the lowest price to the market and finally realize the benefits for both sides of supply and demand. Our company has always paid great attention to technical innovation since our company was set up in 2002, and we have R&D center and have developed more than 120 items of new products successfully. Our products have maintained continuous increase in sale, output, profit tax and market share, and especially are appreciated by foreign investment companies and domestic capital enterprises.
Our staff will adhere to the pursuit of "exceeding ourselves", and persist in implementing the management concept of "developing new products to survive, expanding the market for success, reinforcing the foundation for the development, and innovating the management for the efficiency", to build the brand of "Yangzhou JFMMRI". We are willing to work together with all colleagues and friends to improve your machinery equipment level. Taking the industrial revitalization of nation as our responsibility, we strive to improve the overall quality of the enterprise, and provide high quality products and services for our new and old customers.
