SL-343b 3-Roller Bending Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
SL-343B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forging Forming Method: |
Free Forging |
Product Description

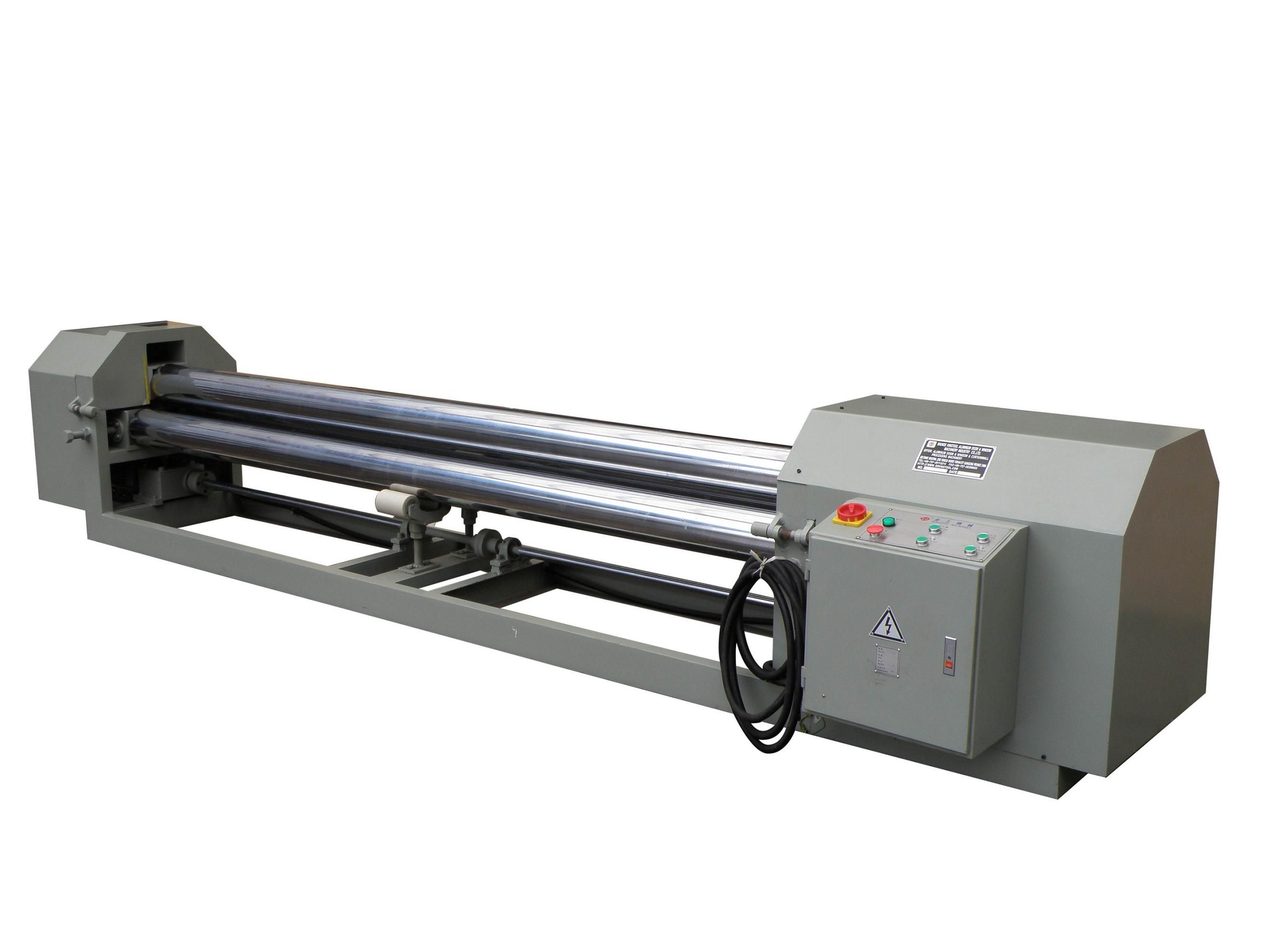

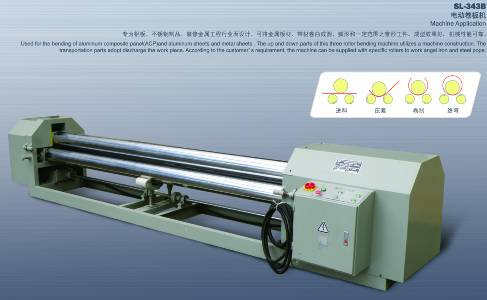

Model Name: SL-343B 3-Roller Bending Machine

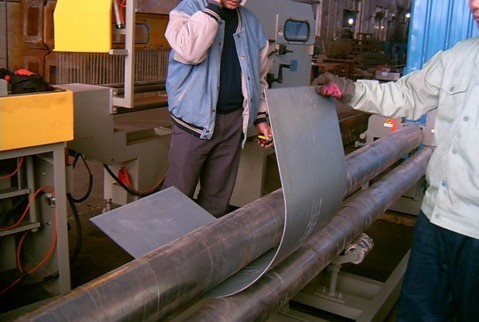

Used for the bending of aluminum composite panel(ACP) and aluminum sheets and metal sheets. The up and down parts of this three roller bending machine utilizes a machine construction. The transportation parts adopt power-driven. The top roller can be moved up and down by the motor to discharge the workpiece. According to the customer's requirement, the machine can be supplied with specific rollers to work angle iron and steel pipe
MAIN TECHINIACAL PARAMETER| 1. | Maximum thickness | 4mm(iron)/6mm(aluminum) |
| 2. | Maximum width | 3000mm |
| 3. | Yield limit | 240Mpa |
| 4. | Minimum diameter full capacity | 380mm |
| 5. | Top roller diameter | 180mm |
| 6. | Bottom roller diameter | 150mm |
| 7. | Motor power | 5Kw |
| 8. | Packing dimension (motor) | 4000×860×9500mm |
| 9. | Weight | 1500Kg |
