| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Flow Range: |
5~600 M3/H |
| Head Range: |
200~2000m |
| Speed: |
2980 R/Min |
| Temperature: |
-80~180 |
| Design Pressure: |
25mpa(Max) |
| Power: |
Electric |
| Structure: |
Multistage Pump |
| Theory: |
Centrifugal Pump |
| Application: |
Chemical Pump |
Product Description
Outline

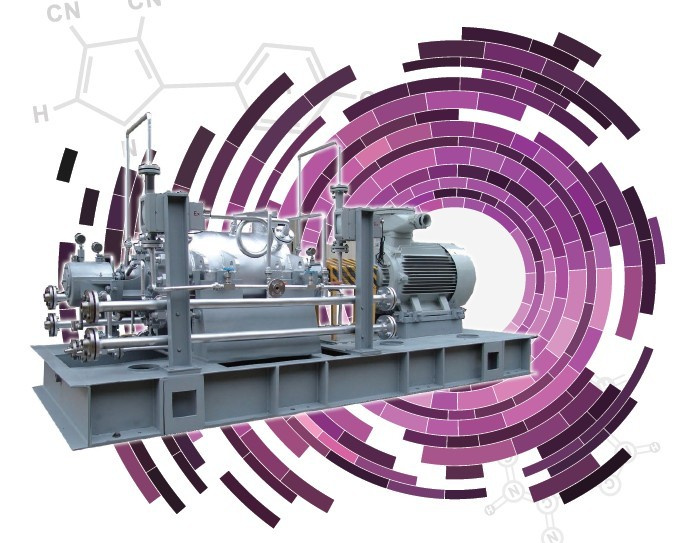

SLDT type pump is, according to API610 eleventh edition of the "oil, chemical and gas industry with centrifugal pump" standard design of single shell, sectional horizonta l multi-stag e centrifugal pump, horizontal center linesupport.
SLDT for single shell structure, bearing parts can be made by casting or forging of two kinds of methods for manufacturing.
SLDT bearing is rolling bearing or sliding bearing on both ends of the pump, lubrication method for self lubricating or forced lubrication. Forced lubrication bearing on the body can set temperature and pressure monitoring instrumen t as required. Axial force of pump by the drum-plate-the balancing device, the device can effectively control theruntime flash phenomenon. The residual axial force thrust bearing.
Pump seal system according to API682 the centrifugal pump and the rotary pump shaft seal system design, all kinds of sealing and flushing can be configured, cooling scheme, also can be designed according to the customer's requirements.
Pump is directly driven by motor through coupling, coupling of fold type flexible coupling, demolish the middle section on the drive end bearing and seal maintenance.
Viewed from the driving end, pump makes clockwise rotation.
Range of application
Mainly used in oil refining, petrochemical and chemical industry, oil, refined oil, liquefied petroleum gas, light hydrocarbon and flammable and explosive, poisonous high pressure material. Typical working conditions for the refinery heavy oil hydrogenation feed pump, steel mills focal phosphorus removal equipment, the high pressure decoking pumps and power plants with high pressure boiler feed pump.
Shanghai Liancheng (Group) Co., Ltd.Was founded in 1973, it has four industrial parks in Shanghai's Fengbang, Jiangqiao, Chongming and Zhejiang's Wenzhou, covering a total area of 210 thousand square meters.The group has developed over 1, 000 types of products, ranging from pump series, variable frequency control series, soft start cabinet, valve, electric machine and the series of complete set of water supply equipment.The products are widely used in the filed of city planning, water conservancy, architecture, fire protection, electric power, environment protection, petroleum, chemical industry, mining and medicine.In 2005, the group's sales revenue totaled 720 million Yuan.The group more than 1, 600 staff members, providing professional technical support and outstanding marketing services for clients.
