| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Alloy Steel |
| Type: |
Welding Flange |
| Standard: |
ANSI |
Product Description

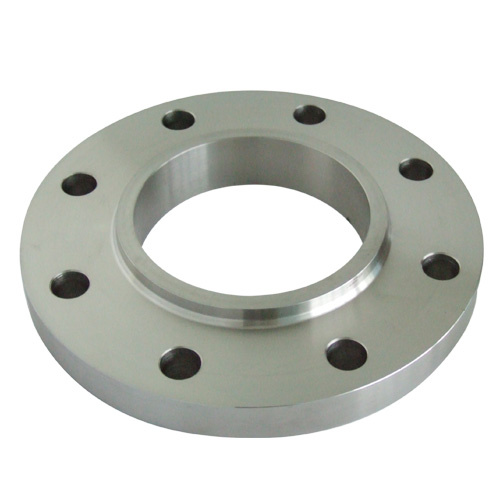

Slip-On
SLIP-ON FLANGES continue to be preferred to welding neck flanges by many users on account of their initially lower cost, the reduced accuracy required in cutting the pipe to length, and the somewhat greater ease of alignment of the assembly; however their final installed cost is probably not much, if any, less than that of welding neck flanges. Their calculated strength under internal pressure is approximately two-thirds that of welding neck flanges, and their life under fatigue is about one-third that of the latter. For these reasons, slip-on flanges are limited to sizes? " to 2? " in the 1500 lb standard and are not shown in the 2500lb standard.
Standard: ANSI B16.5, ANSI B16.47 Series A & B, ANSI B16.48, API 605,
API 16D, API 17D, BS4504, BS3293, DN, AS, JIS
Material:
Alloy Steel: ASTM A182 F1, F5/a, F9, F11, F12, F22, F91
Size: 1/2"-84"
Types of Flanges Available: Weldnecks, Slip-Ons, Threaded, Blind,
Socketweld, Lap-Joint, Orifice, Reducing Flange and Specials.
Types of Flange Faces: Raised Face, Flat-Face, Ring Joint, Tongue &
Groove, and Male & Female.
Dingxiang CHN Flange Forging Co., Ltd. is located in the State Dingxiang named"hometown of forging", founded in 2006 invested by TianYuan(HK) International Limited be specialized in manufacturing various kinds of high quality flange and other forging.
Being a designer and manufacturer of flange and forgings in the industry. We provide both standard and customized designs in a large range of different pipeline system. Our main products include Welding Neck, Slip-on, SocketWelding, Threaded, Binld according to ANSI, DIN, JIS, EN, made of ASTM A105, A350, A694, A182, ect. Our engineers are able to design the right products to fit your application and the best solution for your requirements. The products have been wildely used in the industries of petroleum, chemical, foodstuff, metallurgy, construction, electric power and so on.
We have a 4, 000tons Hydraulic Machine and 6300 Ring Rolling Machine operating flange&ring production, the maximum outside diameter is up to 6000mm, maximum gross weight up to 6tons. Our annual production capacity of Flange is 5000tons;
We do a whole set of chemical and mechanical performance test, metallurgical structure, hardness test, NDE test, salt-fog test, film thickness test, roughness test, and the lowest temperature of impact test can be -196 degree C.
We treat Quality, Customer, Market, Upgrade as the most important.
