Slurry Centrifugal Pump Series Ah From Chinese Company Np
| Price: |
US $ 5639set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
T/T |
| Prod Model: |
AH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Paiting: |
Different Colour |
| Impeller Number: |
Single-Stage Pump |
| Working Pressure: |
High Pressure Pump |
| Influent Type Of Impeller: |
Single Suction Pump |
| Position Of Pump Shaft: |
Horizontal Pump |
Product Description
DESCRIPTION:
Naipu® NP-AH(R) series centrifugal slurry pumps and spare parts can fully interchange with world famous brand. These pumps are of heavy-duty construction, designed for continuous pumping of highly abrasive and corrosive slurries. They feature a wide choice of replaceable abrasion resistant metal or moulded elastomer casting liners and Impellers, which are all interchangeable within a common casting assembly.
Typical Applications---
Minerals Flotation Processing
Electric Factory Coal Preparation
Coal Washing
Chemical Medium Processing
Effluent Handling
Sand And Gravel Handling
Key words: "heavy duty slurry pumps", "mining slurry pumps", "Ash Pump"

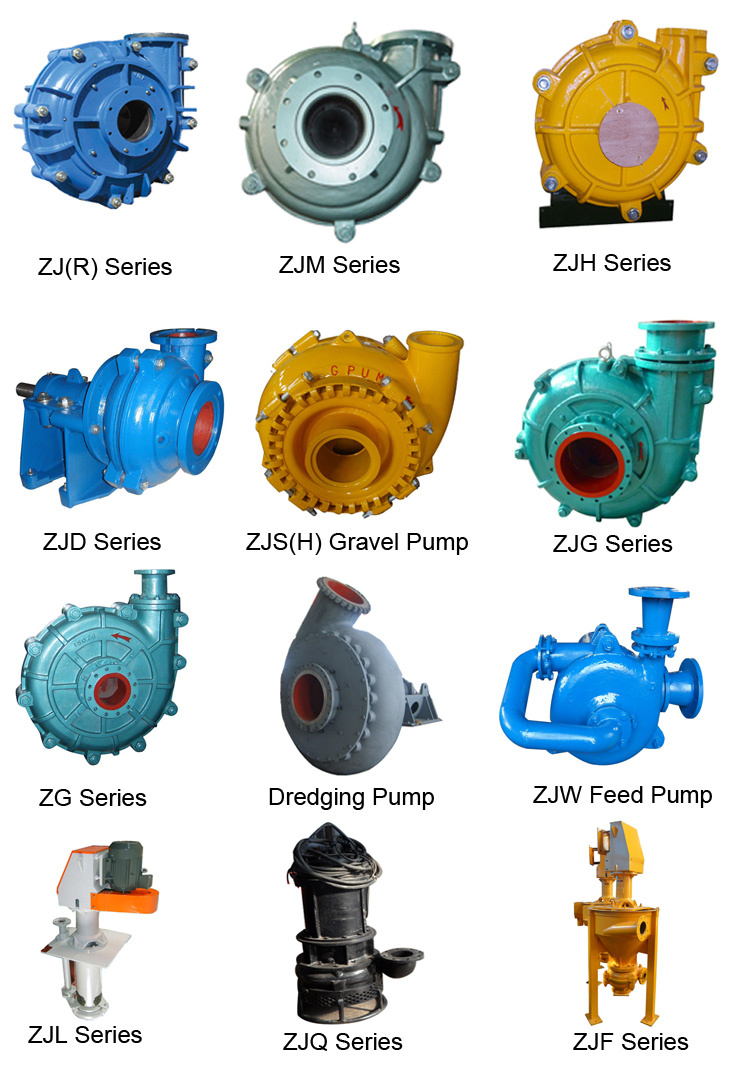

GOODS SHOWING:
| ZJD Low-Abrasive Slurry Pump | Capacity:2.34-7920 m3/h | Chemical Process | 1. Attractive initial cost. |
| Head:6-50m | Heavy Minerals | 2. High speed Operation |
| Discharge:20-550mm | Plant Water Supply | 3. Small Volumes saving floor Area |
| Power: Motor/Diesel | Thickener Overflow | 4. Gland Seal And Centrifugal Seal |
| Material: High Chrome/ Rubber | Paper and Pulp |
|
| Drive Type: ZVZ/CRZ/CV/DC | Slag Granulation |
|
|
|
|
| ZJS(H) Gravel Pump | Capacity:36-2232m3/h | Slag Granulation | 1.Single Casing, Wide Wet Passage |
| Head:6-77m | Suction Hopper Dredging | 2.designed for continuous pumping of extremely aggressive slurries |
| Discharge:4-14inch | Dredging | 3.Easy Installation and operation, |
| Power: Motor/Diesel | Barge Loading | 4.Good performance of NPSH And Abrasion-resistance |
| Material: High Chrome/NI-Hard | Sand Reclamation | 5.Type ZJSH Pump are of high head ones |
| Drive Type: ZVZ/CRZ/CV/DC | Sugar Beet |
|
|
|
|
| ZJG Slurry Pump | Capacity:15.8-342.3L/S | Handling The Mixture Abrasive Solids | 1.CAD modern design,super hydraulic performance,high efficiency and lower abrasion rate |
| Head:20-100M m | Electric Power | 2.Wide passage, non-clogging and good performance of NPSH; |
| Discharge:65-300mm | Metallurgy | 3. Free of leakage; |
| Power: Motor/Diesel | Mine Coal | 4.Reliability design |
| Material: High Chrome/NI-Hard | Constructional Material | 5.Can be Installed Multistage |
| Drive Type: CRZ | Chemical Industry |
|
| Max Pressure: 3.6Mpa |
|
|
| ZG Slurry Pump | Capacity: 90-2400m3/h | Electric Power | 1.Used international advanced solid-liquid two-phase flow theory |
| Head:6-135mm | Constructional Material | 2.Lower noise and vibration |
| Discharge:40-300mm | Mine Coal | 3.Long service life |
| Power: Motor/Diesel | Coal washing | 4.concentration of weight: 45%(ash) |
| Material: High Chrome | Sand Reclamation | 60%() |
| Drive Type: CRZ/DCZ/ZVZ/CV | Sugar Beet |
|
|
|
|
| WS Dredging Pump | Capacity: 180-25000m3/h | Suction Hopper Dredging | 1.Light weight,good wear-resistant, |
| Head:25-76mm | Constructional Material | Super dredging performance |
| Discharge:100-1000mm | Sand gravel processing | 2. Suited for the dredge on the whole construction ,high multiple economy benefits and so on . |
| Power: Motor/Diesel | Barge Loading | 3. It throughout meets requirements of the dredge to dredging pumps |
| Material: High Chrome | Sand Reclamation |
|
| Drive Type: DCZ | Dredging and damming of the river and sea |
|
|
|
|
| ZJW Feeding pumps | Capacity: 30-305m3/h | coal washery, | 1.ZJW series filter press feeding pump accept unique hydraulic design and installation mode of the impeller |
| Head:43.5-91.8mm | environmental protection, | 2.Use in the filter press feed |
| Discharge:50-125mm | aluminum factory, | 3. large capacity, low pressure feeding |
| Power: Motor | smelting plant etc. | and low capacity,high pressure filter. |
| Material: High Chrome |
|
|
| Drive Type: DC |
|
|
|
|
|
| ZJL(R) Vertical Slurry Pump | Capacity: 5.4-247.5L/S | Sump drainage washdown | 1.Vertical, centrifugal slurry pumps submerged in sump to work. |
| Head:4.5-37m | Floor drainage | 2.No need of any shaft seal and sealing water. |
| Discharge:40-200mm | Mill sumps | 3.Can also be operated normally for insufficient suction duties |
| Power: Motor | Carbon transfer |
|
| Material: High Chrome/Rubber | Monitoring |
|
| Drive Type: DC/BD | Magnetite mixing |
|
|
|
|
| ZJQ submersible Slurry pump | Capacity: 25-2000M3/H | Delivering Liquid Sand, | 1.The pump adopts excellent material, advanced structure, and it is with wide flowing passage & strong delivery ability. |
| Head:12-60m | Coal Cinder Solid | 2.The hydraulic parts are wear-resistant. |
| Discharge:80-400mm | Clearing The Mud In Lake, River, Sea |
|
| Power: Motor | Dredging Widening Channel |
|
| Material: Hard Metal |
|
|
|
|
|
| ZJF froth Pump | Capacity: 7.2-330 M3/H | Minerals Flotation Processing | 1.Designed for continuous pumping of highly abrasive and corrosive frothy slurries |
| Head:5-30m | Handle Frothy Slurries | 2.They have a vertical shaft configuration, and comprise a hopper, with vertical Bearing Assembly, |
| Discharge:50-150mm |
|
|
| Power: Motor |
|
|
| Material:High Chrome/rubber |
|
|
|
|
|
Shijiazhuang Naipu Pump Co., Ltd is a professional manufacturing enterprise of slurry pumps located in high and new technology development zone. The enterprise has one group of high quality technical and management talent working in Design, R & D, Production, Sales and Services. The technical team consists of talents specialized in hydraulic machinery, casting, heat treatment, engineering, material science and machining.
The company manufactures its products using advanced technique based on well built management and sales & service system. Product quality is guaranteed with various test and inspection facilities...
Naipu is specialized in the manufacture and sales of slurry pump and pump parts, especially the design and manufacture of products made with high abrasive, anti corrosive rubber material, including NP-AH(R). NP-M. NP-HH. NP-SP(R). NP-G series slurry pump, NP-ZG. NP-ZJG series slurry pump, NP-WS series dredging pump and NP-PNJ series slurry pump.
The products are widely used in mining, power, metallurgy, coal, dreading, building material and other Industrial lines to pump concentrate, tailings, sludge and other abrasive, high density slurries.
Meeting customers' technical requirements and with a long lifespan, lower cost and high safety, our products are sold well all over of China and far to southeast Asia, Noth America, South America, Russia and etc.
We are confident that we can offer customers satisfying products and services with our continuous efforts in product research and improvement. We look forward to working with customers domestic and abroad to build a promising future.
We can develop and produce a range of pumps according to different media situation to meet different duty requirment.
There are rubber material (R08, R12, R26, R33, R38, R55, S03, S12, S31, S21, S51, S52 U01 and etc), wear resistant metal material( A05, A07, A33, A49, A61 and etc), Corrosion Resistant stainless steel material (201, 304, 316, 316lL and etc ), fully meet customers' request.
We can undertake various OEM orders for pumps as well as spare parts customized according to drawings or samples.
