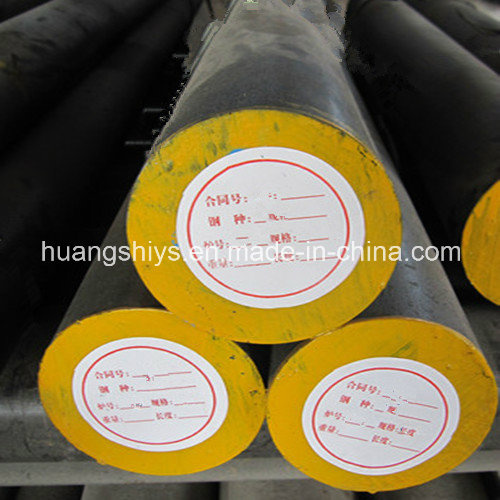

| Prod Model: |
sm45/1.0503/1045/s45c |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heat Treatment: |
Annealed |
| Melting Method: |
Eaf+ESR |
| Process Technique: |
Hot Forged or Rolled |
| Size: |
50-500mm |
| Length: |
2000-5800mm |
| Type: |
Round |
| Standard: |
AISI |
| Technique: |
Forged |
| Special Use: |
Mold Steel |
| Application: |
Tool Steel Bar |
| Surface Treatment: |
Turned Surface |
| Composition: |
Alloy Steel |
| Steel Grade: |
Tool Steel |
| Shape: |
Round |
Product Description
Equivalent Grade
| GB | DIN | NF | SS | JIS | BS | AISI | ISO |
| 45# | 1.0503 | C45 | 1650 | S45C | IC45/080A47 | 1045 | C45E4 |
Chemical Analysis
| NO. | C | Mn | Si | Cr | Cu | Ni | P | S |
| Aisi 1045 | 0.43~0.50 | 0.6~0.9 | 0.10~0.60 |
|
|
| ≤0.40 | ≤ 0.50 |
| DIN1.0503 | 0.42~0.48 | 0.6~0.9 | 0.15~0.35 | ≤0.15 | ≤0.3 | ≤0.2 |
|
|
| JIS S45C | 0.42~0.50 | 0.5~0.8 | ≤0.40 | ≤0.40 |
| ≤ 0.4 |
|
|
| GB45 | 0.42~0.50 | 0.5~0.8 | 0.17~0.37 | ≤0.25 | ≤0.25 | ≤0.3 | ≤0.035 | ≤0.035 |
Application
- Carbon steel S45C Used for making die-board,general machinery parts.
- Component parts for vehicles, shafts, bushings, crankshafts, connecting rods and parts for the machine building industry and steel for axes, knives, hammers etc.
Merchnical properties
| Annealing | Forging | Tempering and Hardening | Normalization |
Subcritical annealing:
650~700
Isothermal annealing:
820~860 | 1100~850 | Tempering: 550~660
Hardening : 820~860 water | 840~880 |
Heat Treatment
Soft annealing: heat to 550-650°C, cool slowly.
Hardness after annealing: Max. 269HB
Hardening: 820 - 870 °C
Normalizing temperature: 840-870°C
We can produce one hundred kinds of products, including cold work tool steel, hot work tool steel, plastic mould steel and many other alloy tool steel. We are mainly supplying tool steels as below aboard:
AISI: D2, D3, D6, D7, A2, A6, A8, A10, H10, H11, H13, H21, S1, S5, S7, O1, O6;
DIN: 1.2080, 1.2316, 1.2343, 1.2344, 1.2379, 1.2510, 1.2601, 1.2713, 1.2714, 1.2767, 1.2842;
JIS: SKD1, SKD11, SKD61, DC53;
GB: Cr12, Cr12MoV, Cr12Mo1V1, 6CrW2Si, 4Cr5MoSiV, 4Cr5MoSiV1, 3Cr2W8V,;
We can offer Casting Steel against your detailed drawings. We mainly manufacture cylinder, parts of vessel such as anchor, anchor bolt, shackle, and other different kinds of valves, flanges, fittings, couplings.
Huangshi Young Sea Industry And Trade Co., Ltd. is located in Huangshi City, Hubei Province, construction in 2009 years. We offer Machining components to Huangshi Tri-Ring Forging Machine Co., Ltd. And Hubei Xinyegang Steel Auto Parts Co., Ltd.
We are also the tool steel and casting steel distributor & exporter in Huangshi China. And we are the exporting company of the factory:
Huangshi Shengda Mould Material Co., Ltd. The equipments of our factory are:
1. Two medium-frequency induction furnaces ( capacity 3.5 ton each);
2. Six forging hammers: One for 1.0 ton, one for 1.5 ton, one for 2.0 ton, one for 3.0 ton, one for 6.0 ton, one for 8.0 ton;
3. Four annealing furnaces: Two furnaces for 20.0 ton, two furnaces for 30.0 ton;
4. Three peeling machines;
5. One planomiller (4000*1000), One horizontal drilling machine and boring lathe.
We can produce one hundred kinds of products, including cold work tool steel, hot work tool steel, plastic mould steel and many other alloy tool steel. We are mainly supplying tool steels as below aboard:
AISI: D2, D3, D6, D7, A2, A6, A8, A10, H10, H11, H13, H21, S1, S5, S7, O1, O6;
DIN: 1.2080, 1.2316, 1.2343, 1.2344, 1.2379, 1.2510, 1.2601, 1.2713, 1.2714, 1.2767, 1.2842;
JIS: SKD1, SKD11, SKD61, SKS11, SKS41, DC53, NAK80;
GB: Cr12, Cr12MOV, Cr12Mo1V1, 6CrW2Si, 4Cr5MoSiV, 4Cr5MoSiV1, 3Cr2W8V, 2Cr13Ni2
We can offer Casting Steel against your detailed drawings. We mainly manufacture cylinder, parts of vessel such as anchor, anchor bolt, shackle, and other different kinds of valves, flanges, fittings, couplings.
Young Sea Industry's Mission:
Find right product to satisfy what customer need.
Optimize and control to adapt the discrepancy between our factory and purchaser.
Enhance the customer's advantage
We could accept the order base on your modified chemical composition, size and required manufacturing process. Welcome to Young Sea
