Small Horizontal Continuous Casting Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
HCCM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Raw Materials: |
Copper ,Brass,Bronze |
| Frequency: |
50Hz or 60Hz |
| Voltage: |
220V,380V,360V,400V,415V,440V,460V etc,. |
| Phase: |
3-Phase |
| Power: |
90kw~1000kw |
| The Diameters: |
10mm~200mm |
| Temperature: |
1250 C |
| Output: |
500kg~10ton |
| Casting Form Material: |
Graphite |
| Casting Form Usage Count: |
Permanent |
| Casting Method: |
Continuous Casting |
| Casting Metal: |
Brass ,Copper ,Bronze |
Product Description

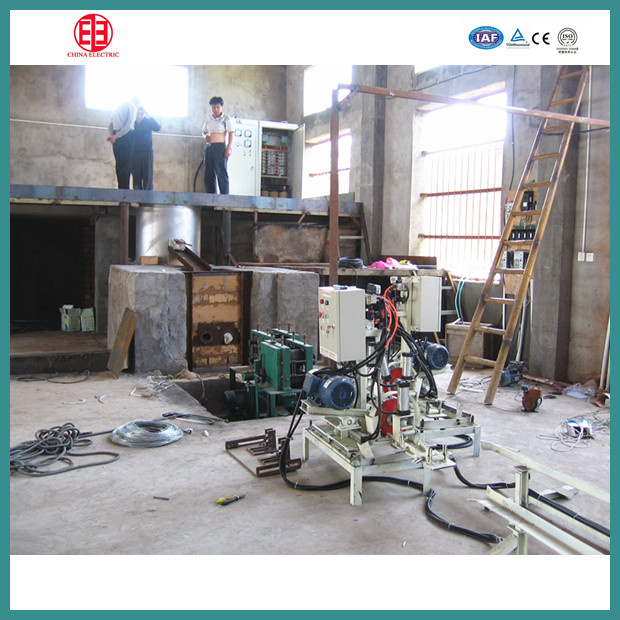

Horizontal continuous casting machine
Product Description:
The horizontal continuous casting machine is mainly used for brass bar,brass tube making.The materials can be pure brass,bronze ,scrap brass/bronze and other brass,bronze materials.
Main composed parts :
1.Induction furnace
2. Traction machine
3. Automatic cutting machine
4. peeling machine(barking machine)
5. Electric control system
6.Water cooling system
7. Dust removal equipment.
Technical parameters:
Model |
GYT
-0.15T |
GYT
-0.30T |
GYT
-0.50T |
GYT
-0.75T |
GYT
-1.0T |
GYT
-1.5T |
GYT
-3.0T |
Rated capacity (T) |
0.5 |
0.8 |
1.5 |
1.8 |
2 |
2.5 |
5 |
Rated power (KW) |
45 |
75 |
120 |
185 |
240 |
400 |
600 |
Rated voltage (V) |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
Rated frequency (Hz) |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
Phase no. |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
Rated temperature (oC) |
1200 |
1200 |
1200 |
1200 |
1200 |
1200 |
1200 |
Melting rate (T/h) |
0.15 |
0.3 |
0.5 |
0.75 |
1 |
1.5 |
3 |
Electricity consumption (KW·h/t) |
320 |
310 |
300 |
290 |
290 |
280 |
280 |
Transformer capacity (KVA) |
80 |
100 |
150 |
200 |
250 |
500 |
800 |
Packaging:plywood cases or nude
